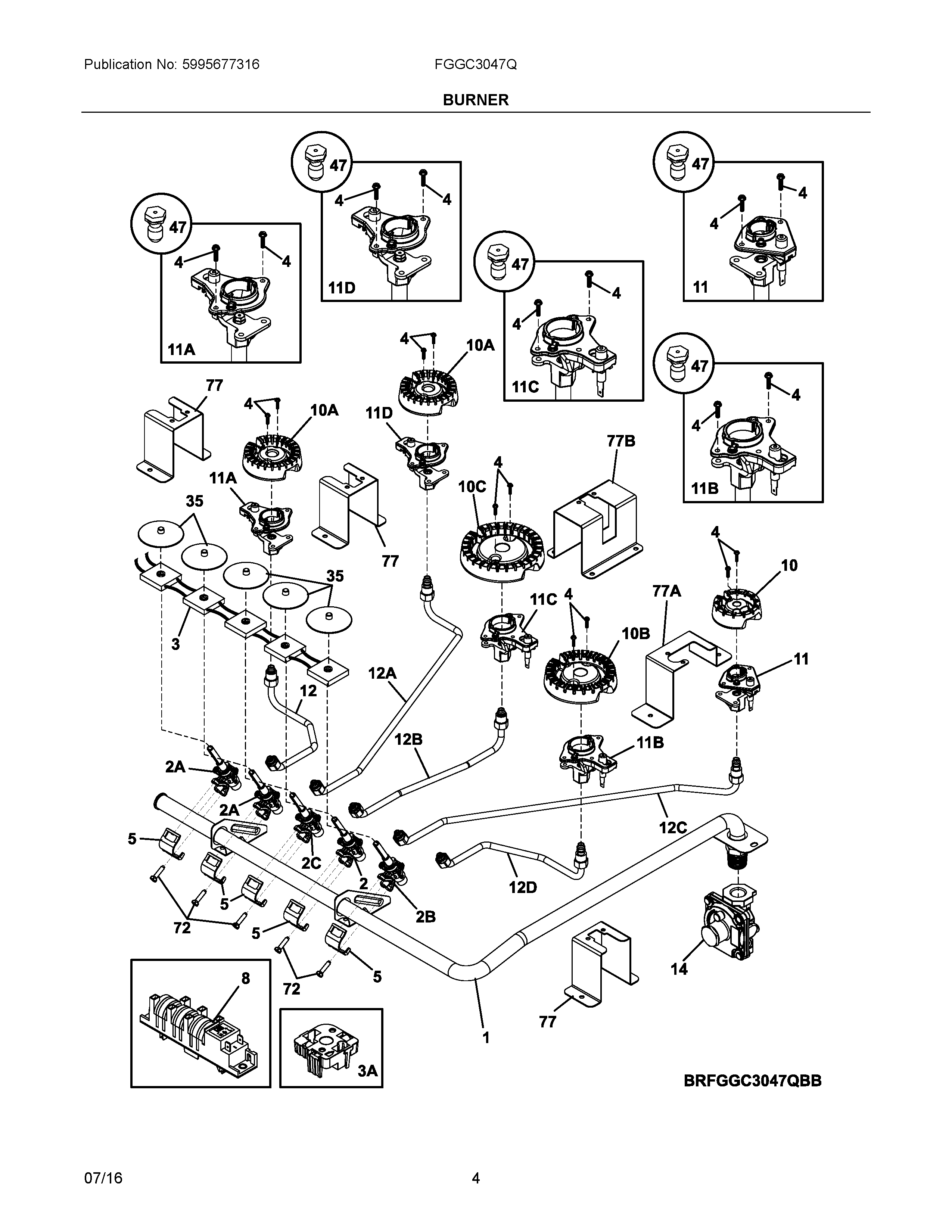

FGGC3047QWB 03 – BURNER

FGGC3047QWB 03 – BURNER

Written by

in

FGGC3047QWB 03 – BURNER

Products

PositionProduct
NI305309701 Frigidaire Oven Screw
NIAWCI 318199780
NI305338602 Frigidaire Screw
1WCI 5304505687
25304505693 Frigidaire Oven Surface Burner Valve
2C5304505692 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
2A5304505690 Frigidaire Oven Valve
3A5304505694 Frigidaire Oven Adapter
3305595107 Frigidaire Assembly Switch
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
8SPARK MODULE
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
11A5304498787 Frigidaire Igniter Assembly/Orifice
11DWCI 5304499396
115304498786 Frigidaire Igniter/Orifice Assembly
11B5304498788 Frigidaire Igniter/Orifice Assembly
11CWCI 5304499339
12B5304529984 Frigidaire Tube
125304532159 Frigidaire Tube
12D5304521187 Frigidaire Oven Tube
12A5304532033 Frigidaire Tube
12C5304531763 Frigidaire Tube
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
475304505703 Frigidaire Lp Conversion Kit
72305517500 Frigidaire Screw
77B5304498888 Frigidaire Bracket
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
