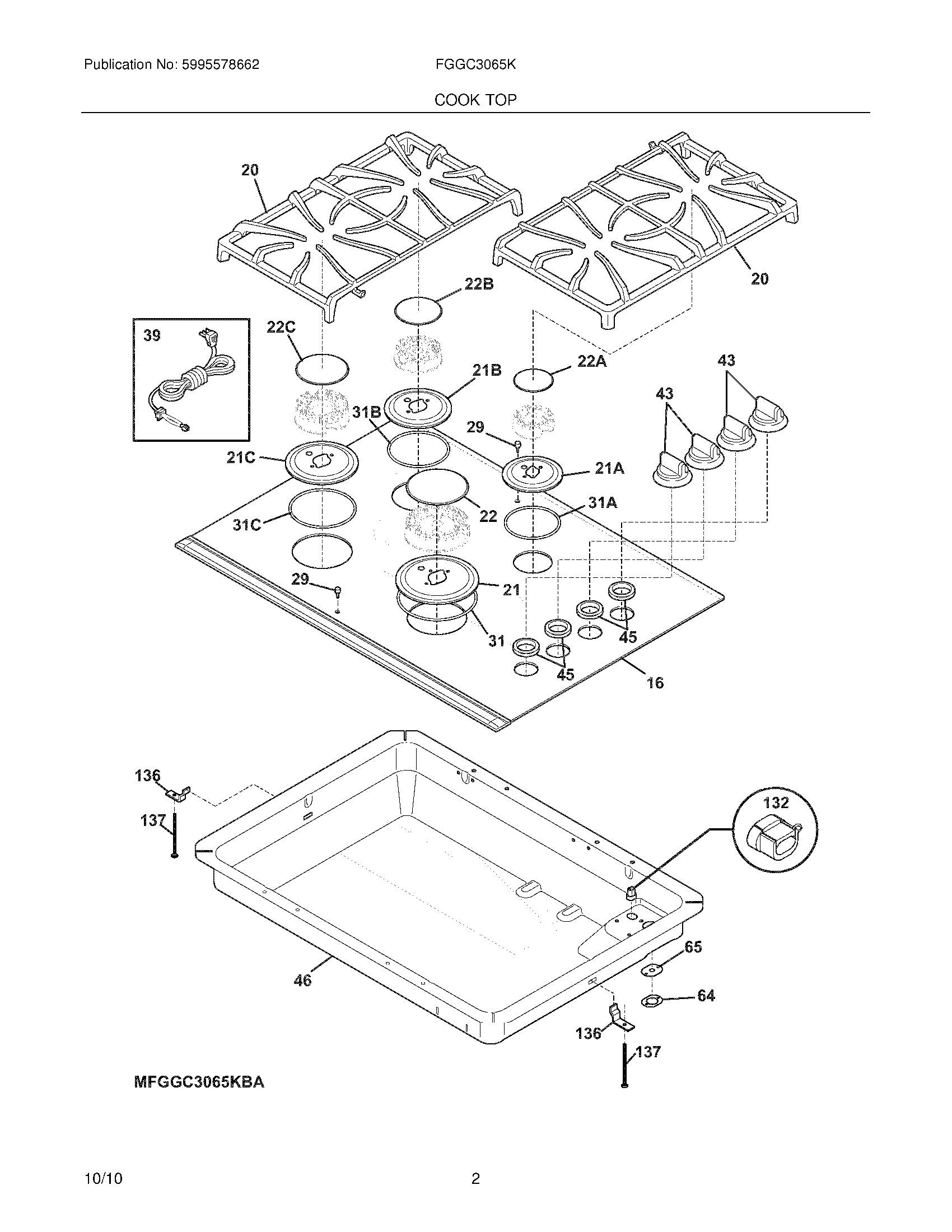

FGGC3065KBB 03 – MAINTOP

Products

Position	Product
NI	5304485759 Frigidaire Refrigerator Tape
NI	5303323140 Frigidaire Oven Screw
NI	5303307980 Frigidaire Oven Screw
NI	5305511218 Frigidaire Ceramabryte C12 18O
16	WCI 318574600
20	GRATE, BURNER, BLACK, (2)
21	SKIRT, 17K BURNER, BLACK
21B	318293007 Frigidaire Oven Skirt Assembly
21A	318293107 Frigidaire Oven Skirt
21C	SKIRT, 12K BURNER, BLACK
22C	5304508510 Frigidaire Surface Burner Cap
22	5304508468 Frigidaire Oven Cap
22A	CAP
22B	5304508442 Frigidaire Oven Surface Burner Cap
29	LOCATOR, GRATE, RUBBER, (4)
31B	316242001 Frigidaire Oven Burner Seal 9.5k/12k
31C	316242000 Frigidaire Burner Seal
31A	316242002 Frigidaire Range Burner Seal
31	316242004 Frigidaire Oven Seal
39	WCI 318144006
43	WCI 316564607
45	WCI 318146201
46	BOX, BURNER
64	Bracket,retainer
65	5304506478 Frigidaire Seal
132	5304513507 Frigidaire Bushing Assembly
136	318264301 Frigidaire Oven Support
137	WCI 5303285443
