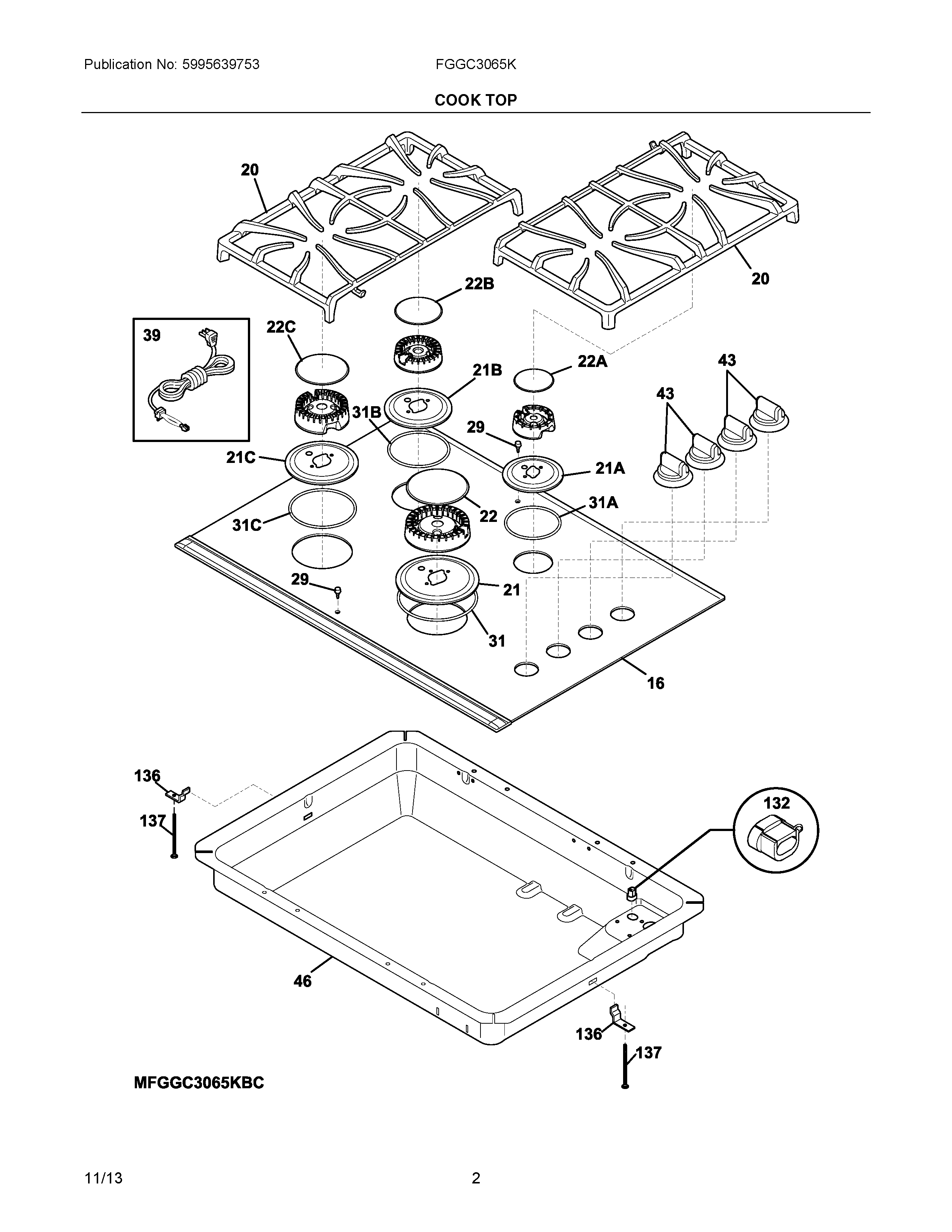

FGGC3065KSC 02 – COOK TOPadmin2025-04-26T08:57:00+00:00FGGC3065KSC 02 – COOK TOP
Products
| Position | Product |
|---|
| NI | 5303323140 Frigidaire Oven Screw |
| NI | 5304485759 Frigidaire Refrigerator Tape |
| NI | WCI 318163602 |
| NI | 5305511218 Frigidaire Ceramabryte C12 18O |
| 16 | MAINTOP ASSEMBLY, GLASS/STEEL, BLACK/STAINLESS, W/FNT-REAR TRIM |
| 20 | GRATE, BURNER, BLACK, (2) |
| 21 | SKIRT, 17K BURNER, BLACK |
| 21C | SKIRT, 12K BURNER, BLACK |
| 21B | 318293007 Frigidaire Oven Skirt Assembly |
| 21A | 318293107 Frigidaire Oven Skirt |
| 22 | 5304508468 Frigidaire Oven Cap |
| 22C | 5304508510 Frigidaire Surface Burner Cap |
| 22A | CAP |
| 22B | 5304508442 Frigidaire Oven Surface Burner Cap |
| 29 | LOCATOR, GRATE, RUBBER, (4) |
| 31C | 316242000 Frigidaire Burner Seal |
| 31A | 316242002 Frigidaire Range Burner Seal |
| 31 | 316242004 Frigidaire Oven Seal |
| 31B | 316242001 Frigidaire Oven Burner Seal 9.5k/12k |
| 39 | WCI 318144006 |
| 43 | WCI 316564625 |
| 46 | BOX, BURNER |
| 132 | 5304513507 Frigidaire Bushing Assembly |
| 136 | 318264301 Frigidaire Oven Support |
| 137 | WCI 5303323138 |
