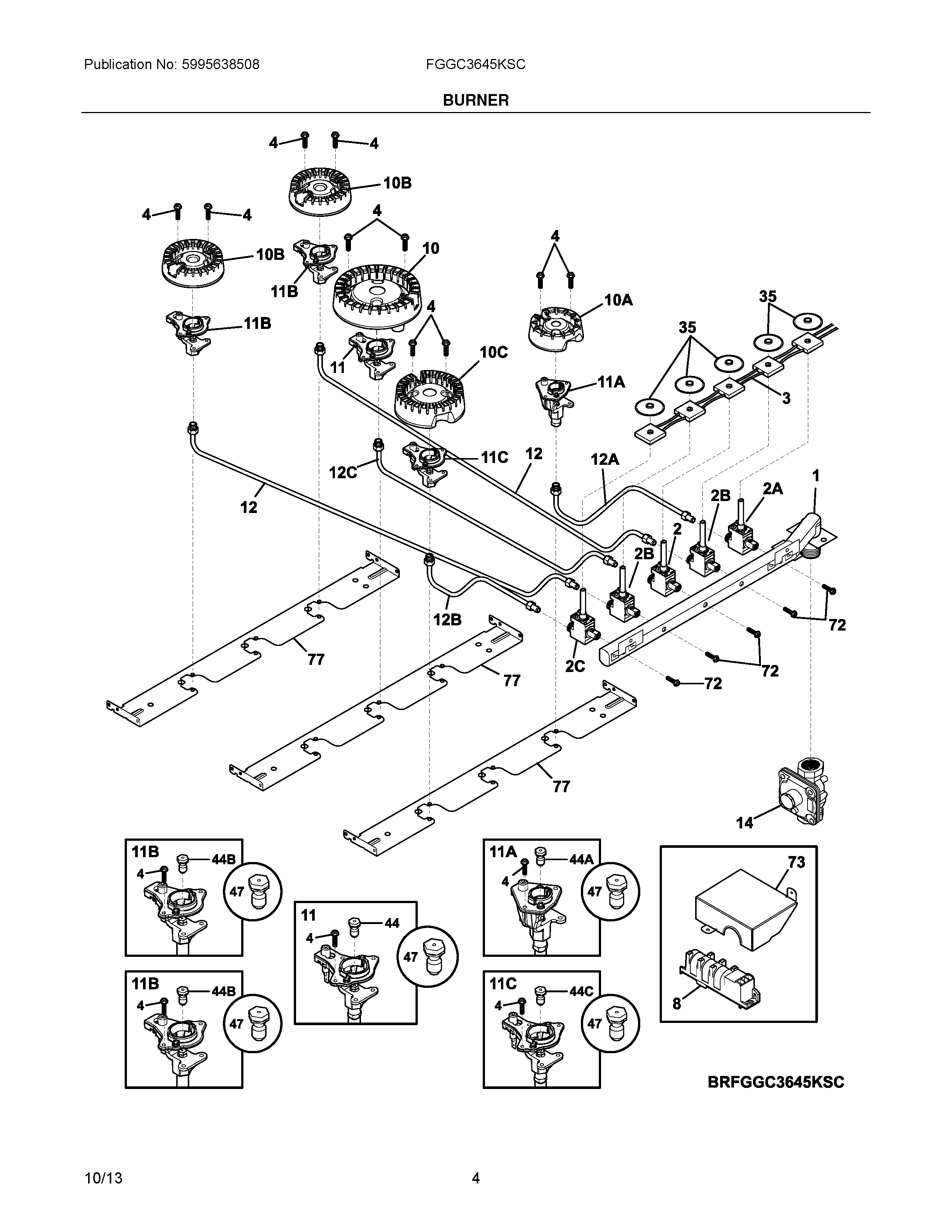

FGGC3645KSC 03 – BURNER

FGGC3645KSC 03 – BURNER

Written by

in

FGGC3645KSC 03 – BURNER

Products

PositionProduct
NI5303211311 Frigidaire Refrigerator Screw
NI5303323140 Frigidaire Oven Screw
NI5303307980 Frigidaire Oven Screw
NIWCI 318199780
NI5300803416 Frigidaire Dishwasher Screw
1WCI 318177016
2316271304 Frigidaire Valve
2B316271301 Frigidaire Oven Valve
2C316271302 Frigidaire Oven Valve
2A316271305 Frigidaire Oven Valve
3WCI 807210901
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10C316438000 Frigidaire Sealed Burner 12K Assembly
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
11B316540700 Frigidaire Igniter/Orifice Assembly
11316543203 Frigidaire Igniter Orifice Assembly
11C316540702 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
12CWCI 318560714
12BWCI 318560713
12AWCI 318560712
12WCI 318560710
14WCI 318122717
35807164301 Frigidaire Oven Bushing
44316527509 Frigidaire Oven 18.2K Burner Orifice
44A316527504 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
44C316527502 Frigidaire Oven Orifice
47WCI 318565401
72316215600 Frigidaire Oven Screw
73WCI 318024209
77WCI 318564100
