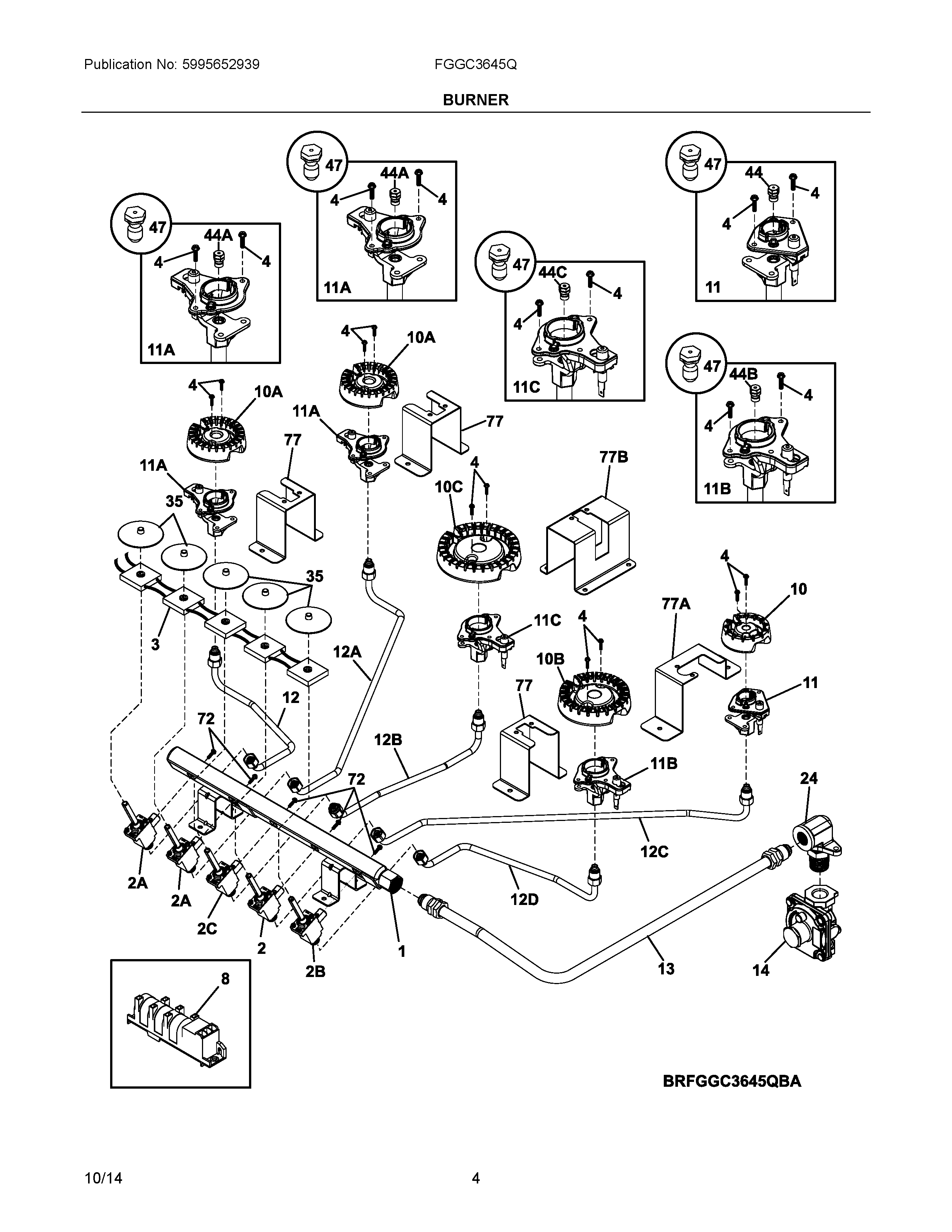

FGGC3645QBA 03 – BURNER

FGGC3645QBA 03 – BURNER

Written by

in

FGGC3645QBA 03 – BURNER

Products

PositionProduct
NI305309701 Frigidaire Oven Screw
NIAWCI 318199780
NI305338602 Frigidaire Screw
1WCI 5304498880
2A316536000 Frigidaire Top Burner Valve
2C316560902 Frigidaire Oven Valve
2WCI 316536009
2B316536001 Frigidaire Oven Valve
3305595107 Frigidaire Assembly Switch
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10C316438400 Frigidaire Range Sealed Burner, 16/17K
11CWCI 5304499339
125304520943 Frigidaire Tube
12D5304532994 Frigidaire Tube
12C5304520940 Frigidaire Tube
12B5304529984 Frigidaire Tube
12A5304520942 Frigidaire Tube
13WCI 5304498886
145304519943 Frigidaire Regulator
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
445304498786 Frigidaire Igniter/Orifice Assembly
44A5304498787 Frigidaire Igniter Assembly/Orifice
44B5304498788 Frigidaire Igniter/Orifice Assembly
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
77A5304523447 Frigidaire Bracket
77B5304498888 Frigidaire Bracket
775304498799 Frigidaire Bracket
