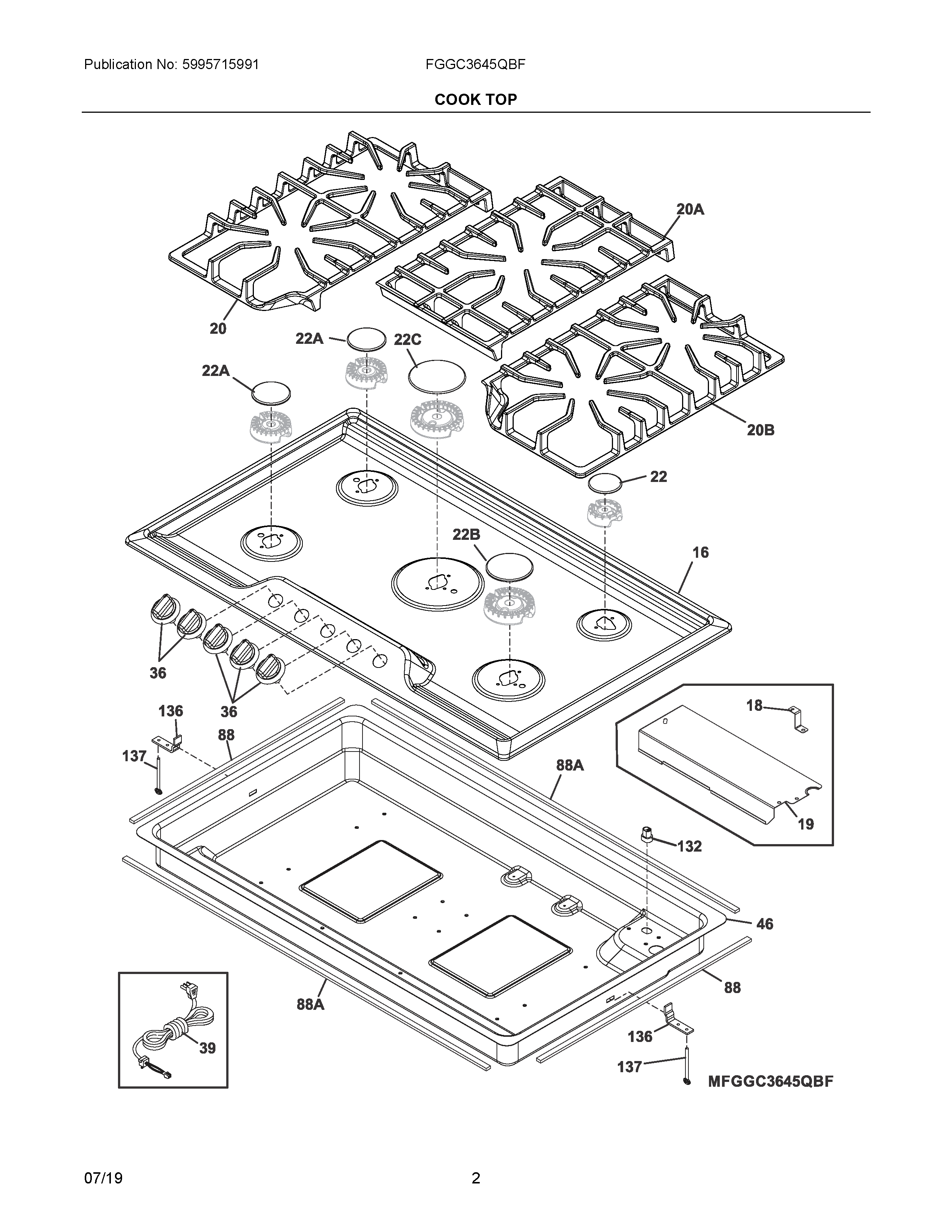

FGGC3645QBF 02 – COOK TOP

FGGC3645QBF 02 – COOK TOP

Written by

in

FGGC3645QBF 02 – COOK TOP

Products

PositionProduct
NIA305452800 Frigidaire Screw
NI305338601 Frigidaire Screw
165304531779 Frigidaire Main Top
18BRACKET
19SHIELD, HEAT
20B5304499405 Frigidaire Oven Grate
205304499403 Frigidaire Oven Grate
20A5304499404 Frigidaire Oven Grate
22C5304508468 Frigidaire Oven Cap
22A5304508442 Frigidaire Oven Surface Burner Cap
22CAP
22B5304508443 Frigidaire Oven Surface Burner Cap
365304533000 Frigidaire Knob
39305574902 Frigidaire Power Cord
465304498877 Frigidaire Box Burner
88GASKET, MAINTOP, FOAM TAPE, SIDE
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
