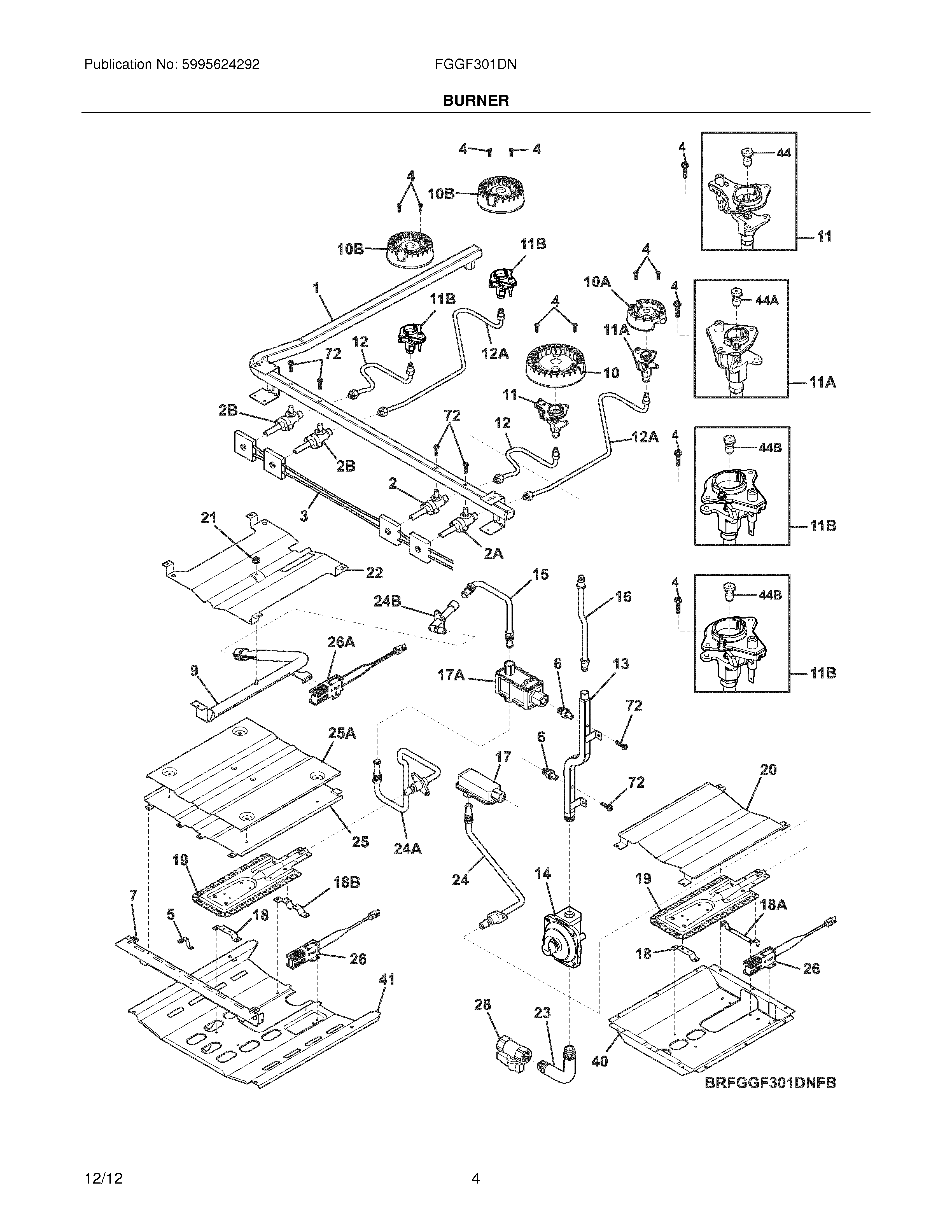

FGGF301DNBB 05 – BURNER

FGGF301DNBB 05 – BURNER

Written by

in

FGGF301DNBB 05 – BURNER

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	5300803416 Frigidaire Dishwasher Screw
NI	WCI 318586400
NI	WCI 318586401
NI	5303211311 Frigidaire Refrigerator Screw
NI	Screw,No.8-18 x 3/8 ,(10)
NI	5304415832 Frigidaire Oven Screw
NI	WCI 318199791
NI	WCI 318565419
1	WCI 316261601
2	WCI 318234021
2A	WCI 318234025
2B	WCI 318234024
3	WCI 318232662
4	316240600 Frigidaire Igniter Mounting Screw
5	WCI 318407201
6	316281700 Frigidaire Oven Fitting
7	WCI 318571500
9	316261500 Frigidaire Burner
10	316438400 Frigidaire Range Sealed Burner, 16/17K
10A	316438200 Frigidaire Range Sealed Burner, 5K
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
11B	316540700 Frigidaire Igniter/Orifice Assembly
11A	316540800 Frigidaire Igniter/Orifice Assembly
11	316543203 Frigidaire Igniter Orifice Assembly
12A	TUBE
12	TUBE
13	316259900 Frigidaire Tube
14	316470716 Frigidaire Oven Regulator
15	316281200 Frigidaire Tube
16	WCI 316281500
17	316259600 Frigidaire Oven Valve
17A	316256700 Frigidaire Oven Valve
18	WCI 318577100
18A	WCI 318577101
18B	WCI 318577102
19	357710306 Frigidaire Oven Burner Assembly
20	WCI 318290402
21	5303013272 Frigidaire Oven Nut
22	WCI 318579700
23	316281600 Frigidaire Oven Pipe
24	WCI 316281401
24A	316281300 Frigidaire Mixer Elbow Assembly
24B	WCI 316409705
25	WCI 318937500
25A	WCI 318580100
26A	316489405 Frigidaire Igniter
26	316489406 Frigidaire Bake Burner Igniter
28	318087450 Frigidaire Oven Valve
40	WCI 318291801
41	WCI 318572200
44B	316527500 Frigidaire Oven Burner Orifice
44A	316527504 Frigidaire Oven Orifice
44	316527509 Frigidaire Oven 18.2K Burner Orifice
72	316215600 Frigidaire Oven Screw
