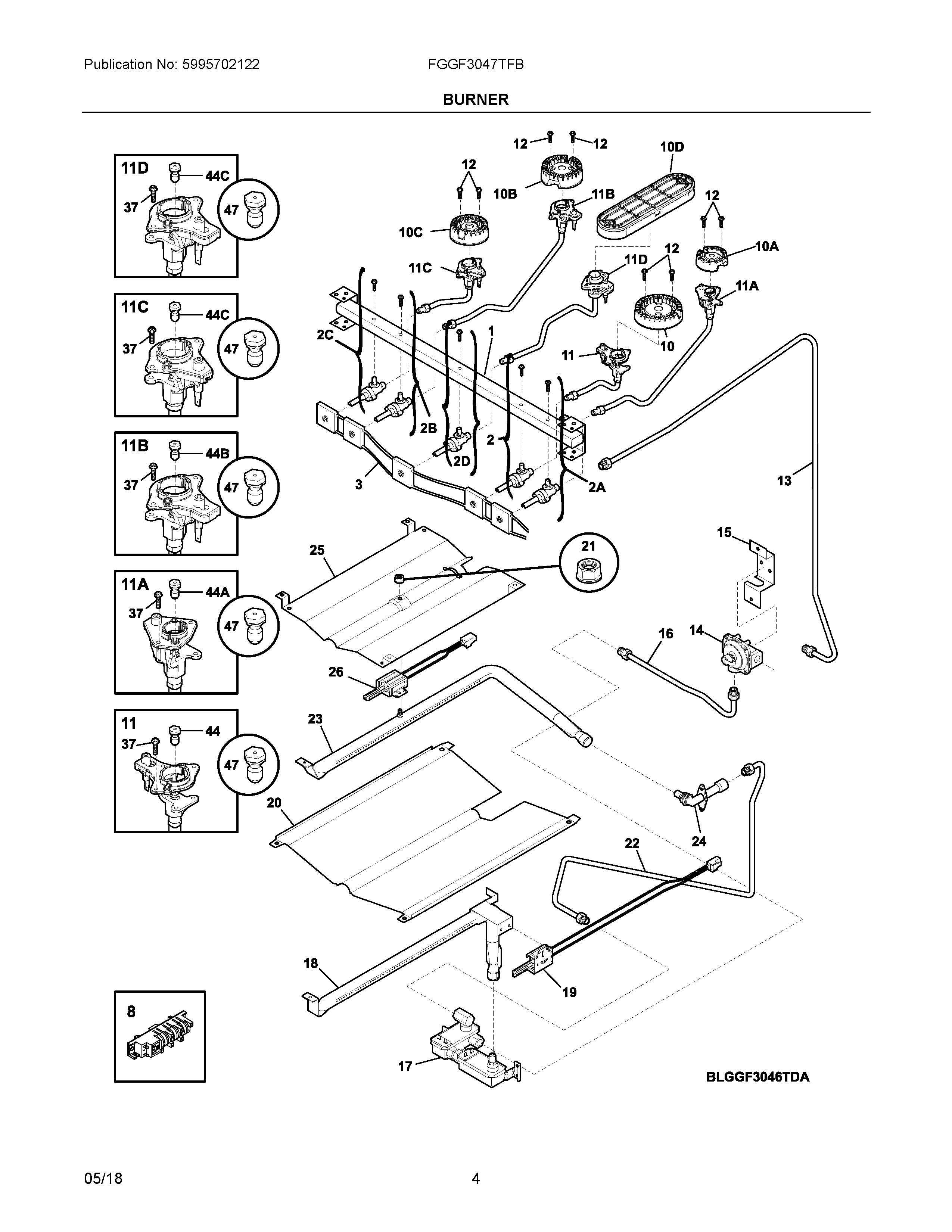

FGGF3047TFB 03 – BURNER

FGGF3047TFB 03 – BURNER

Written by

in

FGGF3047TFB 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI316021132 Frigidaire Screw
NI316001017 Frigidaire Screw
NIA5304505563 Frigidaire Oven Wire
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NIA316498100 Frigidaire Shield
NI316215600 Frigidaire Oven Screw
NIA316401500 Frigidaire Oven Cover
15304513540 Frigidaire Oven Manifold
25304506550 Frigidaire Oven Range Gas Valve (White)
2B5304506549 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
2D5304506551 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
35304528828 Frigidaire Harness
8SPARK MODULE
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10D316559300 Frigidaire Oven Burner
11316536622 Frigidaire Igniter Orifice Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11D316536623 Frigidaire Igniter/Orifice Assembly
11B316536616 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
37316240600 Frigidaire Igniter Mounting Screw
44316527509 Frigidaire Oven 18.2K Burner Orifice
44C316527500 Frigidaire Oven Burner Orifice
44B316527511 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
