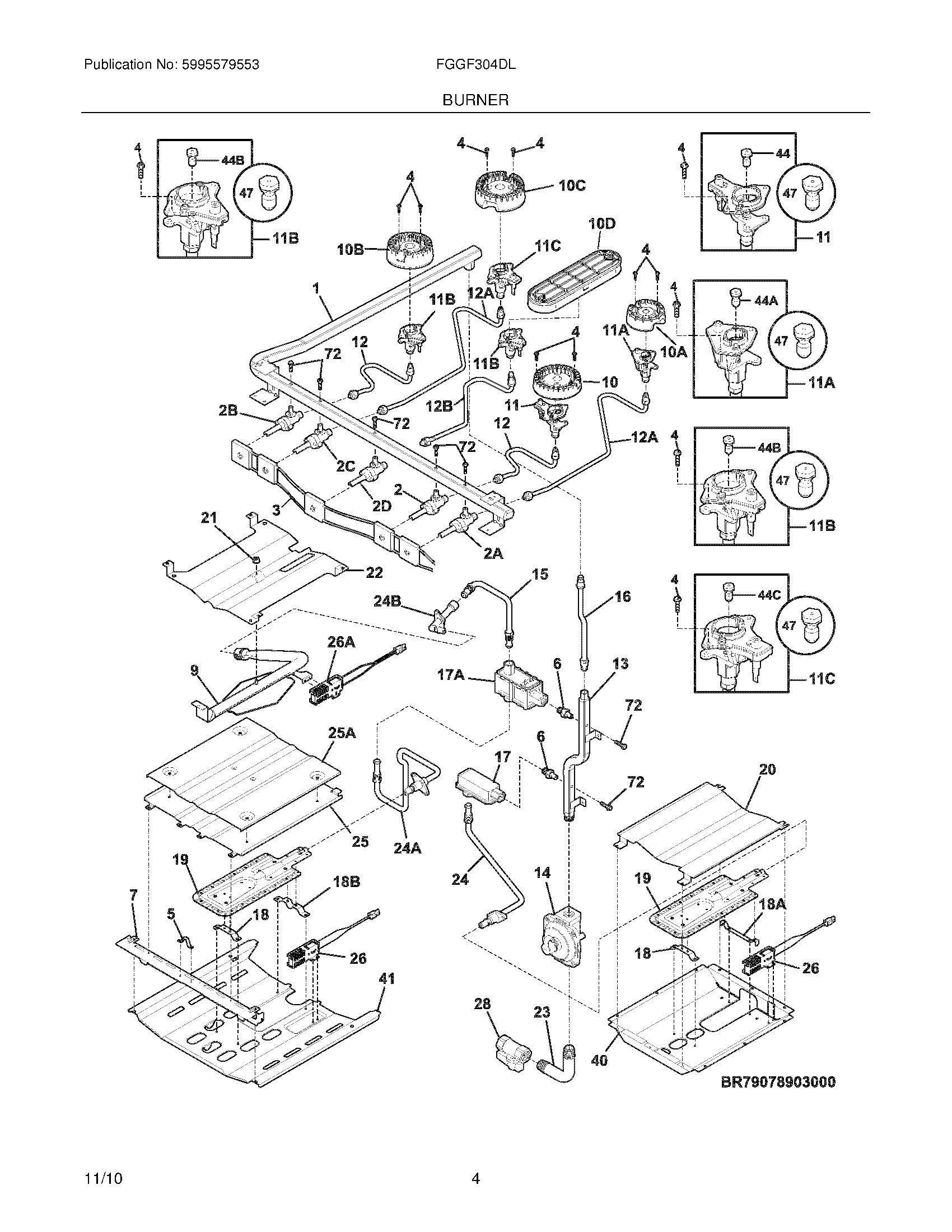

FGGF304DLB1 05 – BURNER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318586400
NI5300803416 Frigidaire Dishwasher Screw
NI318199790 Frigidaire Wiring Harness
NIScrew,No.8-18 x 3/8 ,(10)
NIWCI 318586401
NI5303211311 Frigidaire Refrigerator Screw
NI5304415832 Frigidaire Oven Screw
1WCI 316261600
2WCI 318234021
2D5303935259 Frigidaire Oven Valve
2CWCI 318234022
2BWCI 318234024
2AWCI 318234025
3318232661 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
5WCI 318407201
6316281700 Frigidaire Oven Fitting
7WCI 318571500
9WCI 316261501
10D316559300 Frigidaire Oven Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11C316543204 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11316543203 Frigidaire Igniter Orifice Assembly
12B5304522049 Frigidaire Tube
12ATUBE
12TUBE
13316259900 Frigidaire Tube
14316470716 Frigidaire Oven Regulator
15316281200 Frigidaire Tube
16WCI 316281500
17A316256700 Frigidaire Oven Valve
17316259600 Frigidaire Oven Valve
18WCI 318577100
18AWCI 318577101
18BWCI 318577102
19357710306 Frigidaire Oven Burner Assembly
20WCI 318290402
215303013272 Frigidaire Oven Nut
22WCI 318579700
23316281600 Frigidaire Oven Pipe
24BWCI 316409705
24A316281300 Frigidaire Mixer Elbow Assembly
24WCI 316281401
25AWCI 318580100
25WCI 318937500
26A316489405 Frigidaire Igniter
26316489406 Frigidaire Bake Burner Igniter
28318087450 Frigidaire Oven Valve
40WCI 318291801
41WCI 318572200
44B316527500 Frigidaire Oven Burner Orifice
44C316527511 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44316527509 Frigidaire Oven 18.2K Burner Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
