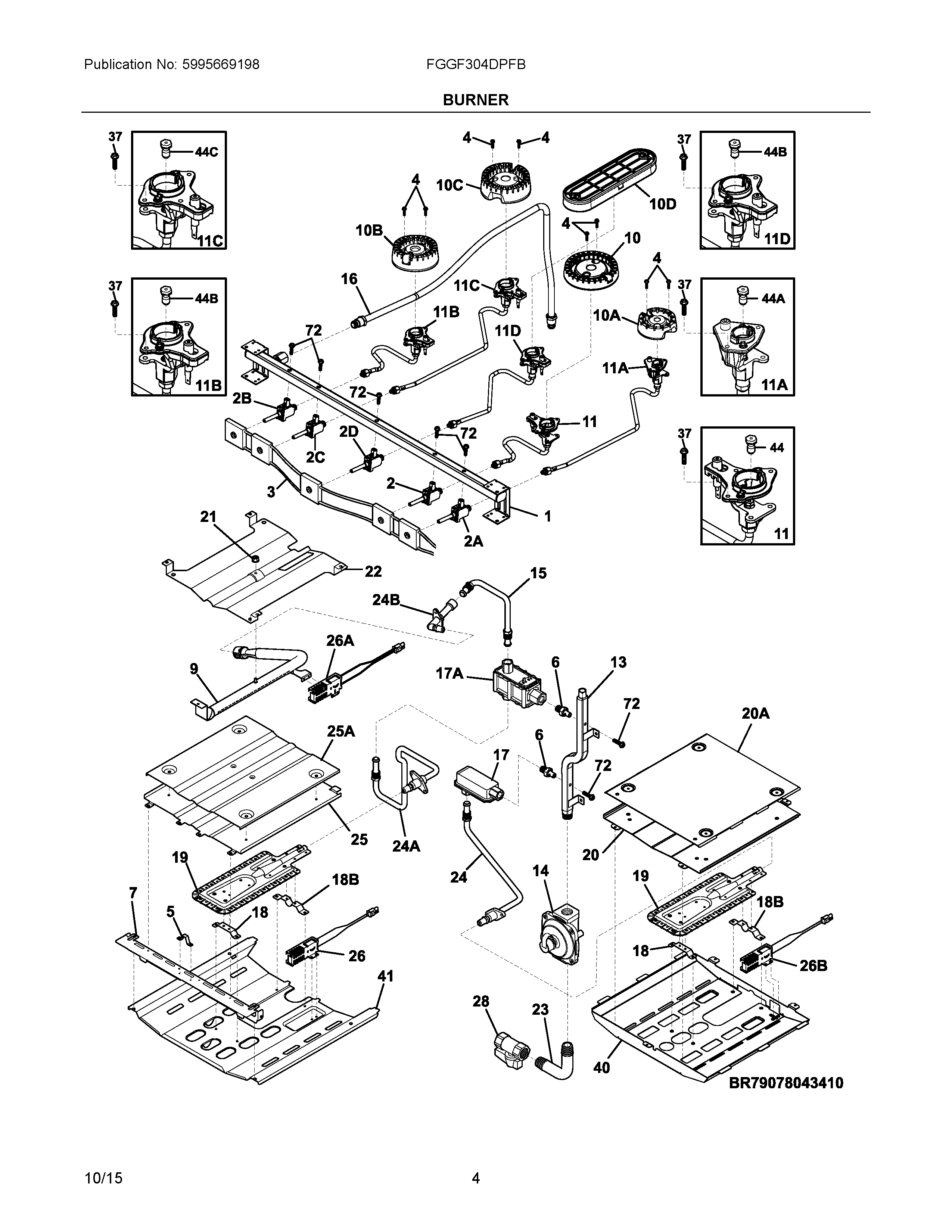

FGGF304DPFB 03 – BURNER

FGGF304DPFB 03 – BURNER

Written by

in

FGGF304DPFB 03 – BURNER

Products

Position	Product
NI	GRLP4 Frigidaire Oven LP Conversion Kit
NI	WCI 318586401
NI	WCI 318586400
NI	318199790 Frigidaire Wiring Harness
NI	316021109 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	WCI 316605502
2B	5303935305 Frigidaire Oven Valve
2D	5303935309 Frigidaire Top Burner Valve
2A	5303935308 Frigidaire Oven Valve
2C	5303935306 Frigidaire Oven Valve
2	5304487866 Frigidaire Oven Valve
3	WCI 807246602
4	316540900 Frigidaire Oven Screw
5	BRACKET, SUPPORT, OVEN BOTTOM
6	316281700 Frigidaire Oven Fitting
7	WCI 318571500
9	316261500 Frigidaire Burner
10D	316559300 Frigidaire Oven Burner
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
10C	316438600 Frigidaire Range Sealed Burner, 14K
10	316438400 Frigidaire Range Sealed Burner, 16/17K
10A	316438200 Frigidaire Range Sealed Burner, 5K
11B	316536602 Frigidaire Oven Igniter/Orifice Assembly
11D	316536623 Frigidaire Igniter/Orifice Assembly
11	316536622 Frigidaire Igniter Orifice Assembly
11C	316536616 Frigidaire Igniter/Orifice Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
13	316259900 Frigidaire Tube
14	316470716 Frigidaire Oven Regulator
15	316281200 Frigidaire Tube
16	807249802 Frigidaire Oven Tube
17A	316256700 Frigidaire Oven Valve
17	316259600 Frigidaire Oven Valve
18	WCI 318577100
18B	WCI 318577102
19	357710306 Frigidaire Oven Burner Assembly
20	WCI 139073603
20A	WCI 139073701
21	5303013272 Frigidaire Oven Nut
22	WCI 318579701
23	316281600 Frigidaire Oven Pipe
24	139071600 Frigidaire Oven Mixer
24B	WCI 316409706
24A	316281300 Frigidaire Mixer Elbow Assembly
25A	318580101 Frigidaire Oven Deflector
25	WCI 318937503
26B	5304534663 Frigidaire Igniter
26A	316489405 Frigidaire Igniter
26	316489406 Frigidaire Bake Burner Igniter
28	318087450 Frigidaire Oven Valve
37	316240600 Frigidaire Igniter Mounting Screw
40	WCI 139073001
41	WCI 318572201
44C	316527511 Frigidaire Oven Orifice
44A	316527504 Frigidaire Oven Orifice
44	316527509 Frigidaire Oven 18.2K Burner Orifice
44B	316527500 Frigidaire Oven Burner Orifice
72	316215600 Frigidaire Oven Screw
