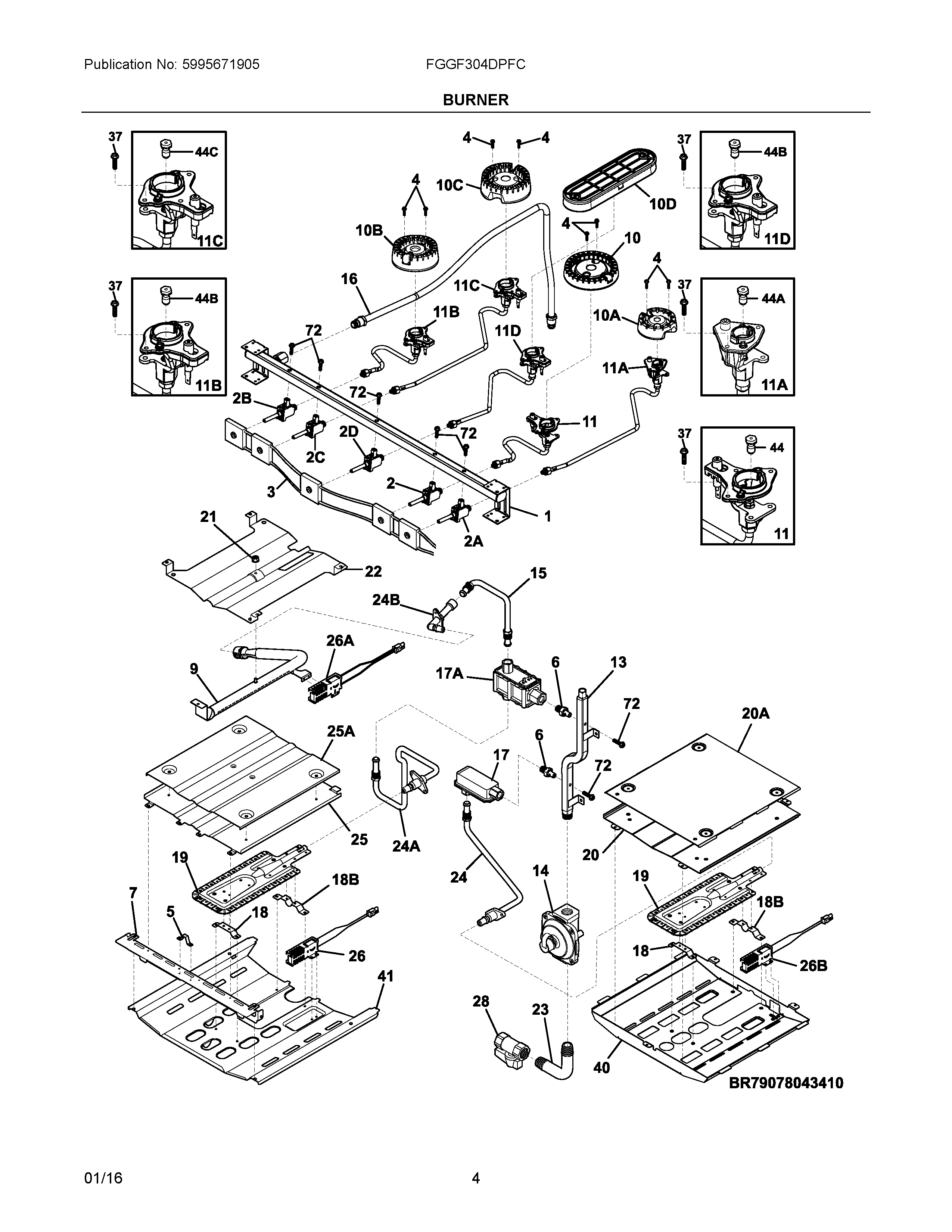

FGGF304DPFC 03 – BURNER

Products

PositionProduct
NIGRLP4 Frigidaire Oven LP Conversion Kit
NIWCI 318586401
NIWCI 318586400
NI318199790 Frigidaire Wiring Harness
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316605502
2B5303935305 Frigidaire Oven Valve
2D5303935309 Frigidaire Top Burner Valve
2A5303935308 Frigidaire Oven Valve
2C5303935306 Frigidaire Oven Valve
25304487866 Frigidaire Oven Valve
3WCI 807246602
4316540900 Frigidaire Oven Screw
5BRACKET, SUPPORT, OVEN BOTTOM
6316281700 Frigidaire Oven Fitting
7WCI 318571500
9316261500 Frigidaire Burner
10D316559300 Frigidaire Oven Burner
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10C316438600 Frigidaire Range Sealed Burner, 14K
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
11316536622 Frigidaire Igniter Orifice Assembly
11C316536616 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
13316259900 Frigidaire Tube
14316470716 Frigidaire Oven Regulator
15316281200 Frigidaire Tube
16807249802 Frigidaire Oven Tube
17A316256700 Frigidaire Oven Valve
17316259600 Frigidaire Oven Valve
18WCI 318577100
18BWCI 318577102
19357710306 Frigidaire Oven Burner Assembly
20WCI 139073603
20AWCI 139073701
215303013272 Frigidaire Oven Nut
22WCI 318579701
23316281600 Frigidaire Oven Pipe
24139071600 Frigidaire Oven Mixer
24BWCI 316409706
24A316281300 Frigidaire Mixer Elbow Assembly
25A318580101 Frigidaire Oven Deflector
25WCI 318937503
26B5304534663 Frigidaire Igniter
26A316489405 Frigidaire Igniter
26316489406 Frigidaire Bake Burner Igniter
28318087450 Frigidaire Oven Valve
37316240600 Frigidaire Igniter Mounting Screw
40WCI 139073001
41WCI 318572201
44C316527511 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44316527509 Frigidaire Oven 18.2K Burner Orifice
44B316527500 Frigidaire Oven Burner Orifice
72316215600 Frigidaire Oven Screw
