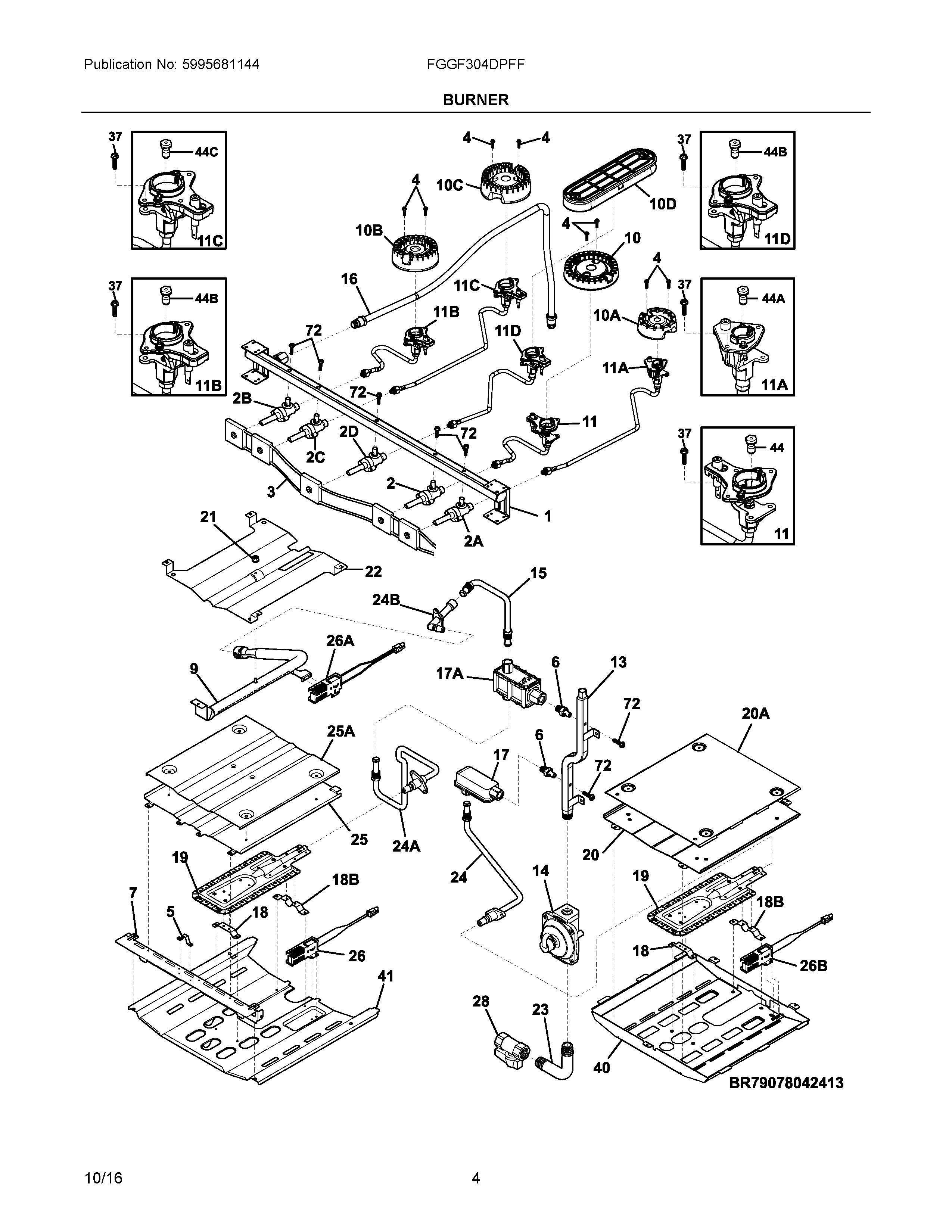

FGGF304DPFF 03 – BURNER

FGGF304DPFF 03 – BURNER

Written by

in

FGGF304DPFF 03 – BURNER

Products

PositionProduct
NIWCI 318586401
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIGRLP4 Frigidaire Oven LP Conversion Kit
NI318199790 Frigidaire Wiring Harness
NIWCI 318586400
1WCI 316605502
2D5304506551 Frigidaire Oven Valve
2B5304506548 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
2C5304506549 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
35304507133 Frigidaire Assembly Harness
4316540900 Frigidaire Oven Screw
5BRACKET, SUPPORT, OVEN BOTTOM
6316281700 Frigidaire Oven Fitting
7WCI 318571500
9316261500 Frigidaire Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10D316559300 Frigidaire Oven Burner
11D316536623 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
11C316536616 Frigidaire Igniter/Orifice Assembly
11316536622 Frigidaire Igniter Orifice Assembly
13316259900 Frigidaire Tube
14316470716 Frigidaire Oven Regulator
15316281200 Frigidaire Tube
16807249802 Frigidaire Oven Tube
17316259600 Frigidaire Oven Valve
17A316256700 Frigidaire Oven Valve
18BWCI 318577102
18WCI 318577100
19357710306 Frigidaire Oven Burner Assembly
20WCI 139073603
20AWCI 139073701
215303013272 Frigidaire Oven Nut
22WCI 318579701
23316281600 Frigidaire Oven Pipe
24139071600 Frigidaire Oven Mixer
24BWCI 316409706
24A316281300 Frigidaire Mixer Elbow Assembly
25WCI 318937503
25A318580101 Frigidaire Oven Deflector
26316489406 Frigidaire Bake Burner Igniter
26B5304534663 Frigidaire Igniter
26A316489405 Frigidaire Igniter
28318087450 Frigidaire Oven Valve
37316240600 Frigidaire Igniter Mounting Screw
40WCI 139073001
41WCI 318572201
44A316527504 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
44C316527511 Frigidaire Oven Orifice
44316527509 Frigidaire Oven 18.2K Burner Orifice
72316215600 Frigidaire Oven Screw
