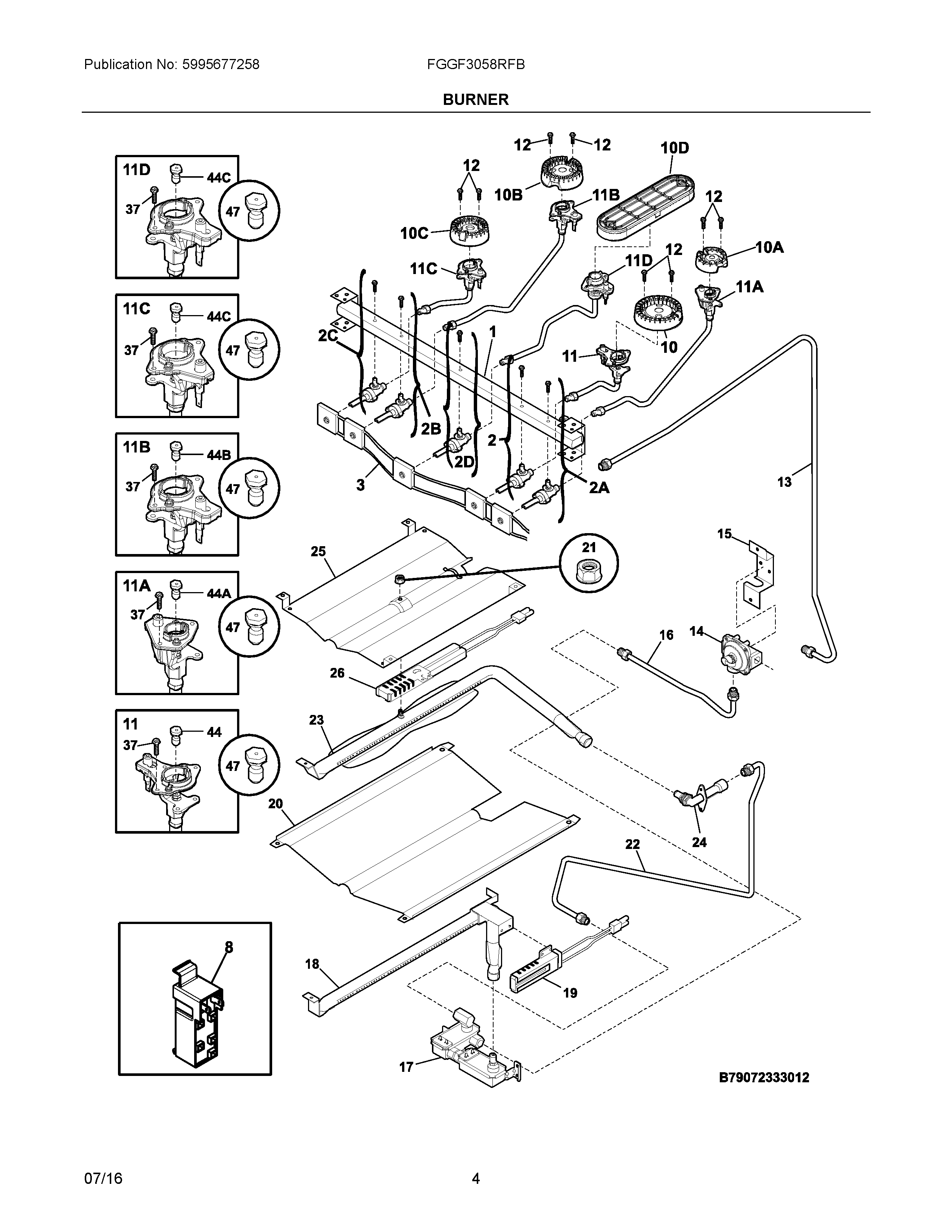

FGGF3058RFB 03 – BURNER

FGGF3058RFB 03 – BURNER

Written by

in

FGGF3058RFB 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NIA316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NIA316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
15304513540 Frigidaire Oven Manifold
2316560900 Frigidaire Oven Valve
2B5303935306 Frigidaire Oven Valve
2D5303935309 Frigidaire Top Burner Valve
2C5303935305 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
3316580615 Frigidaire Range Spark Ignition Switches with Wire Harness
8SPARK MODULE
10A316438200 Frigidaire Range Sealed Burner, 5K
10D316559300 Frigidaire Oven Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438000 Frigidaire Sealed Burner 12K Assembly
11B316536612 Frigidaire Igniter Assembly/Orifice
11A316536610 Frigidaire Igniter Assembly/Orifice
11316536625 Frigidaire Igniter/Orifice Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
195304506545 Frigidaire Gas Oven Range Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
26BAKE IGNITOR
37316240600 Frigidaire Igniter Mounting Screw
44B316527502 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44316543200 Frigidaire Igniter/Orifice Assembly
44A316527504 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
