FGGF3076KBA 09 – TOP/DRAWER – Aparts

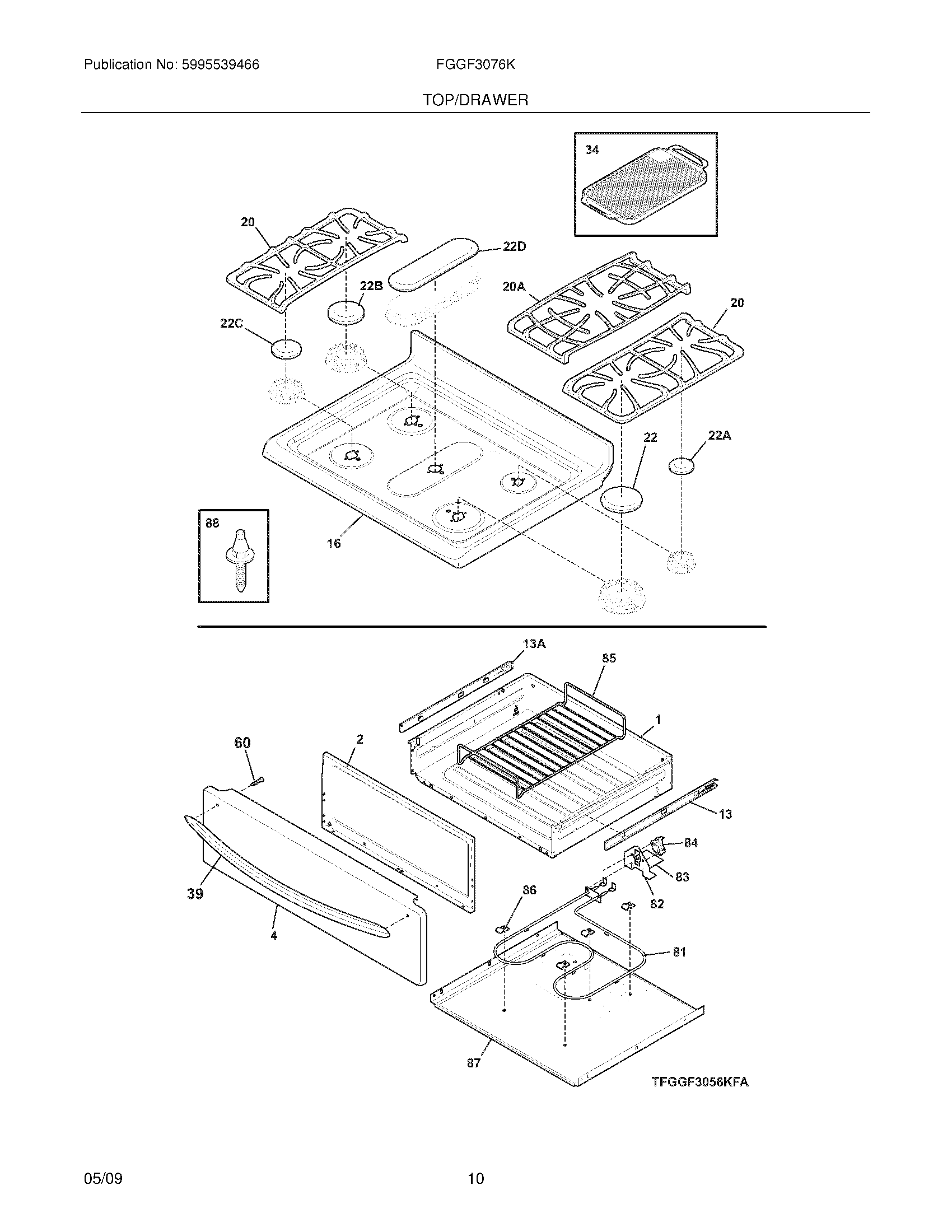

FGGF3076KBA 09 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304516184 Frigidaire Harness
NI	316021109 Frigidaire Oven Screw
1	316408905 Frigidaire Dsp Drawer
2	5304527988 Frigidaire Liner
4	WCI 316403406
13A	316415001 Frigidaire Oven Glide
13	316415000 Frigidaire Oven Glide
16	WCI 316469653
20	316499502 Frigidaire Oven Grate
20A	316551802 Frigidaire Oven Grate
22D	WCI 316532103
22A	CAP
22C	Cap,9.5K burner ,black ,medium ,(2)
22	5304508468 Frigidaire Oven Cap
22B	WCI 316438704
34	WCI 316499900
60	Screw,handle mtg. ,10-24 x 1.75`` ,(2)
81	316437300 Frigidaire Oven Element
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	316093502 Frigidaire Thermo Disc
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091900
88	316099500 Frigidaire Oven Pin
