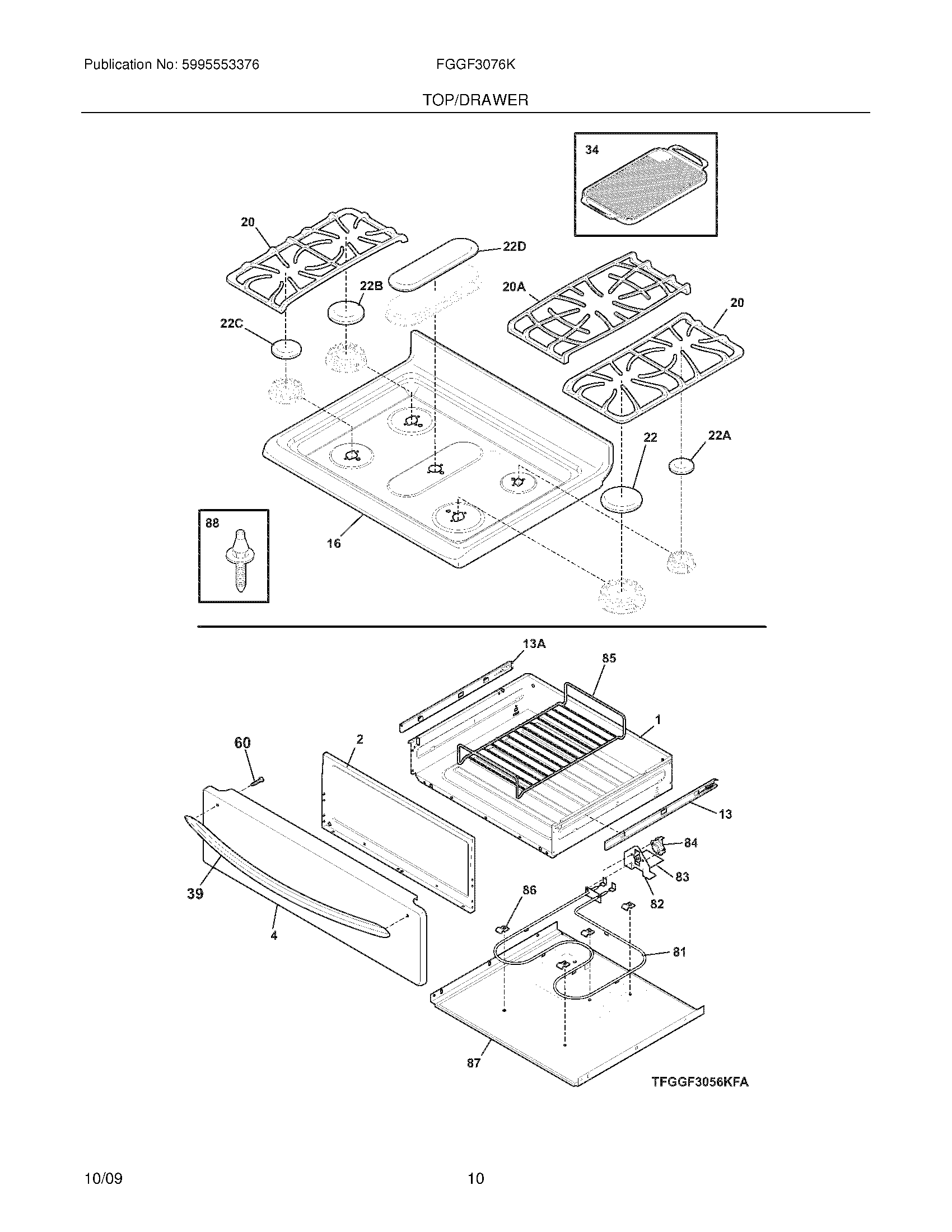

FGGF3076KWB 09 – TOP/DRAWER

FGGF3076KWB 09 – TOP/DRAWER

Written by

in

FGGF3076KWB 09 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304516184 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
1316408905 Frigidaire Dsp Drawer
25304527988 Frigidaire Liner
4WCI 316403405
13A316415001 Frigidaire Oven Glide
13316415000 Frigidaire Oven Glide
16WCI 316469654
20316499502 Frigidaire Oven Grate
20A316551802 Frigidaire Oven Grate
22DWCI 316532103
225304508468 Frigidaire Oven Cap
22ACAP
22CCap,9.5K burner ,black ,medium ,(2)
22BWCI 316438704
34WCI 316499900
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
81316437300 Frigidaire Oven Element
82316093200 Frigidaire Bracket
83WCI 316093300
84316093502 Frigidaire Thermo Disc
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
88316099500 Frigidaire Oven Pin
