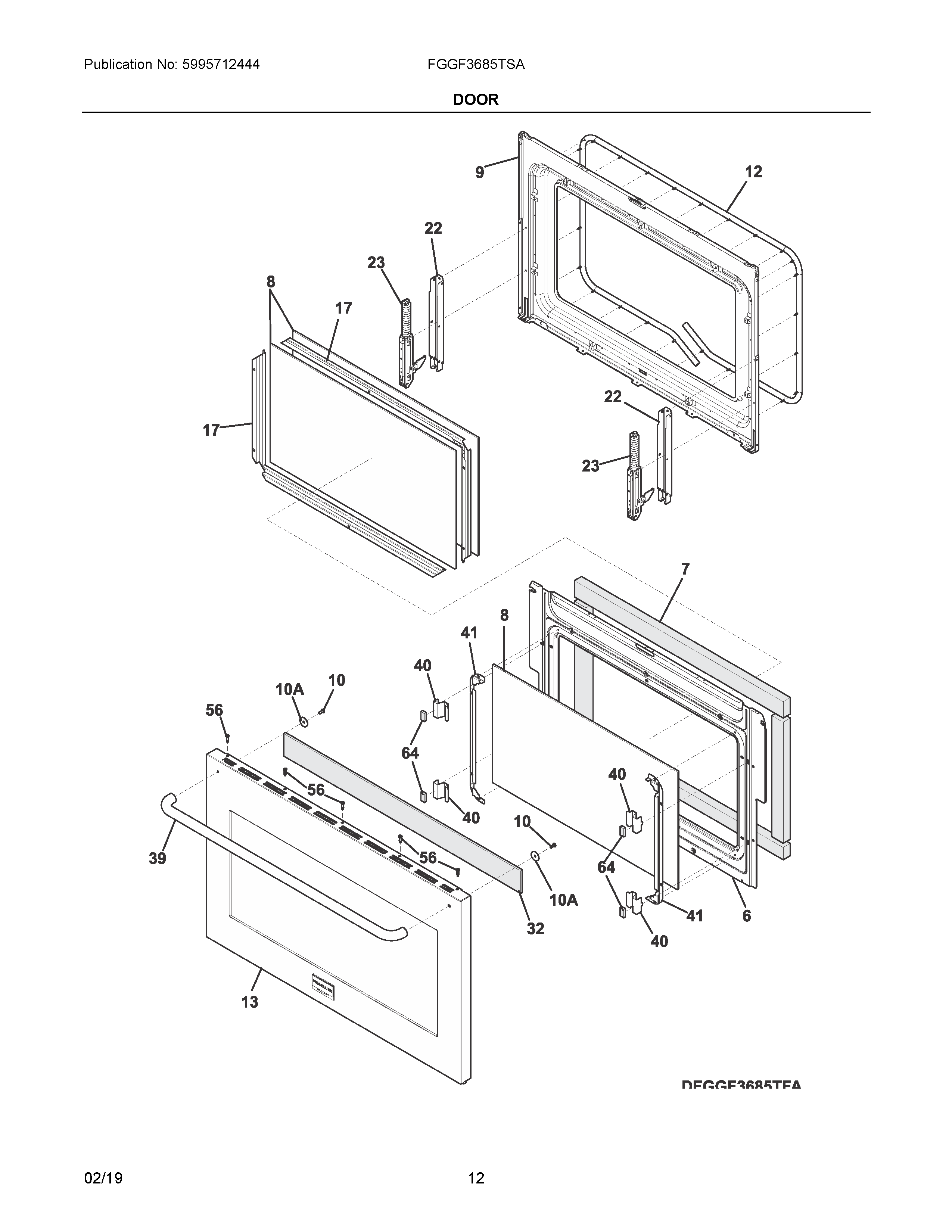

FGGF3685TSA 06 – DOOR

FGGF3685TSA 06 – DOOR

Written by

in

FGGF3685TSA 06 – DOOR

Products

PositionProduct
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIA807597603 Frigidaire Oven Screw
NI316483102 Frigidaire Oven Label
NI5303324184 Frigidaire Wall Oven Range Screw
6BAFFLE, DOOR
7807354901 Frigidaire Insulation Assembly
8318212250 Frigidaire Oven Glass
9318364602 Frigidaire Oven Liner
10AWASHER, HANDLE SCREW
10WCI 5304437044
12SEAL, OVEN DOOR
13DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/GLASS & BADGE
17SPACER, DOOR GLASS, (2)
22318353803 Frigidaire Oven Retainer
23318244304 Frigidaire Hinge Assembly
32INSULATION, DOOR SKIN
39HANDLE, DOOR, STAINLESS
40BRACKET, GLASS, (4)
41BRACKET, GLASS RETAINER
565304480396 Frigidaire Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
