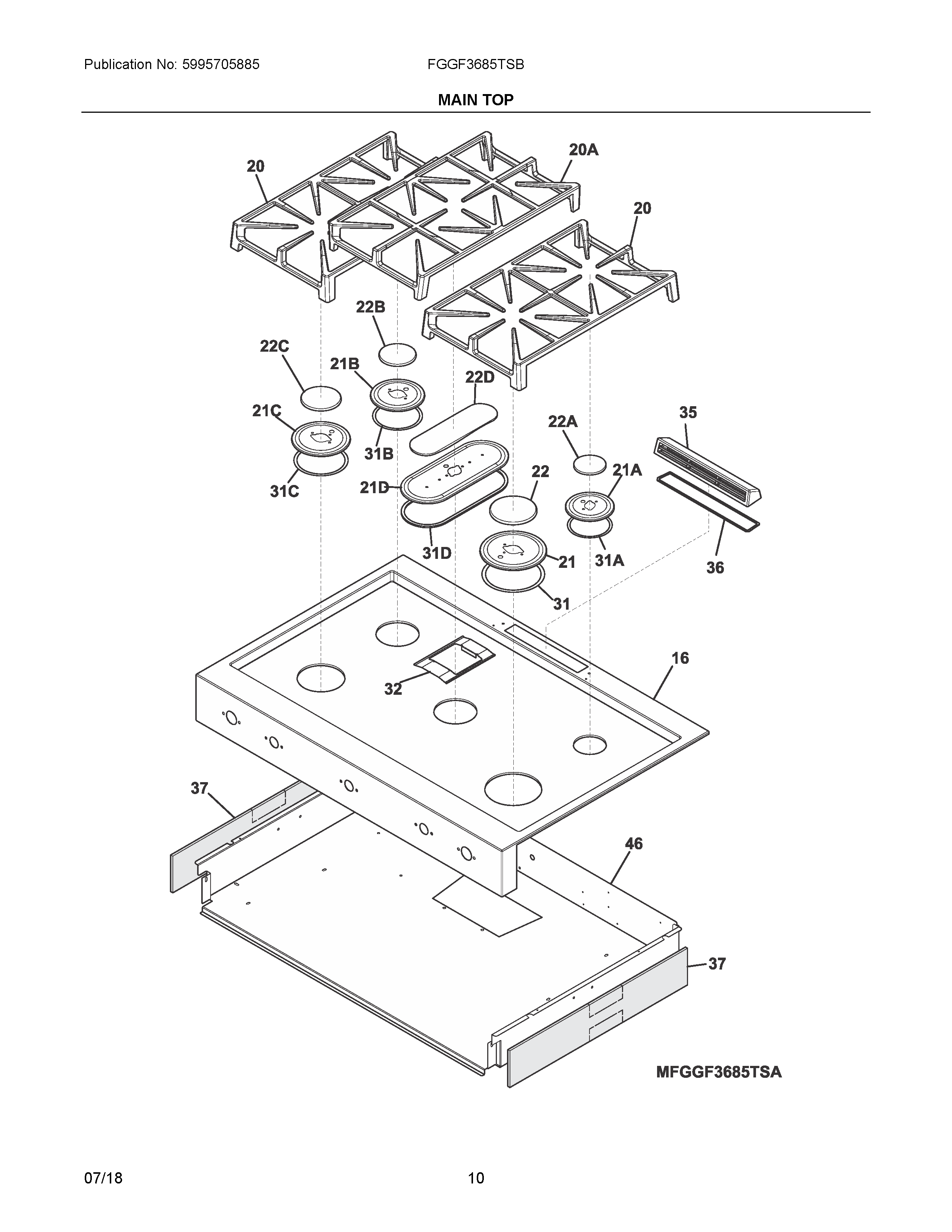

FGGF3685TSB 05 – MAIN TOP

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
NI	316540900 Frigidaire Oven Screw
16	MAIN TOP, ASSEMBLY, BLACK/STAINLESS
20A	5304509383 Frigidaire Oven Grate
20	5304509384 Frigidaire Oven Grate
21C	318293308 Frigidaire Oven Skirt
21B	318293007 Frigidaire Oven Skirt Assembly
21	SKIRT, 17K BURNER, BLACK
21D	SKIRT, 9.5K BURNER, BLACK, OVAL
21A	318293107 Frigidaire Oven Skirt
22A	CAP
22	5304508468 Frigidaire Oven Cap
22D	316559604 Frigidaire Oven Cap
22B	5304508442 Frigidaire Oven Surface Burner Cap
22C	5304508443 Frigidaire Oven Surface Burner Cap
31D	SEAL, BURNER, 9.5K OVAL
31A	316242002 Frigidaire Range Burner Seal
31	316242004 Frigidaire Oven Seal
31B	316242001 Frigidaire Oven Burner Seal 9.5k/12k
31C	316242000 Frigidaire Burner Seal
32	BRACKET, GASKET RETAINER
35	DEFLECTOR, FLUE
36	GASKET, FLUE DEFLECTOR
37	INSULATION, BURNER BOX, (2)
46	BOX, BURNER
