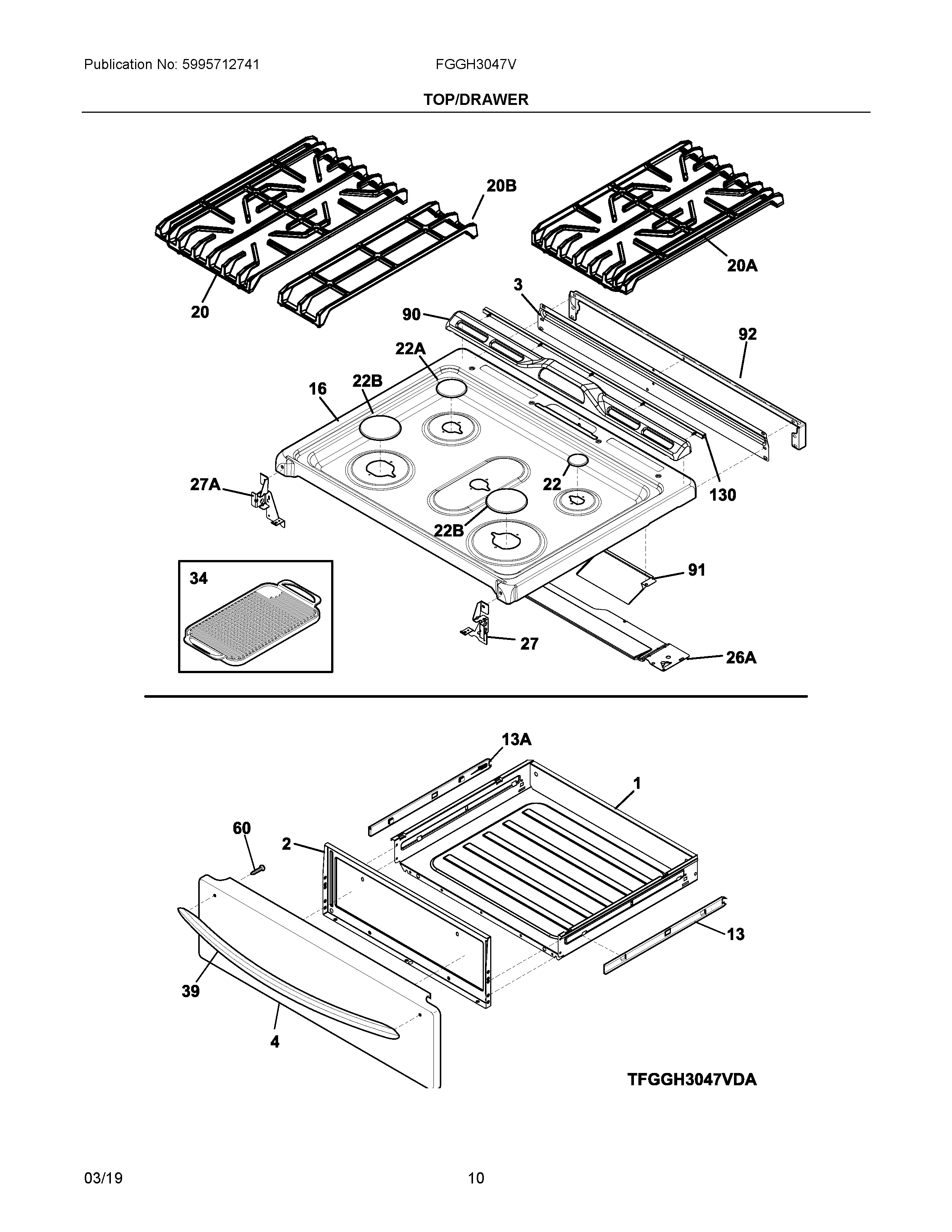

FGGH3047VDA 05 – TOP/DRAWER

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	807108405 Frigidaire Drawer
2	5304527988 Frigidaire Liner
3	5304514133 Frigidaire Oven Shield
4	5304517133 Frigidaire Oven Panel
13A	316415001 Frigidaire Oven Glide
13	316415000 Frigidaire Oven Glide
16	5304520919 Frigidaire Oven Maintop
20	5304521077 Frigidaire Grate
20B	5304521079 Frigidaire Grate
20A	5304521078 Frigidaire Grate
22A	5304520371 Frigidaire Oven Surface Burner Cap
22	5304520370 Frigidaire Oven Surface Burner Cap
22B	5304520372 Frigidaire Oven Surface Burner Cap Assembly
26A	BRACKET, SUPPORT, REAR, CHASSIS
27	5304514123 Frigidaire Bracket
27A	5304514124 Frigidaire Bracket
34	5304495353 Frigidaire Oven Griddle
39	5304518030 Frigidaire Handle
60	5304414648 Frigidaire Oven Screw
90	5304514122 Frigidaire Oven Trim
91	5304514181 Frigidaire Deflector Assembly
92	5304520261 Frigidaire Rear Filler Kit
130	808931802 Frigidaire Oven Seal
