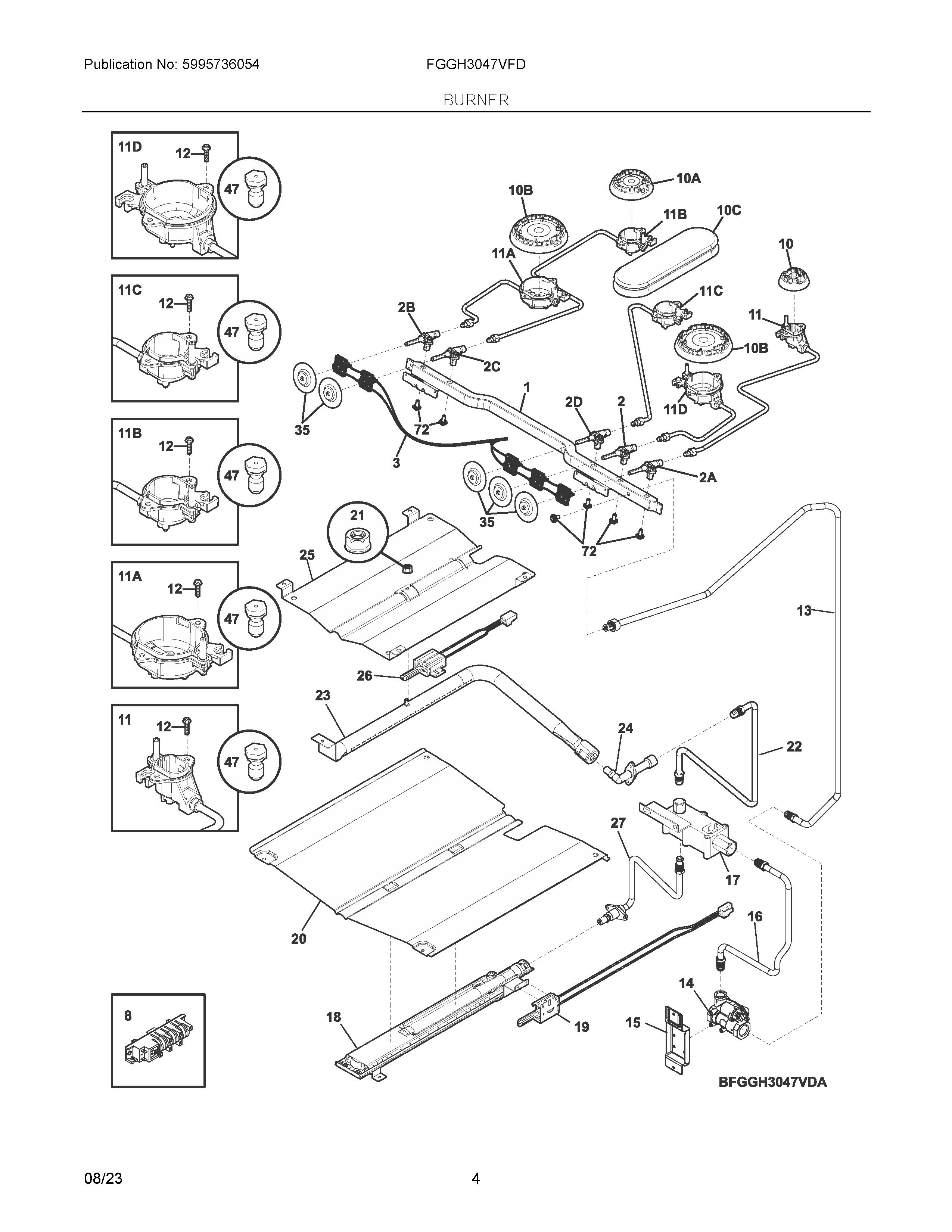

FGGH3047VFD 03 – BURNER

FGGH3047VFD 03 – BURNER

Written by

in

FGGH3047VFD 03 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NIA5304505563 Frigidaire Oven Wire
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5303289910 Frigidaire Oven Screw
NIA316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NI316021105 Frigidaire Oven Screw
NIA316602300 Frigidaire Bracket
15304516832 Frigidaire Manifold
2D5304506551 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
2C5304506548 Frigidaire Oven Valve
35304528832 Frigidaire Spark Ignition Switch and Harness
8SPARK MODULE
10B5304521016 Frigidaire Surface Burner Base
105304521014 Frigidaire Oven Surface Burner Base
10C5304521033 Frigidaire Burner Assembly
10A5304521015 Frigidaire Oven Surface Burner Base
11A5304521034 Frigidaire Igniter/Orifice Assembly
11C5304521036 Frigidaire Igniter/Orifice Assembly
115304520921 Frigidaire Oven Igniter Orifice Assembly
11D5304521037 Frigidaire Assembly Igniter/Orifice
11B5304521035 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
135304514135 Frigidaire Oven Bake Tube
14316091711 Frigidaire Regulator Assembly
15316603300 Frigidaire Bracket
165304507349 Frigidaire Tube
175303210798 Frigidaire Range Wall Oven Gas Safety Valve
185304494426 Frigidaire Oven Burner
19BAKE IGNITOR
20BAFFLE, OVEN BURNER
215303013272 Frigidaire Oven Nut
225304516857 Frigidaire Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
27316602400 Frigidaire Oven Tube
355304508440 Frigidaire Bushing
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
