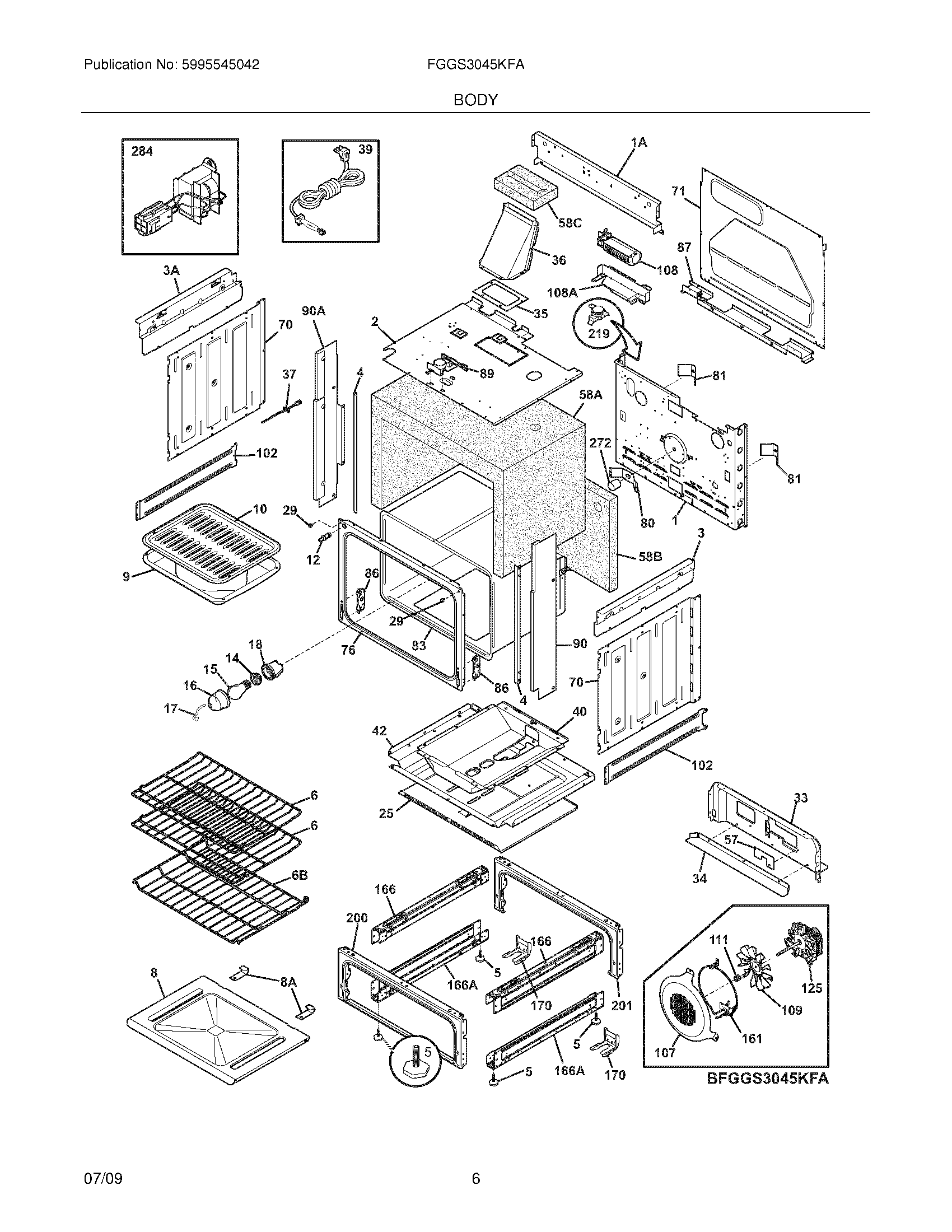

FGGS3045KFA 07 – BODY

FGGS3045KFA 07 – BODY

Written by

in

FGGS3045KFA 07 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	WCI 318306637
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303307980 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	318531701 Frigidaire Spacer
NI	5304461333 Frigidaire Oven Screw
NI	WCI 5304400192
NI	SCREW-SHOULDER
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	5304480396 Frigidaire Screw
NI	5303325980 Frigidaire Oven Screw
NI	5304436875 Frigidaire Oven Screw
NI	5303323129 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
NI	5303323139 Frigidaire Oven Screw
1A	WCI 318225110
1	WCI 318259220
2	WCI 318258902
3	WCI 318225210
3A	WCI 318225211
4	WCI 318920200
5	Screw,leveling ,w/tee nut
6	318922301 Frigidaire Oven Rack
6B	WCI 318919801
8A	318367401 Frigidaire Bracket
8	WCI 318290501
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	WCI 318222400
25	318291900 Frigidaire Bracket Assembly
29	316517600 Frigidaire Oven Spacer
33	WCI 318287800
34	318289402 Frigidaire Panel
35	318291300 Frigidaire Oven Seal
36	WCI 318288801
37	316217002 Frigidaire Oven Temperature Probe
39	5304515659 Frigidaire Oven Power Cord
40	WCI 318291800
42	WCI 318288701
57	WCI 318268300
58C	WCI 318285097
58B	WCI 318285085
58A	WCI 318285084
70	WCI 318259105
71	WCI 318260007
76	WCI 318056292
80	WCI 5303320846
81	WCI 318192400
83	WCI 318327021
86	318561100 Frigidaire Receptacle
87	WCI 318260624
89	318261229 Frigidaire Oven Motor
90	5304511889 Frigidaire Oven Panel
90A	5304511890 Frigidaire Oven Panel
102	WCI 318327500
107	WCI 318219405
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	5304463302 Frigidaire Convection Motor
125	Washer,motor ,RH ,convection
161	318255504 Frigidaire Oven Element
166	WCI 318298403
166	318298410 Frigidaire Oven Bracket
170	WCI 318335500
200	WCI 318298226
201	318298233 Frigidaire Oven Frame
219	WCI 318003633
272	WCI 318249409
284	316536100 Frigidaire Transformer
