FGGS3065PBF 03 – BURNER

FGGS3065PBF 03 – BURNER

Written by

in

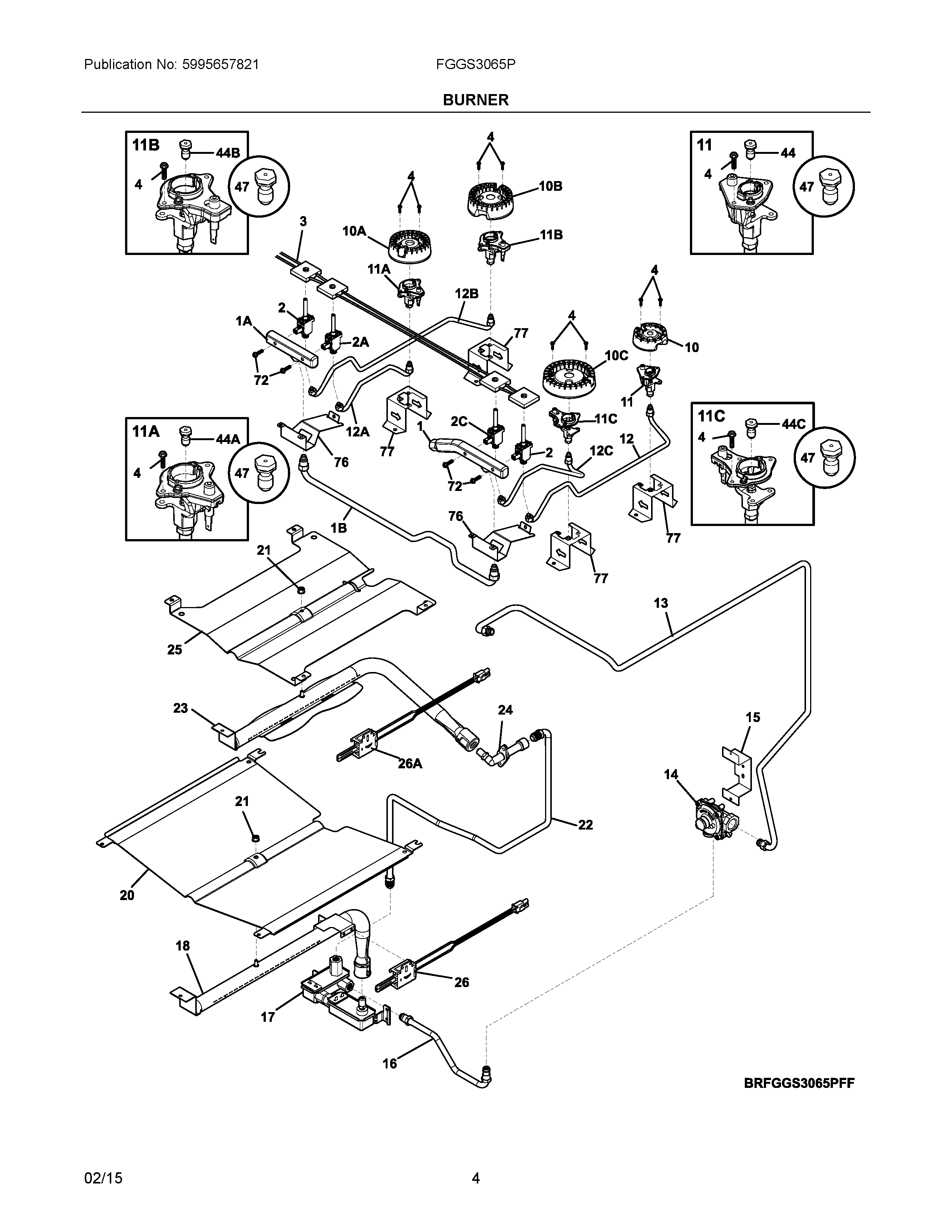

FGGS3065PBF 03 – BURNER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021109 Frigidaire Oven Screw
NI808041201 Frigidaire Oven Harness
NI316418901 Frigidaire Oven Screw
NI318199776 Frigidaire Electrical Harness
1BWCI 318913500
1WCI 318913400
1AWCI 318907200
2C316560902 Frigidaire Oven Valve
2A5303935305 Frigidaire Oven Valve
2316560900 Frigidaire Oven Valve
3WCI 5304491103
4316240600 Frigidaire Igniter Mounting Screw
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11B316543206 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11C316543203 Frigidaire Igniter Orifice Assembly
12B318916600 Frigidaire Oven Tube
12WCI 318916800
12C318916700 Frigidaire Oven Tube
12A318916500 Frigidaire Oven Tube
13WCI 318913600
14316091711 Frigidaire Regulator Assembly
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26139013700 Frigidaire Igniter
26A139013701 Frigidaire Igniter
44C316527509 Frigidaire Oven 18.2K Burner Orifice
44316527504 Frigidaire Oven Orifice
44B316527513 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
47318565405 Frigidaire Conversion Kit
72316215600 Frigidaire Oven Screw
76WCI 318906703
77WCI 318920300
