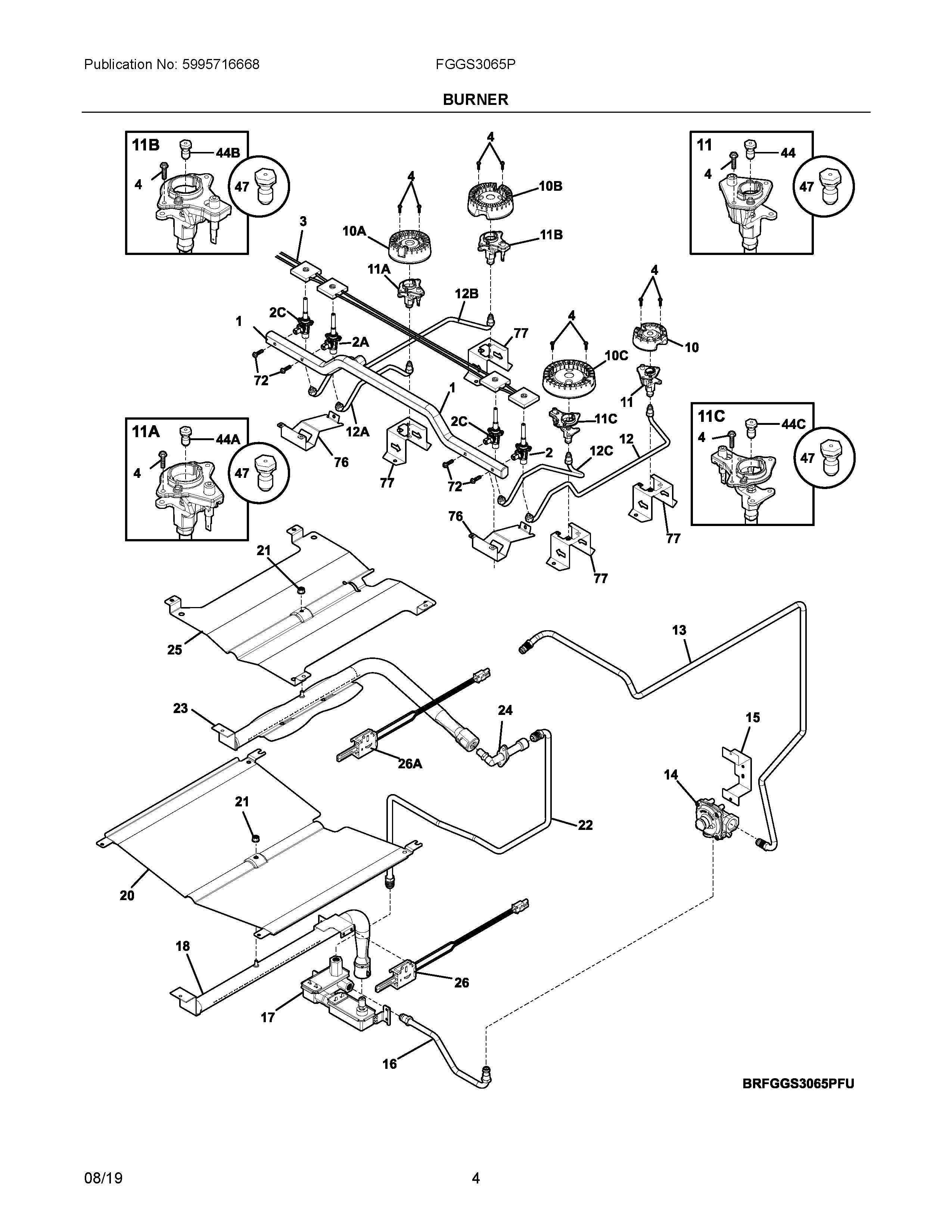

FGGS3065PBU 03 – BURNER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021109 Frigidaire Oven Screw
NI318199776 Frigidaire Electrical Harness
NI808041201 Frigidaire Oven Harness
NI316418901 Frigidaire Oven Screw
15304506502 Frigidaire Manifold Pipe
2A5304507282 Frigidaire Oven Gas Valve
25304506549 Frigidaire Oven Valve
2C5304506551 Frigidaire Oven Valve
35304509745 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10B316438600 Frigidaire Range Sealed Burner, 14K
11C316543203 Frigidaire Igniter Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
12C318916700 Frigidaire Oven Tube
12WCI 318916800
12B318916600 Frigidaire Oven Tube
12A318916500 Frigidaire Oven Tube
135304506712 Frigidaire Oven Tube
14316091711 Frigidaire Regulator Assembly
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26A139013701 Frigidaire Igniter
26139013700 Frigidaire Igniter
44316527504 Frigidaire Oven Orifice
44C316527509 Frigidaire Oven 18.2K Burner Orifice
44A316527500 Frigidaire Oven Burner Orifice
44B316527513 Frigidaire Oven Orifice
47318565405 Frigidaire Conversion Kit
72316215600 Frigidaire Oven Screw
76WCI 318906703
77WCI 318920300
