FGHB2866PE4 09 – ICE MAKER

FGHB2866PE4 09 – ICE MAKER

Written by

in

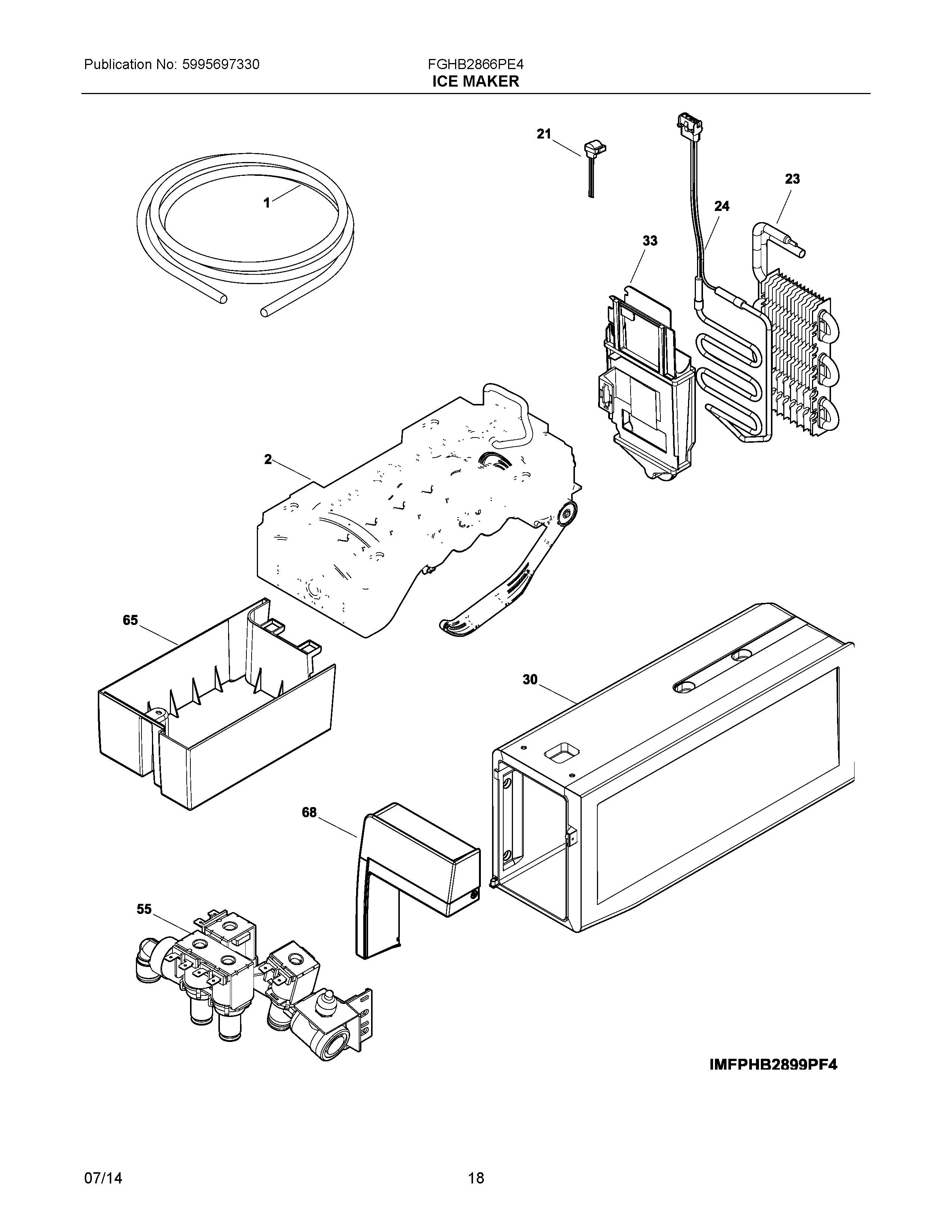

FGHB2866PE4 09 – ICE MAKER

Products

PositionProduct
NIA241953902 Frigidaire Refrigerator Screw
NIC241964707 Frigidaire Refrigerator Water Tube
NIA808714501 Frigidaire Refrigerator Harness
NIE5303918602 Frigidaire Refrigerator Water Tube Kit
NIB5303918784 Frigidaire Refrigerator Air Handler Housing
NIH242095425 Frigidaire Gasket
NIA242096001 Frigidaire Refrigerator Insulation
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID241965906 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NIA241844403 Frigidaire Refrigerator Tube
NI240396801 Frigidaire Refrigerator Tube Clamp
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIG242220204 Frigidaire Water Inlet Tube
NI241806601 Frigidaire Refrigerator Water Connector
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIF242200102 Frigidaire Refrigerator Clip
NIA241695906 Frigidaire Screw
NIA5304485759 Frigidaire Refrigerator Tape
1218976436 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918568 Frigidaire Thermostat Defrost
23242094603 Frigidaire Refrigerator Evaporator
24242094802 Frigidaire Defrost Heater
30242093501 Frigidaire Refrigerator Housing
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65808456301 Frigidaire Refrigerator Cover
68242095002 Frigidaire Refrigerator Cover
