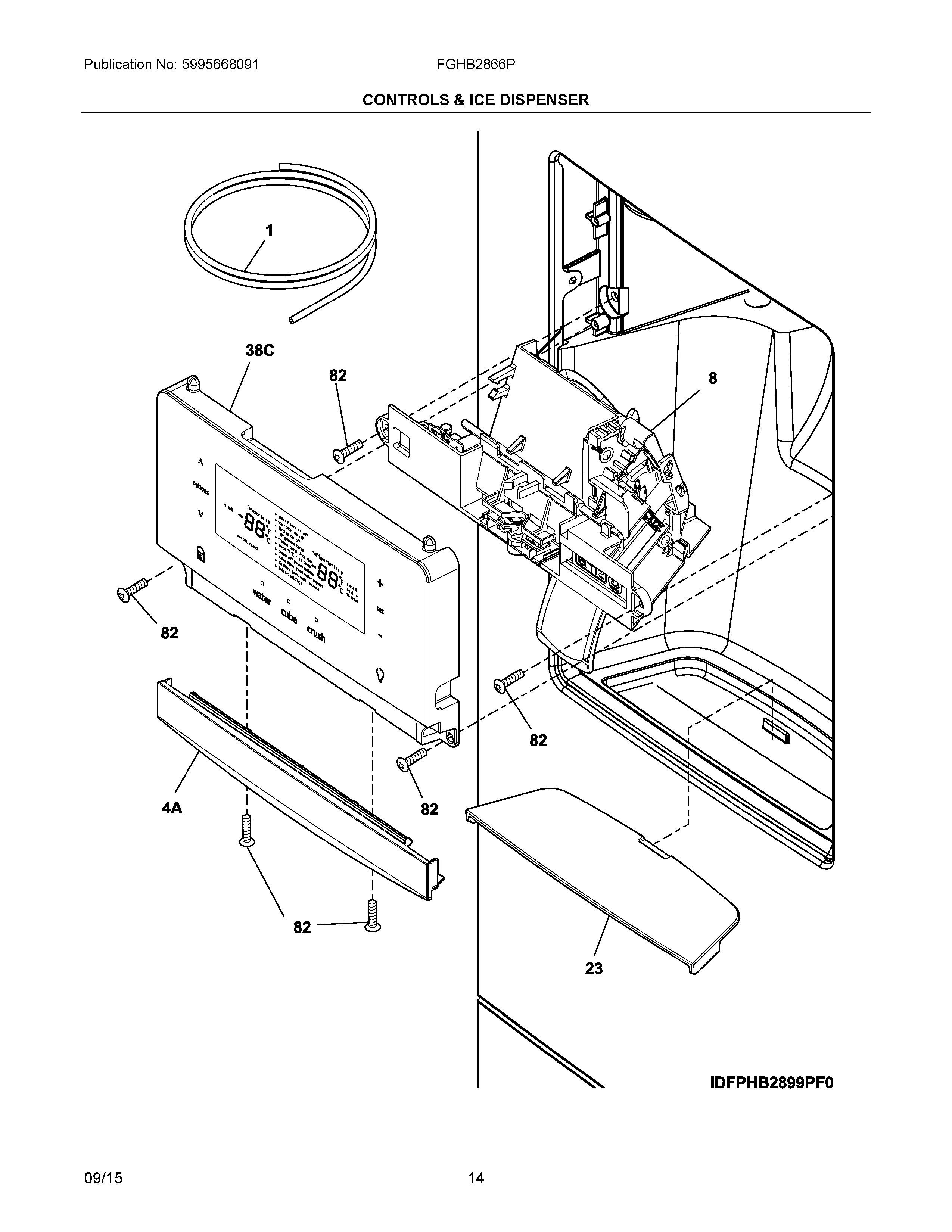

FGHB2866PE6A 07 – CONTROLS & ICE DISPENSER

FGHB2866PE6A 07 – CONTROLS & ICE DISPENSER

Written by

in

FGHB2866PE6A 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NID5303918602 Frigidaire Refrigerator Water Tube Kit
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI241806601 Frigidaire Refrigerator Water Connector
NI5304521784 Frigidaire Refrigerator Harness
NIA241920106 Frigidaire Fill Tube Kit
NIB241964707 Frigidaire Refrigerator Water Tube
NIC241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
1218976436 Frigidaire Refrigerator Water Inlet Tube
4A242194301 Frigidaire Refrigerator Trim
8242270106 Frigidaire Refrigerator Module
23242176502 Frigidaire Refrigerator Sump
38CUSER INTERFACE, ASSEMBLY
82241953902 Frigidaire Refrigerator Screw
