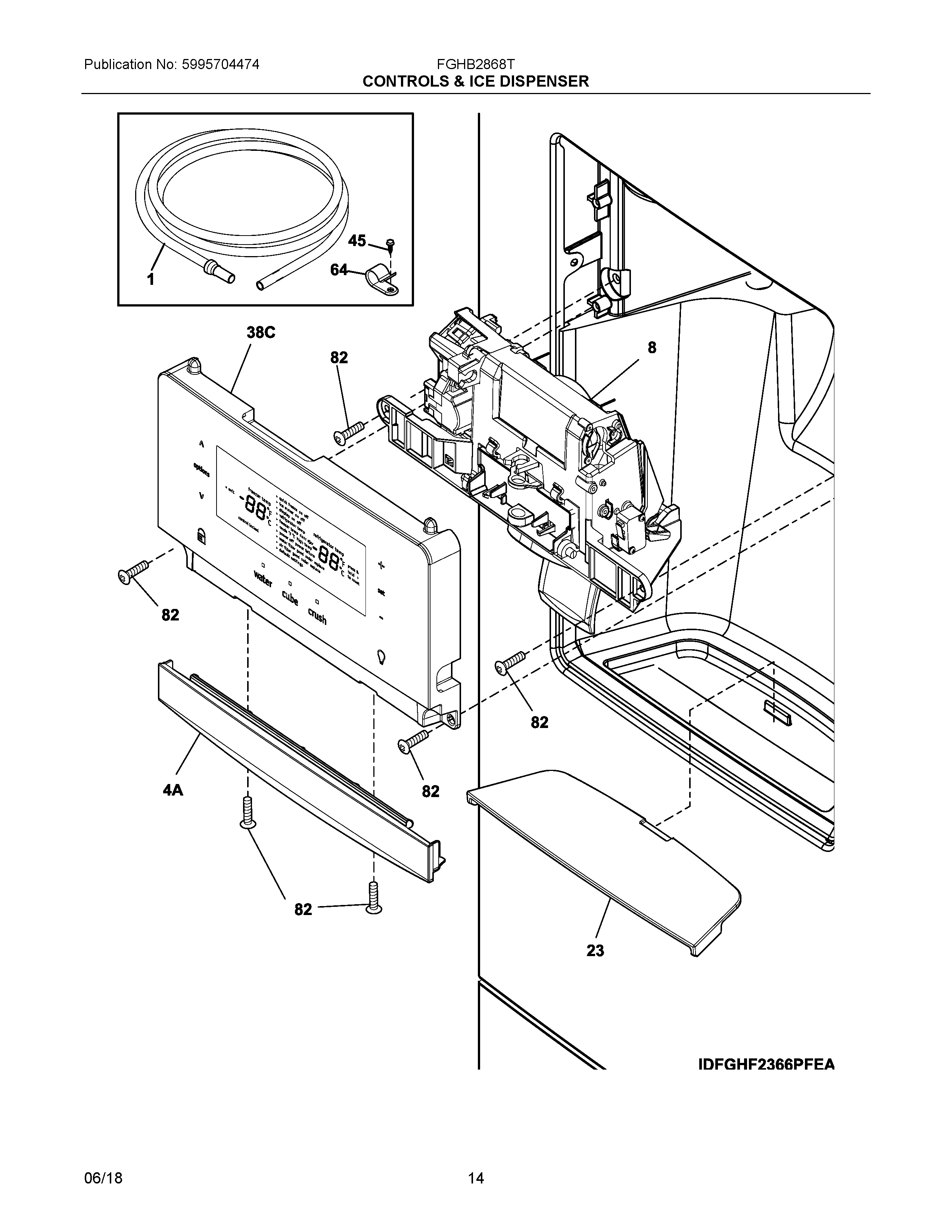

FGHB2868TD2 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NIC241953902 Frigidaire Refrigerator Screw
NIA218976436 Frigidaire Refrigerator Water Inlet Tube
NI5304521784 Frigidaire Refrigerator Harness
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI240451503 Frigidaire Refrigerator Screw
NIC242200102 Frigidaire Refrigerator Clip
NIB241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1241965906 Frigidaire Refrigerator Water Tube
4A242194302 Frigidaire TRIM
8242270106 Frigidaire Refrigerator Module
23SUMP, DISPENSER, GREY
38C5304513370 Frigidaire Refrigerator Control Assembly
455304455650 Frigidaire Refrigerator Screw
64240396801 Frigidaire Refrigerator Tube Clamp
