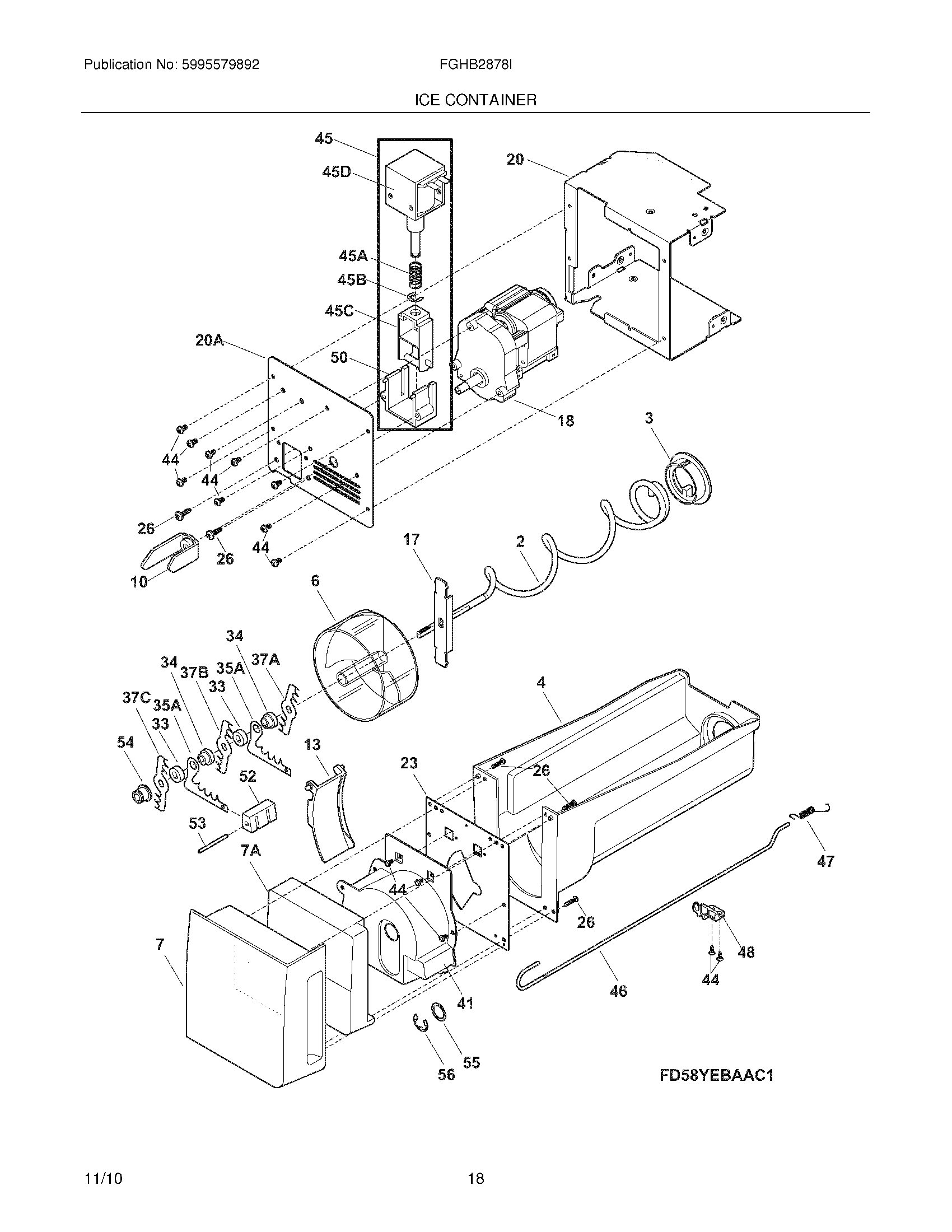

FGHB2878LE2 15 – ICE CONTAINER

Products

Position	Product
NI	WCI 242007101
NI	WCI 242030601
NI	WCI 241843301
2	AUGER-ICE
3	CAM-DRIVE
4	241816801 Frigidaire Refrigerator Ice Container
6	241829802 Frigidaire Drum Ice Dispenser
7A	WCI 241844201
7	WCI 241829702
10	241829001 Frigidaire Refrigerator Bar Drive
13	WCI 241829901
17	DRIVE BLADE
18	241816602 Frigidaire Refrigerator Motor-AUGER
20A	WCI 241843101
20	WCI 241828901
23	241829501 Frigidaire Refrigerator Plate-Front
26	241690602 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
35A	FIXED BLADE, ROUND
37C	BLADE, CRUSHER #3
37B	BLADE, CRUSHER #2
37A	BLADE, CRUSHER #1
41	WCI 241830001
44	218359202 Frigidaire Refrigerator Screw
45D	241675803 Frigidaire Refrigerator Freezer Ice Dispenser Solenoid
45	241675704 Frigidaire Refrigerator Solenoid Assembly
45C	241676101 Frigidaire Refrigerator Solenoid-Actuator
45B	241676001 Frigidaire Refrigerator E-Ring Solenoid
45A	241675902 Frigidaire Refrigerator Solenoid Spring
46	CONTROL ROD
47	241839001 Frigidaire Refrigerator Spring-Control Rod
48	241830101 Frigidaire Refrigerator Bracket-Control
50	241675601 Frigidaire Refrigerator Solenoid Guide
52	SPACER-FIXED BLADES
53	241869601 Frigidaire Refrigerator Pin
54	241829601 Frigidaire Refrigerator Nut-Auger
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
