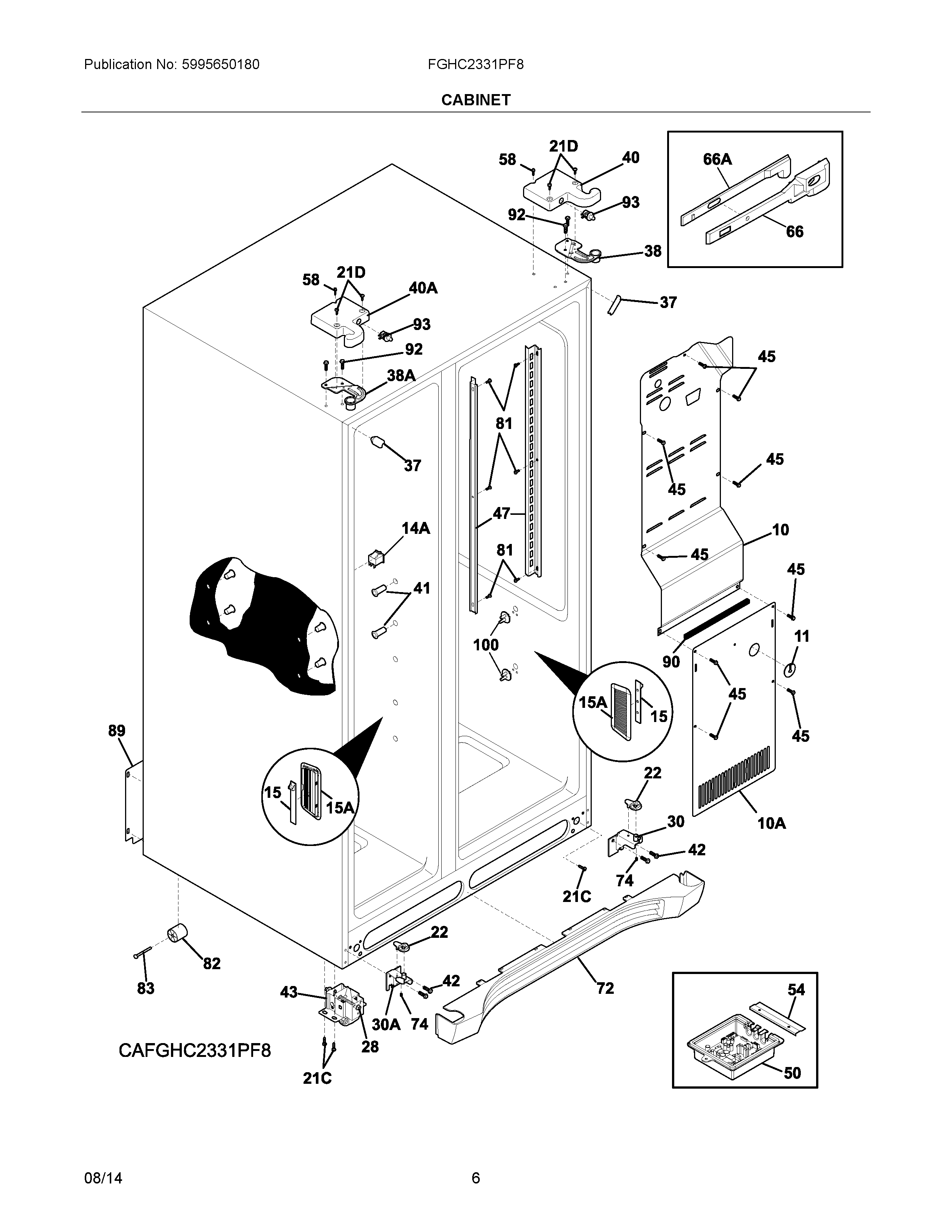

FGHC2331PF8 04 – CABINET

FGHC2331PF8 04 – CABINET

Written by

in

FGHC2331PF8 04 – CABINET

Products

Position	Product
NIA	241835801 Frigidaire Refrigerator Wiring Harness
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	240346703 Frigidaire Refrigerator Tape-Foam
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NIA	241852502 Frigidaire Refrigerator Clip
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	241891901 Frigidaire Refrigerator Wiring Harness
NI	241890604 Frigidaire Refrigerator Louver Assembly
NI	242125401 Frigidaire Refrigerator Scoop
NIC	242125501 Frigidaire Refrigerator Insulator
NI	240396801 Frigidaire Refrigerator Tube Clamp
10	WCI 241509804
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15	242196204 Frigidaire Refrigerator Light Board
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918004 Frigidaire Lower Hinge Bracket
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
40A	241946710 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	5304498781 Frigidaire Refrigerator Main Power Board
54	241532401 Frigidaire Refrigerator Channel
58	241548003 Frigidaire Refrigerator Screw
66A	WCI 241861201
66	241861301 Frigidaire Refrigerator Housing-Damper
72	241969405 Frigidaire Grille/Kickplate
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911705 Frigidaire Refrigerator Light Switch
100	CRISPER COVER SUPPORT
