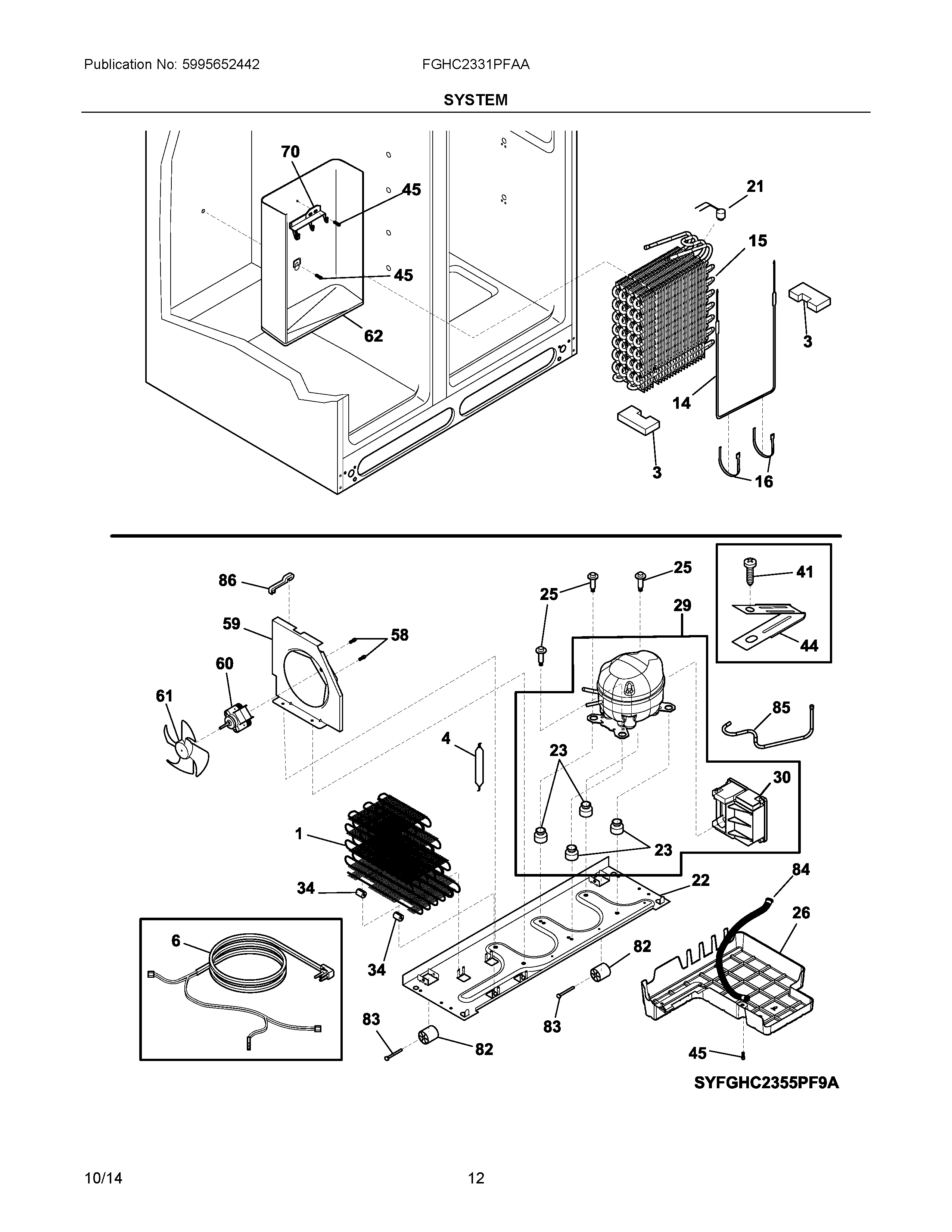

FGHC2331PFAA 07 – SYSTEM

FGHC2331PFAA 07 – SYSTEM

Written by

in

FGHC2331PFAA 07 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NI5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NIAWCI 241519902
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIBWCI 242141302
1242106605 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330012
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 240491503
26241697502 Frigidaire Pan-Defrost Drain
295304475104 Frigidaire Refrigerator Compressor Kit
305304512686 Frigidaire Refrigerator Inverter Kit
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304532798 Frigidaire Refrigerator Drain Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
85241856909 Frigidaire Refrigerator Connector Tube
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
