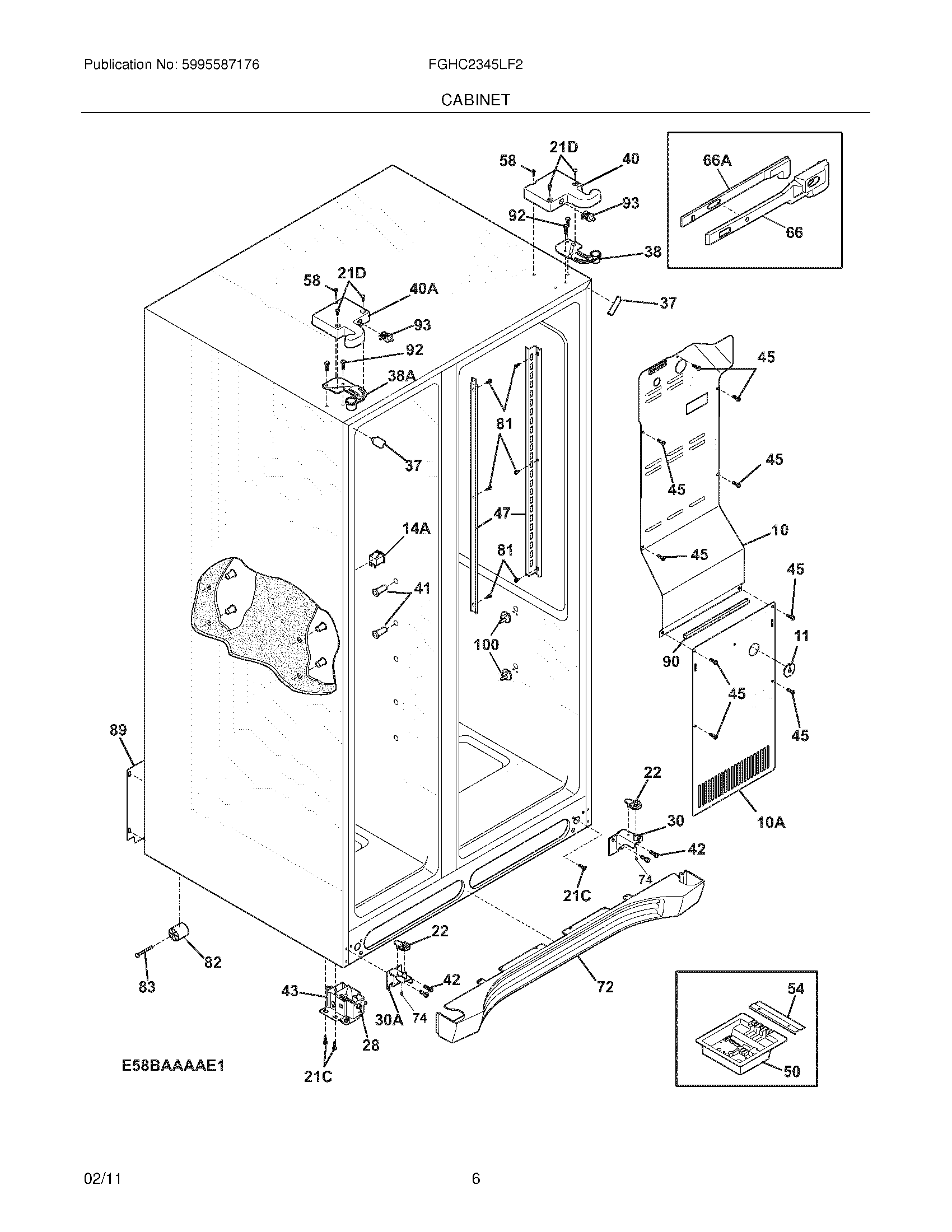

FGHC2345LF2 07 – CABINET

FGHC2345LF2 07 – CABINET

Written by

in

FGHC2345LF2 07 – CABINET

Products

Position	Product
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI	WCI 241867901
NI	242125401 Frigidaire Refrigerator Scoop
NI	240346703 Frigidaire Refrigerator Tape-Foam
NI	242125501 Frigidaire Refrigerator Insulator
NI	241852501 Frigidaire Refrigerator Clip
NI	241890604 Frigidaire Refrigerator Louver Assembly
NI	241835801 Frigidaire Refrigerator Wiring Harness
NI	241781601 Frigidaire Refrigerator Air Return Seal
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
10	WCI 241509804
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
21D	241548003 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918002 Frigidaire Refrigerator Lower Hinge
30	241918001 Frigidaire Lower Door Hinge
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	WCI 241946708
40	WCI 241946707
40A	241891901 Frigidaire Refrigerator Wiring Harness
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	5304497863 Frigidaire Refrigerator Main Power Board
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
66A	WCI 241861201
66	241861301 Frigidaire Refrigerator Housing-Damper
72	241969405 Frigidaire Grille/Kickplate
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911703 Frigidaire Refrigerator Switch
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
100	CRISPER COVER SUPPORT
