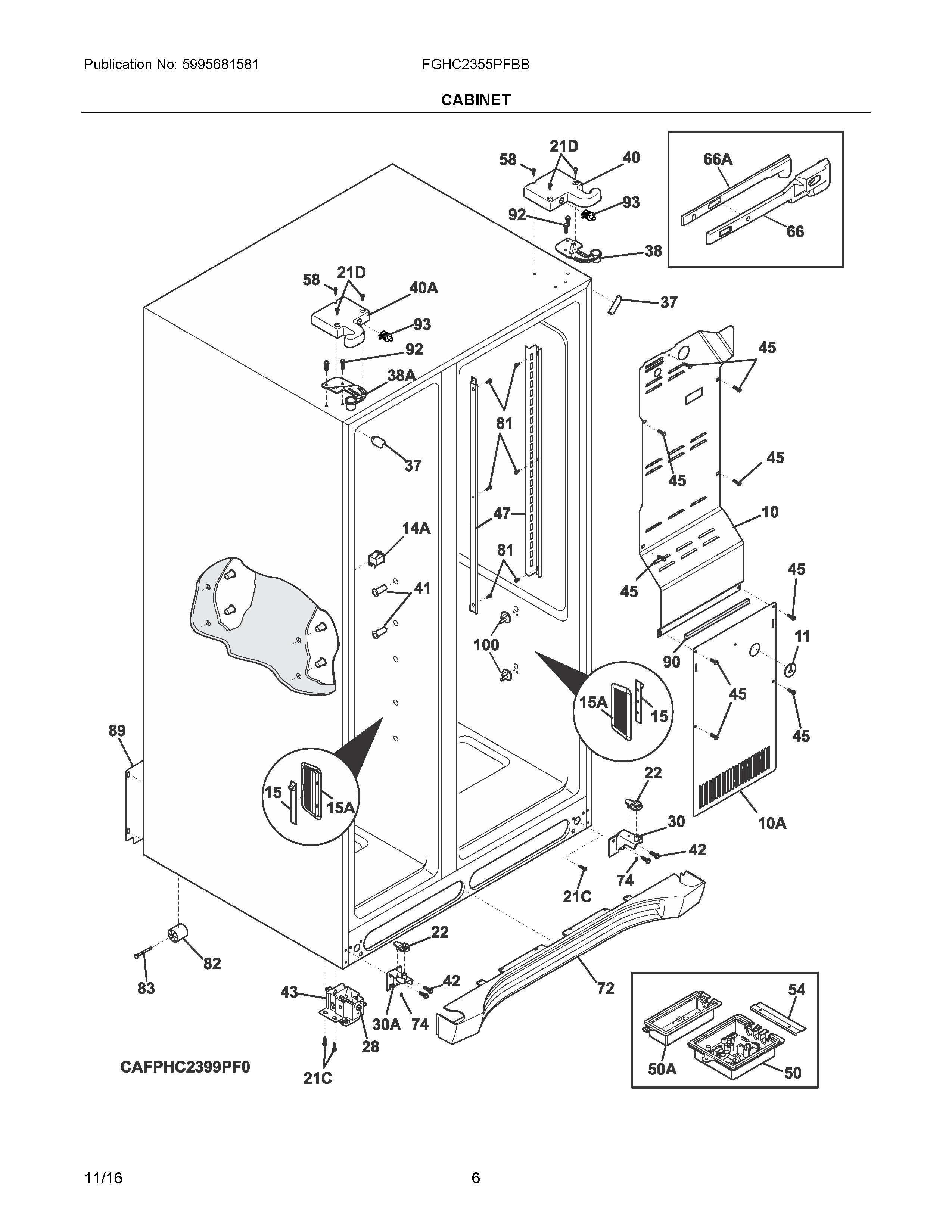

FGHC2355PFBB 04 – CABINET

FGHC2355PFBB 04 – CABINET

Written by

in

FGHC2355PFBB 04 – CABINET

Products

Position	Product
NIAA	241891901 Frigidaire Refrigerator Wiring Harness
NIA	241852502 Frigidaire Refrigerator Clip
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIAA	242285301 Frigidaire Clip
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NI	240494001 Frigidaire Refrigerator Plug Button
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NIA	240346703 Frigidaire Refrigerator Tape-Foam
NIA	241835801 Frigidaire Refrigerator Wiring Harness
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NIA	808835601 Frigidaire Refrigerator Harness
NI	242125401 Frigidaire Refrigerator Scoop
NIB	WCI 242036802
NI	241890604 Frigidaire Refrigerator Louver Assembly
NIC	242125501 Frigidaire Refrigerator Insulator
10	WCI 241509804
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15	242196204 Frigidaire Refrigerator Light Board
15A	242202701 Frigidaire Refrigerator Lens
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918004 Frigidaire Lower Hinge Bracket
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	241946710 Frigidaire Refrigerator Upper Hinge Cover
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513003 Frigidaire Refrigerator Shelf Mounting Channel
50A	241891610 Frigidaire Refrigerator Power Board
50	5304497863 Frigidaire Refrigerator Main Power Board
54	807854301 Frigidaire Refrigerator Support
58	241548003 Frigidaire Refrigerator Screw
66	241861301 Frigidaire Refrigerator Housing-Damper
66A	WCI 241861201
72	241969405 Frigidaire Grille/Kickplate
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911705 Frigidaire Refrigerator Light Switch
100	CRISPER COVER SUPPORT
