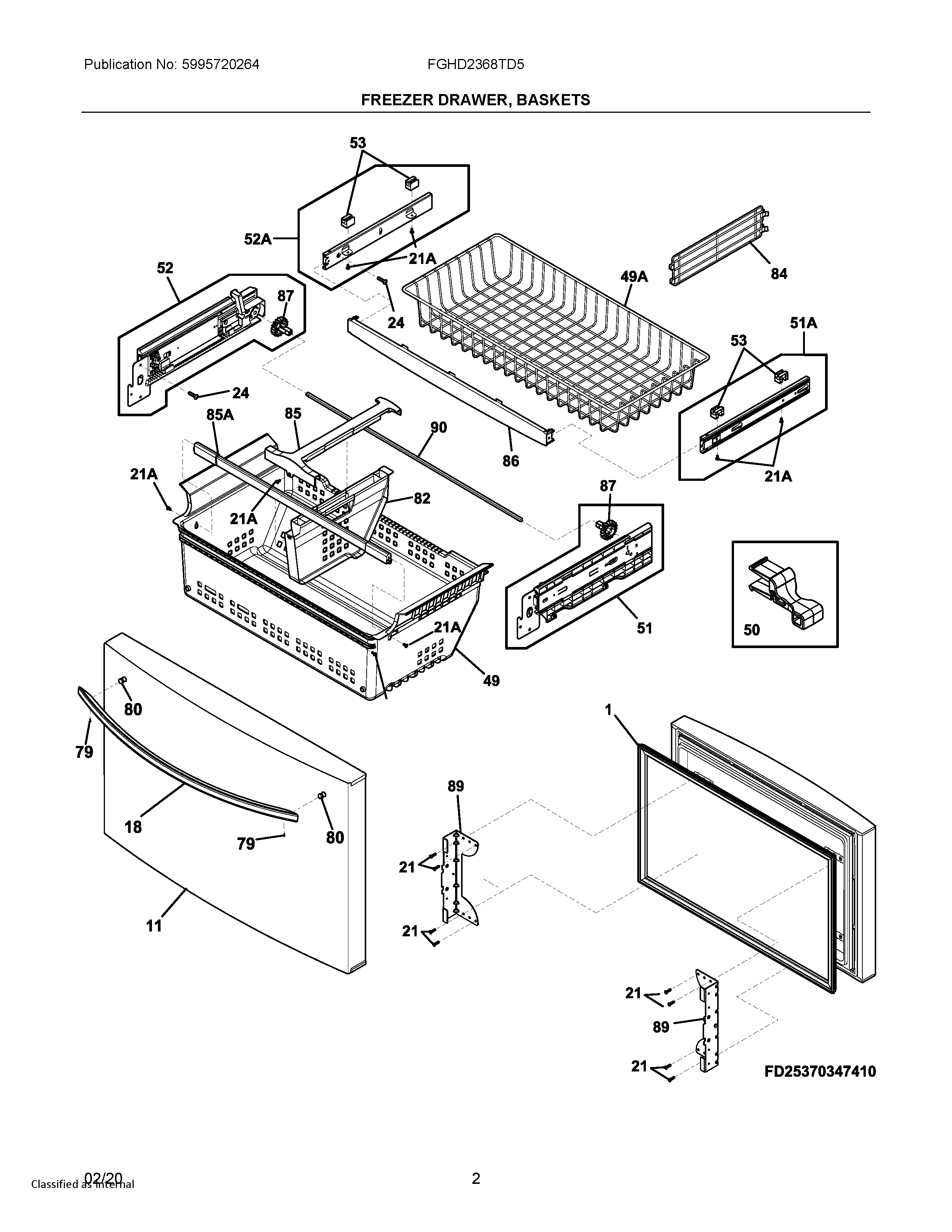

FGHD2368TD5 02 – FREEZER DRAWER, BASKETS

FGHD2368TD5 02 – FREEZER DRAWER, BASKETS

Written by

in

FGHD2368TD5 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIAA242039701 Frigidaire Refrigerator Screw
NIA5304508270 Frigidaire Wrench
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11DRAWER, BLK STN, FREEZER
18242029404 Frigidaire Refrigerator Door Handle
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
495304526200 Frigidaire Refrigerator Basket
49ABASKET-FRZR, UPPER
505304501271 Frigidaire Shelf Clip
51A5304508094 Frigidaire Refrigerator Assembly Slide
515304507977 Frigidaire Refrigerator Slide Assembly
525304507976 Frigidaire Refrigerator Assembly-Slide
52A5304508095 Frigidaire Refrigerator Slide Assembly
535303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
825304507996 Frigidaire Refrigerator Divider
84241780907 Frigidaire Refrigerator Divider
85242139401 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
875304507999 Frigidaire Refrigerator Pinion
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
