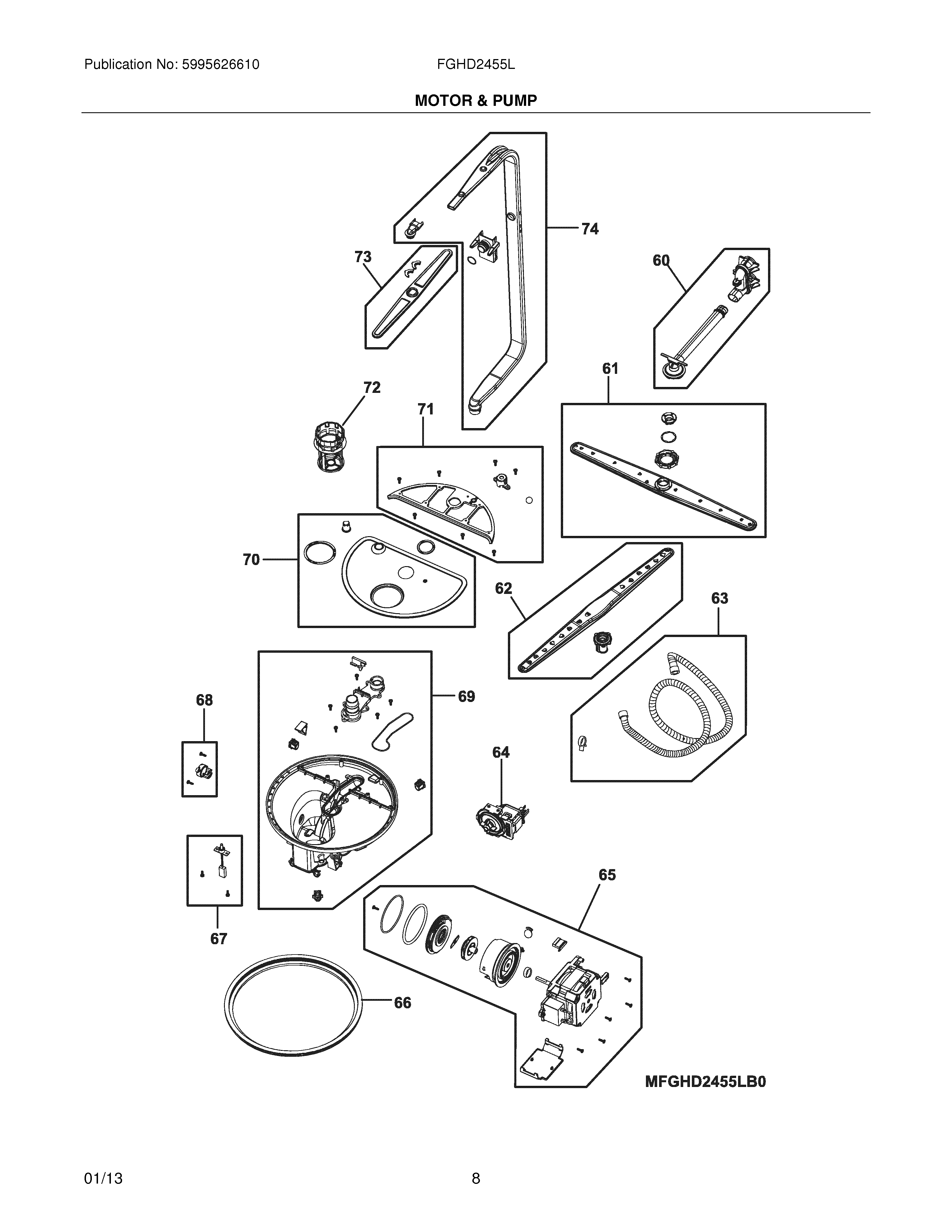

FGHD2455LB0 09 – MOTOR & PUMP

FGHD2455LB0 09 – MOTOR & PUMP

Written by

in

FGHD2455LB0 09 – MOTOR & PUMP

Products

PositionProduct
60DUCT ASSEMBLY, SPRAY ARM, MIDDLE
61SPRAY ARM ASSEMBLY, MIDDLE
62SPRAY ARM ASSEMBLY, LOWER
635304494065 Frigidaire Dishwasher Air Brake Drain Hose
645304524920 Frigidaire Dishwasher Water Pump
65MOTOR ASSEMBLY, WASH, W/SCREWS-SEALS
66WCI 5304475638
67WCI 5304475639
685304475640 Frigidaire Dishwasher Assembly-Sensor
695304480742 Frigidaire Dishwasher Sump Assembly
70FILTER ASSEMBLY, COARSE
71FILTER ASSEMBLY, FINE, W/SCREWS
725304475644 Frigidaire Dishwasher Trap
73SPRAY ARM ASSEMBLY, UPPER
745304480745 Frigidaire Dishwasher Assembly-Tube
