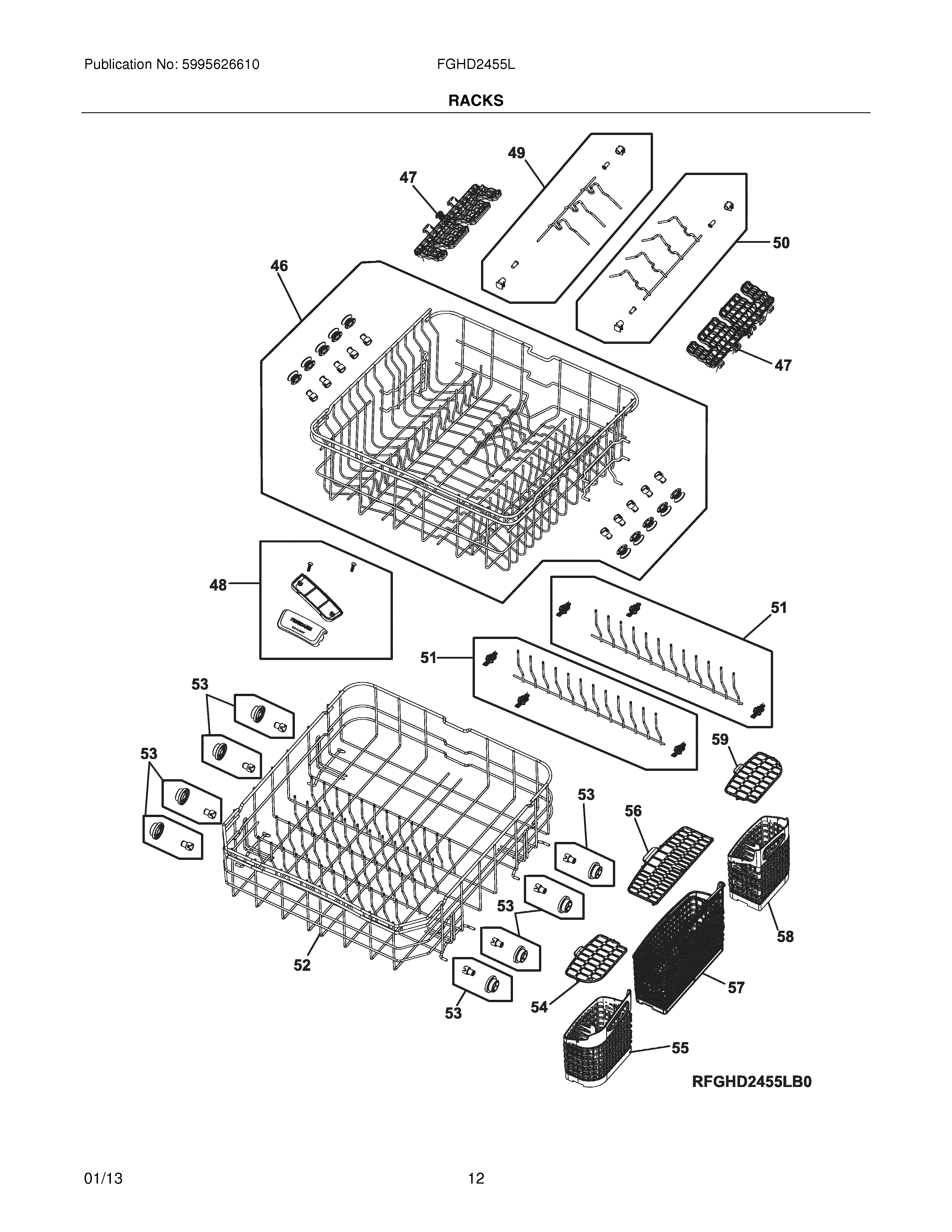

FGHD2455LB0 13 – RACKS

Products

PositionProduct
46RACK ASSEMBLY, UPPER, W/ROLLERS
47SHELF, CUP
48HANDLE ASSEMBLY, UPPER RACK, W/SCREWS
49FENCE ASSEMBLY, LH, W/BUSHINGS
50FENCE ASSEMBLY, RH, W/BUSHINGS
51FENCE ASSEMBLY, FOLD DOWN, W/BRACKETS
525304518472 Frigidaire Dishwasher Rack Assembly
535304475625 Frigidaire Assembly Wheel
555304535382 Frigidaire Basket Assembly
56COVER, MIDDLE BASKET
