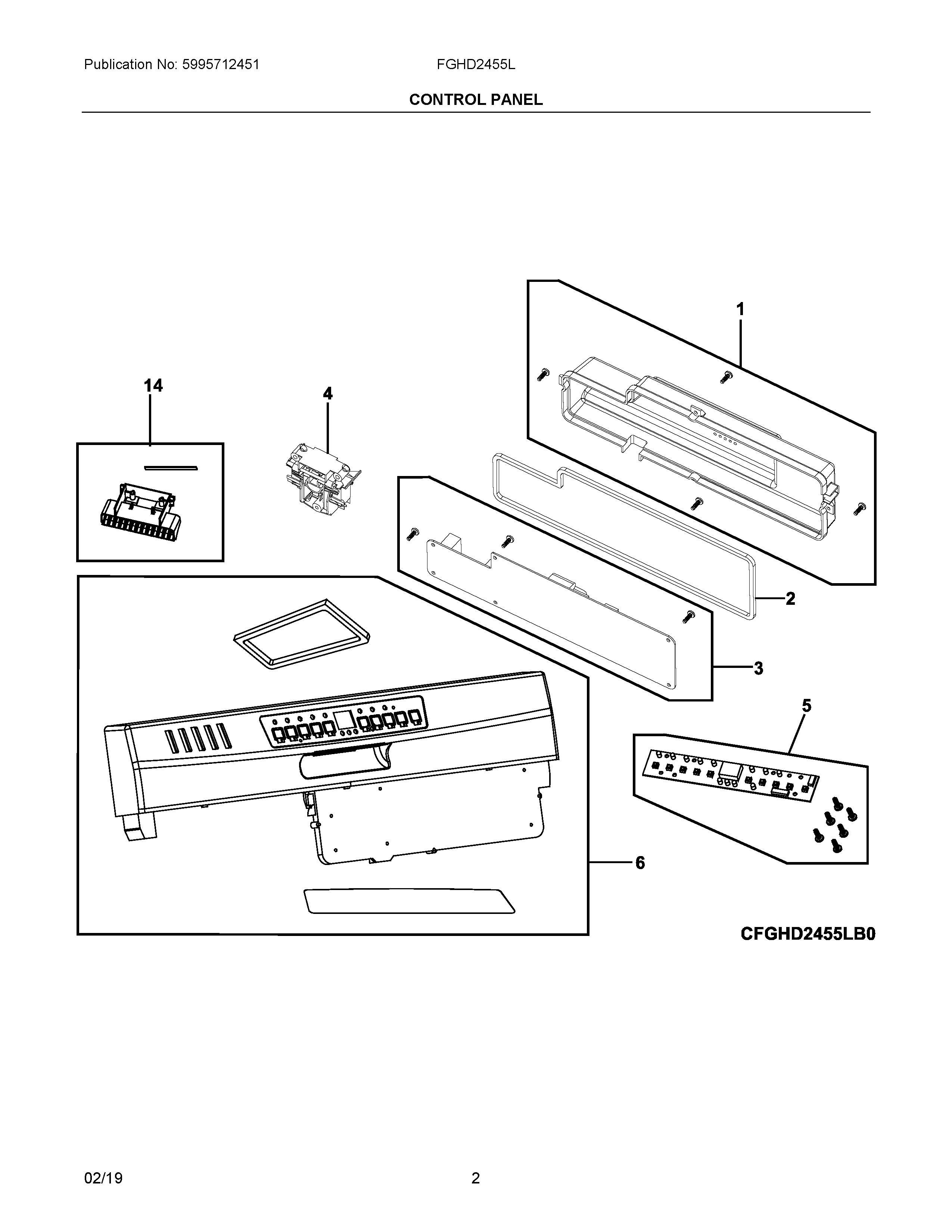

FGHD2455LB1A 02 – CONTROL PANEL

Written by

Products

Position	Product
NI	5304480731 Frigidaire Harness
NI	ENERGY GUIDE
1	WCI 5304475567
2	WCI 5304475568
3	PC BOARD ASSEMBLY, MAIN, W/SCREWS
4	5304475570 Frigidaire Dishwasher Door Latch
5	5304480722 Frigidaire Dishwasher PC Board Assembly
6	CONSOLE ASSEMBLY, BLACK, W/OVERLAY
14	HANDLE ASSEMBLY, LATCH, BLACK, W/GASKET
