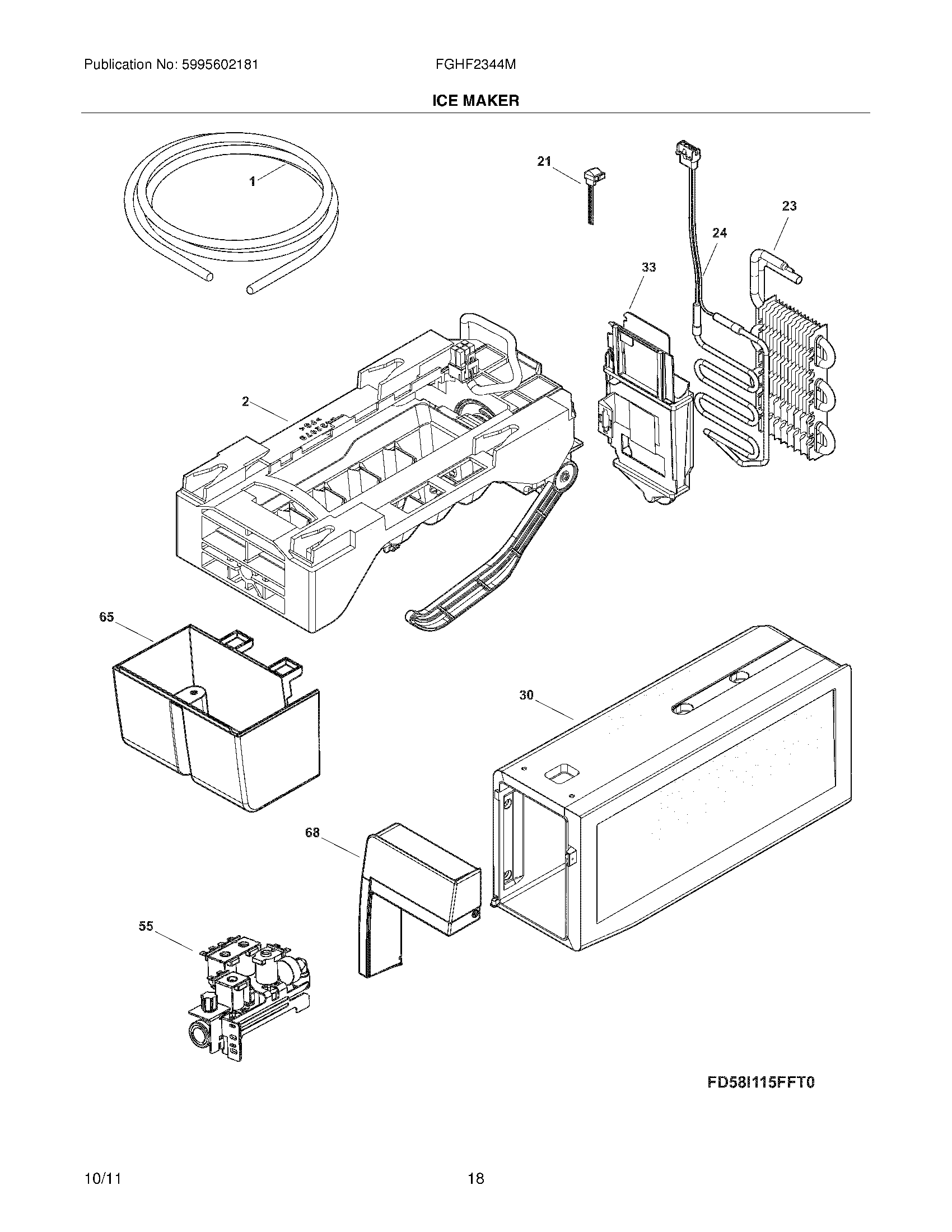

FGHF2344ME1 17 – ICE MAKER

Products

Position	Product
NI	241953902 Frigidaire Refrigerator Screw
NI	242095425 Frigidaire Gasket
NI	242096001 Frigidaire Refrigerator Insulation
NI	5303918484 Frigidaire Dispenser
NI	242095406 Frigidaire Refrigerator Gasket
NI	242082103 Frigidaire Refrigerator Tube
NI	Tube-water inlet,44`` ,blue ,valve to I.M.
NI	WCI 241518001
NI	5303918446 Frigidaire Refrigerator Heat Exchanger
NI	Tube-water,1/4 - 24`` ,green
NI	Tube-water,5/16 - 67`` ,natural
NI	5303918571 Frigidaire Refrigerator Water Fill Chute Ki
NI	5303918784 Frigidaire Refrigerator Air Handler Housing
NI	5303918602 Frigidaire Refrigerator Water Tube Kit
NI	241806601 Frigidaire Refrigerator Water Connector
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	241920106 Frigidaire Fill Tube Kit
NI	241844403 Frigidaire Refrigerator Tube
NI	242220204 Frigidaire Water Inlet Tube
NI	241641502 Frigidaire Refrigerator Screw
NI	241695906 Frigidaire Screw
NI	240363602 Frigidaire Refrigerator Shoulder Screw
1	WCI 218976426
2	243297613 Frigidaire Refrigerator Ice Maker
21	5303918568 Frigidaire Thermostat Defrost
23	5303918567 Frigidaire Refrigerator Evaporator Kit
24	242094802 Frigidaire Defrost Heater
30	242100402 Frigidaire Refrigerator Housing Assembly
33	HOUSING-EVAPORATOR
55	QUAD WATER VALVE
65	242232701 Frigidaire Refrigerator Cover
68	242095002 Frigidaire Refrigerator Cover
