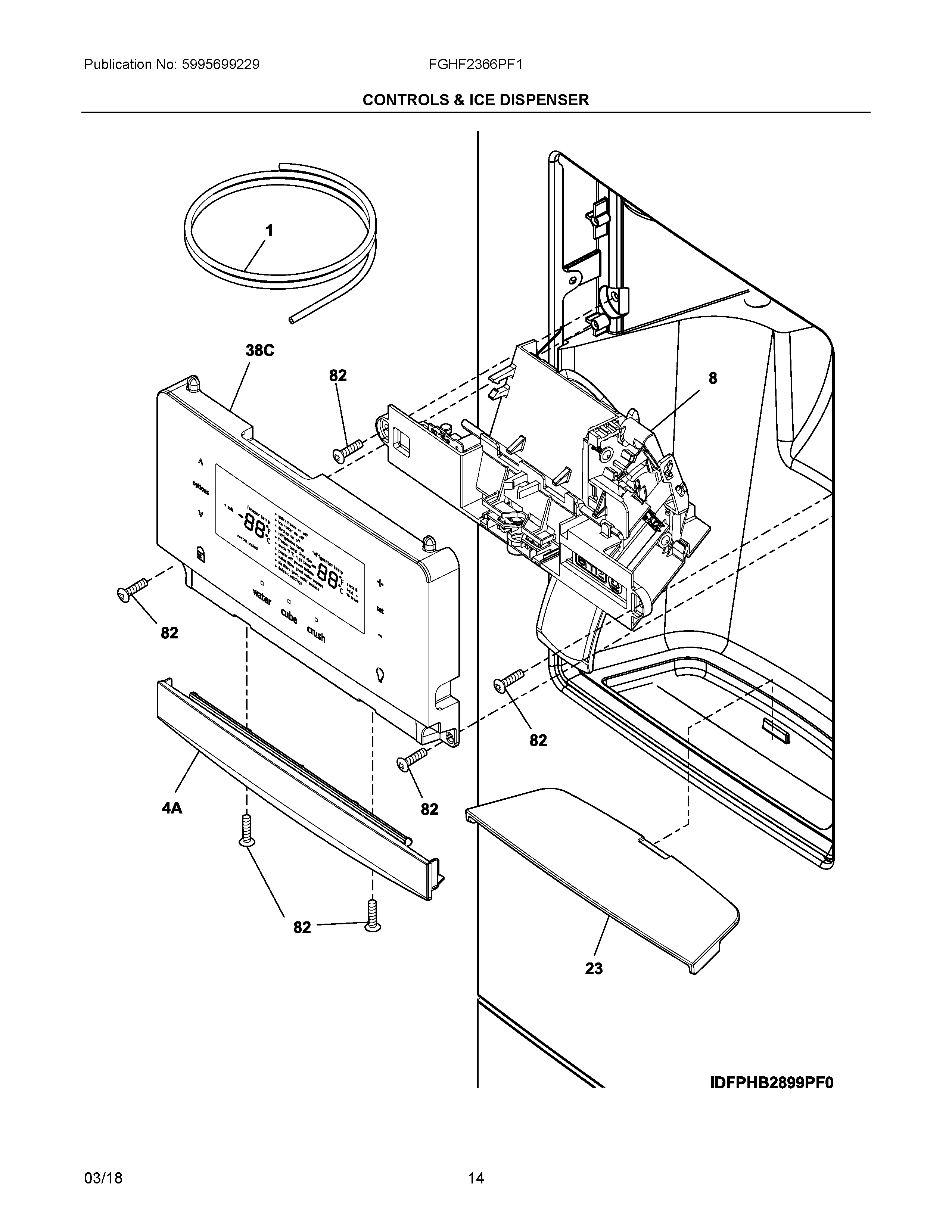

FGHF2366PF1 07 – CONTROLS & ICE DISPENSER

FGHF2366PF1 07 – CONTROLS & ICE DISPENSER

Written by

in

FGHF2366PF1 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI241806601 Frigidaire Refrigerator Water Connector
NIA241920106 Frigidaire Fill Tube Kit
NIB241964707 Frigidaire Refrigerator Water Tube
NID5303918602 Frigidaire Refrigerator Water Tube Kit
NI5303918484 Frigidaire Dispenser
NIWCI 5303918586
NIC241965906 Frigidaire Refrigerator Water Tube
1218976435 Frigidaire Refrigerator Water Inlet Tube
4A242194301 Frigidaire Refrigerator Trim
8242074216 Frigidaire Refrigerator Dispenser Module
23242176503 Frigidaire Refrigerator Sump
38CUSER INTERFACE, ASSEMBLY, COMPLETE, W/GASKET
82241953902 Frigidaire Refrigerator Screw
