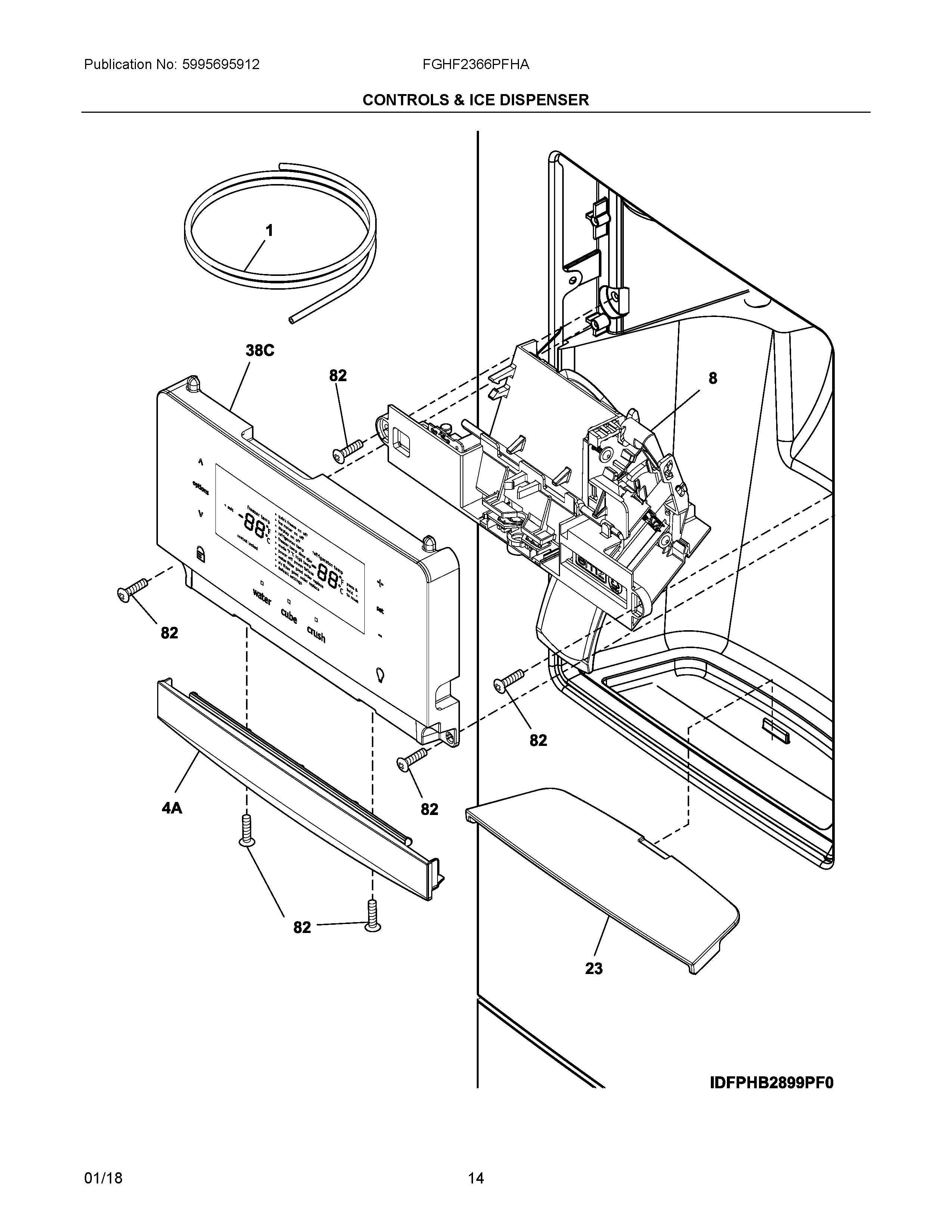

FGHF2366PFHA 07 – CONTROLS & ICE DISPENSER

FGHF2366PFHA 07 – CONTROLS & ICE DISPENSER

Written by

in

FGHF2366PFHA 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NICA241953902 Frigidaire Refrigerator Screw
NI5303918484 Frigidaire Dispenser
NID241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIE5303918602 Frigidaire Refrigerator Water Tube Kit
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NI5304521784 Frigidaire Refrigerator Harness
NI241510904 Frigidaire Refrigerator Dispenser Harness
NI241806601 Frigidaire Refrigerator Water Connector
NIF242200102 Frigidaire Refrigerator Clip
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NIA218976435 Frigidaire Refrigerator Water Inlet Tube
4A242194301 Frigidaire Refrigerator Trim
8242270106 Frigidaire Refrigerator Module
23242176503 Frigidaire Refrigerator Sump
38C5304508115 Frigidaire Refrigerator Control Assembly
