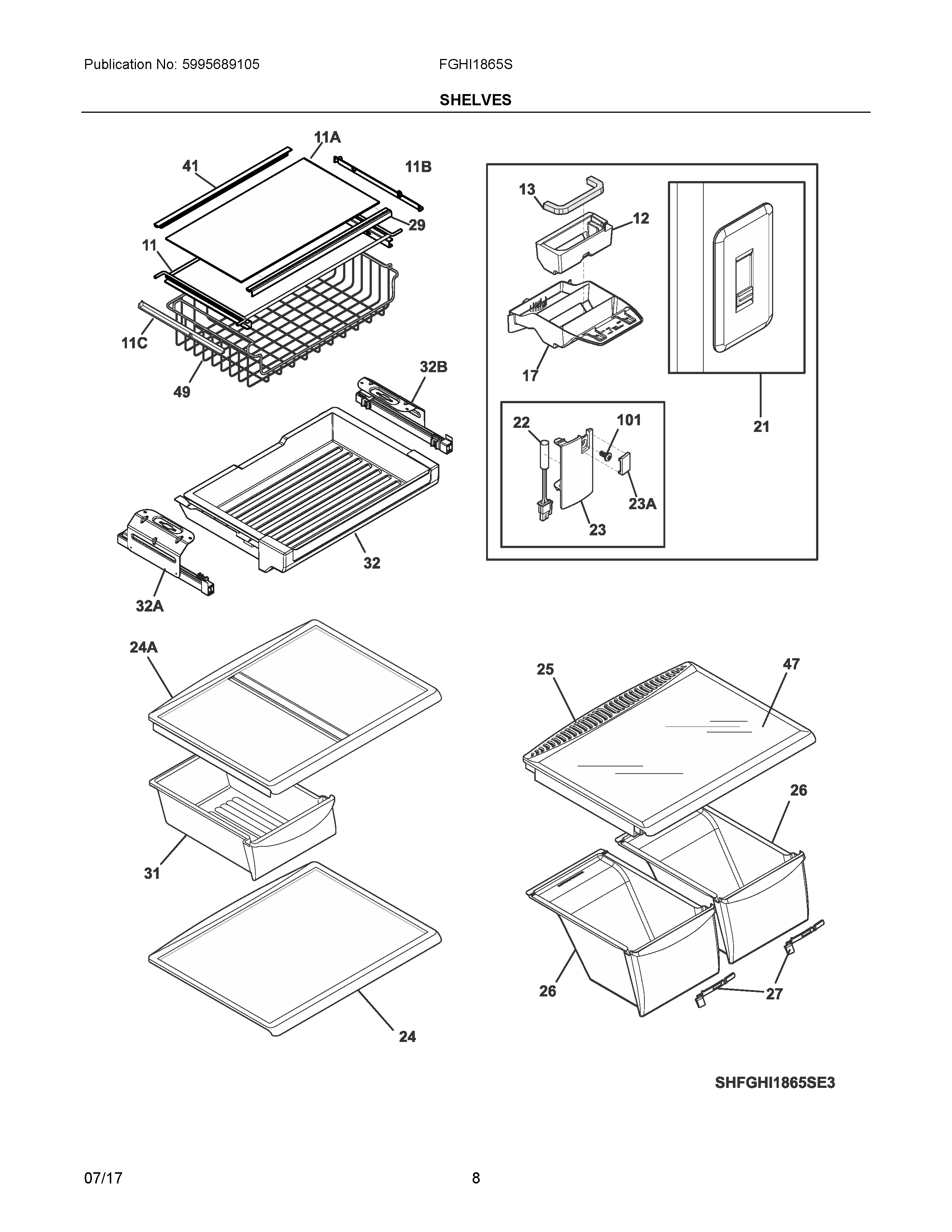

FGHI1865SE5 04 – SHELVES

FGHI1865SE5 04 – SHELVES

Written by

in

FGHI1865SE5 04 – SHELVES

Products

PositionProduct
NILABEL, ENERGY GUIDE
NIA5303299664 Frigidaire Refrigerator Spacer-Shelf
11CCOVER, HANGER LH, WIRE BASKET
11BCOVER, HANGER RH, WIRE BASKET
11AGLASS-SHELF, FULL SHELF
11FRAME-SHELF, FULL WIDTH
12WCI 242248501
13WCI 240568608
17HOUSING, AIR & WATER
21242249002 Frigidaire Refrigerator Control Assembly
22240597220 Frigidaire Sensor
23A241969001 Frigidaire Refrigerator Cap
23241842301 Frigidaire Refrigerator Thermistor Cap
24240358926 Frigidaire Safe Spill Shelf
25242201802 Frigidaire Refrigerator Crisper Pan Cover
26242218505 Frigidaire Refrigerator Pan
27242215901 Frigidaire Refrigerator Slide
29TRIM-SHELF, FRONT
31MEAT PAN
32BIN ASSEMBLY, UNDER MULLION
32ASLIDE BRACKET, ASSEMBLY, LH, BIN
32BSLIDE BRACKET, ASSEMBLY, RH, BIN
41TRIM-SHELF, REAR
47CRISPER COVER GLASS INSERT
495304499451 Frigidaire Freezer Basket
101241953902 Frigidaire Refrigerator Screw
