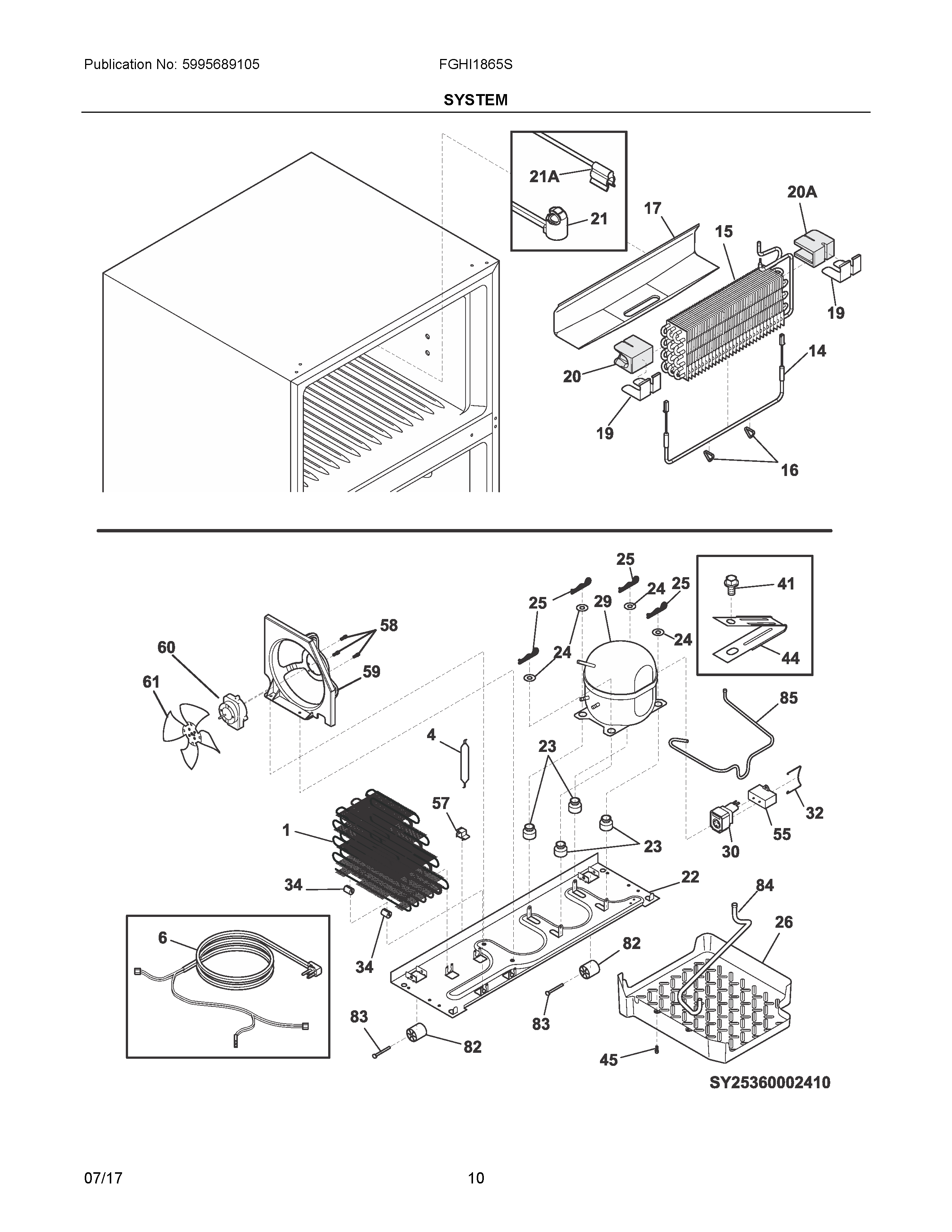

FGHI1865SP5 05 – SYSTEM

FGHI1865SP5 05 – SYSTEM

Written by

in

FGHI1865SP5 05 – SYSTEM

Products

PositionProduct
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 5303918222
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI218843801 Frigidaire Refrigerator Screw
NIA218252201 Frigidaire Refrigerator Screw
15304502821 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6241872713 Frigidaire Refrigerator Harness
14242044008 Frigidaire Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
19242320401 Frigidaire Refrigerator Shield
205304527429 Frigidaire Refrigerator Block
20A5304527430 Frigidaire Refrigerator Block
22241665606 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304537072 Frigidaire Compressor with Clip, Em2Z70Hlt
30241941005 Frigidaire Refrigerator Start Device
32297030500 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59242050604 Frigidaire Refrigerator Shroud
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85TUBE-CONNECTOR, SUCTION
