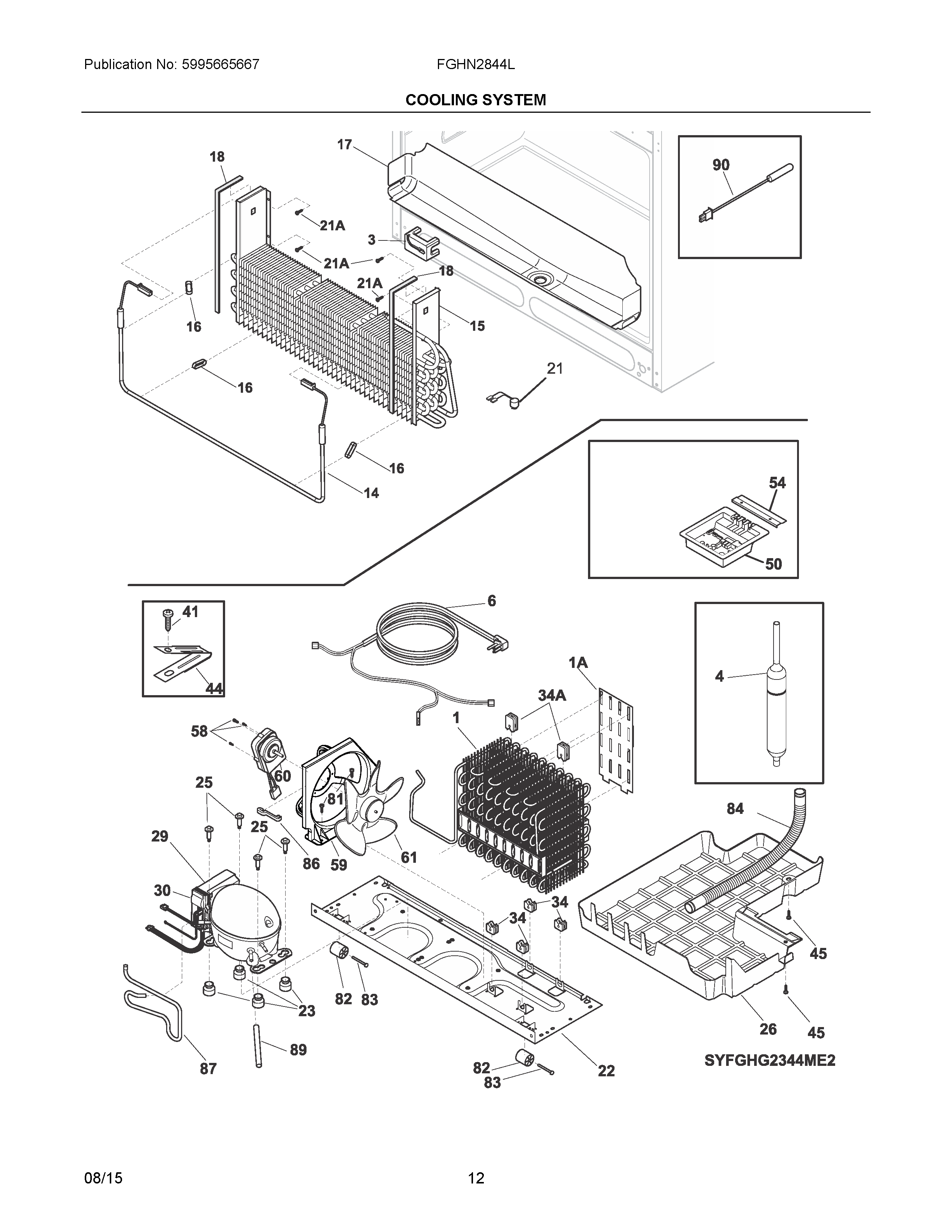

FGHN2844LE8 06 – COOLING SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NI	241947701 Frigidaire Refrigerator Spacer
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	5303918445 Frigidaire Refrigerator Heat Exchanger
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NI	WCI 5303918428
NIA	WCI 242141202
NIA	242104901 Frigidaire Refrigerator Wiring Harness
NI	218515401 Frigidaire Refrigerator Clip
1A	241987301 Frigidaire Refrigerator Deflector-Air
1	241862903 Frigidaire Refrigerator Condenser
3	241838401 Frigidaire Refrigerator Block-Evaporator Coil
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5303918410 Frigidaire Refrigerator Defrost Heater Kit
15	242044501 Frigidaire Refrigerator Evaporator
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241791201 Frigidaire Refrigerator Trough-Drain
18	241860101 Frigidaire Refrigerator Gasket
21	242046001 Frigidaire Refrigerator Defrost Thermostat
21A	218362501 Frigidaire Refrigerator Screw
22	241602112 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241920609 Frigidaire PAN-DEFROST SXS SD
29	5303918437 Frigidaire Refrigerator Compressor Kit
30	241577505 Frigidaire Refrigerator Inverter
34	241929901 Frigidaire GROMMET-COND MTG
34A	241929902 Frigidaire Condenser Mounting Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
50	5303918506 Frigidaire Refrigerator Switch Board
54	241532401 Frigidaire Refrigerator Channel
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	240359403 Frigidaire Refrigerator Fan Shroud Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241830904 Frigidaire Refrigerator Drain Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
87	WCI 241846302
89	WCI 215346900
90	240597220 Frigidaire Sensor
