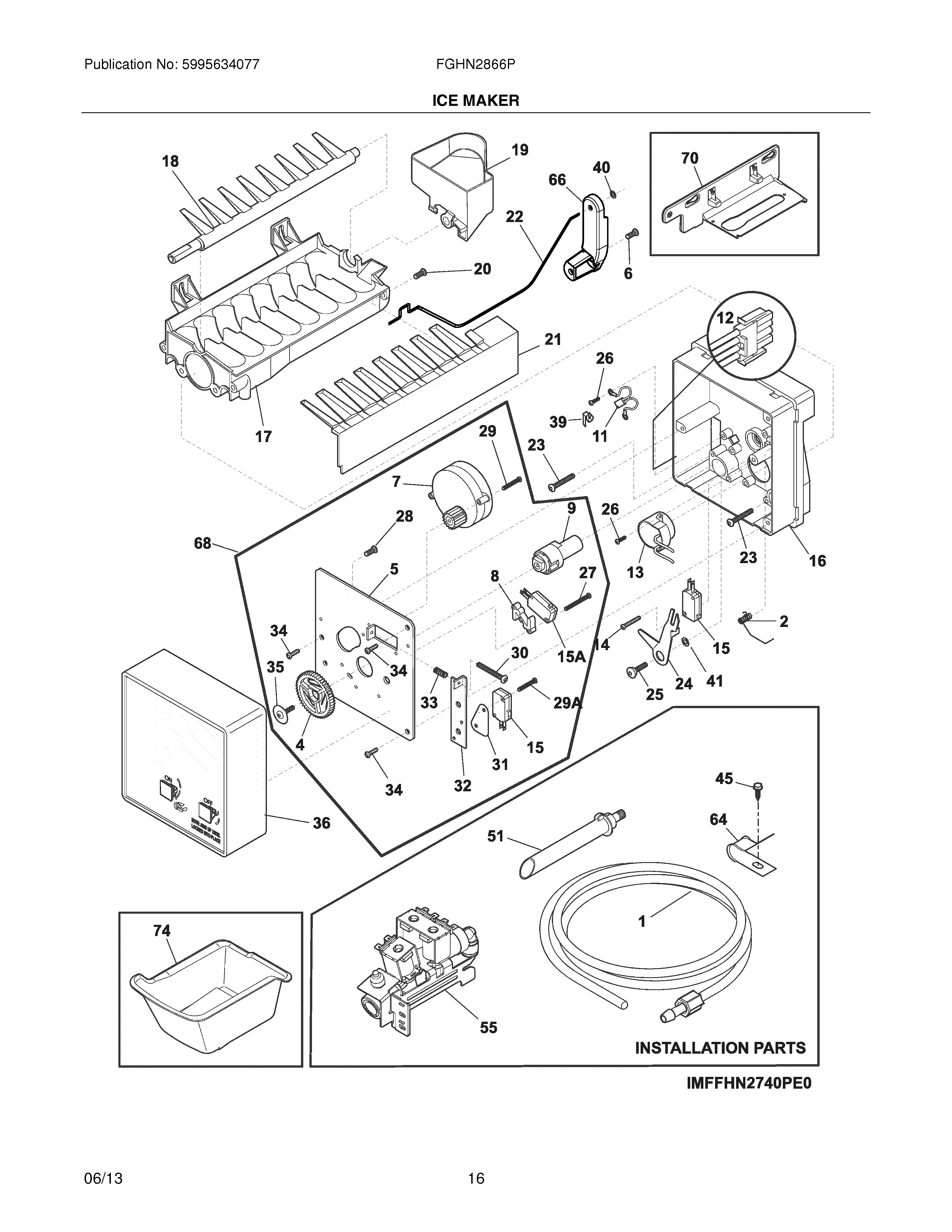

FGHN2866PE1 15 – ICE MAKER

Products

Position	Product
NI	5304515677 Frigidaire Package of 4 Screws
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	WCI 5304469406
NI	5303918493 Frigidaire Refrigerator Ice Maker Assembly
1	242220204 Frigidaire Water Inlet Tube
2	WCI 5304469396
4	5304469403 Frigidaire Gear
5	WCI 5304469399
6	218359202 Frigidaire Refrigerator Screw
7	5304469407 Frigidaire Refrigerator Ice Maker Motor
8	WCI 5304469404
9	WCI 5304469402
11	WCI 5304455695
12	WCI 5304469390
13	WCI 5304469387
14	Screw
15	WCI 5304469388
15A	WCI 5304469405
16	WCI 5304469379
17	5304469413 Frigidaire Refrigerator Mold-Ice Maker
18	WCI 5304469384
19	WCI 242051201
20	5304480396 Frigidaire Screw
21	WCI 5304469378
22	WCI 242051301
23	WCI 5304469392
24	WCI 5304469382
25	WCI 5304469397
26	WCI 5304469393
27	WCI 5304469410
29A	Screw
29	WCI 5304469409
30	Screw-timing adj
31	5304469389 Frigidaire Switch Spacer
32	WCI 5304469400
33	WCI 5304469401
34	WCI 5304469380
35	WCI 5304469411
36	WCI 5304469385
39	WCI 5304469383
40	WCI 5304458401
41	WCI 5304469381
45	5303307980 Frigidaire Oven Screw
51	5303918603 Frigidaire Refrigerator Water Tube Kit
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
64	5304455846 Frigidaire Refrigerator Clamp
66	WCI 242060701
68	WCI 5304469398
70	242041701 Frigidaire Refrigerator Ice Maker Bracket
74	242127901 Frigidaire Refrigerator Ice Container
