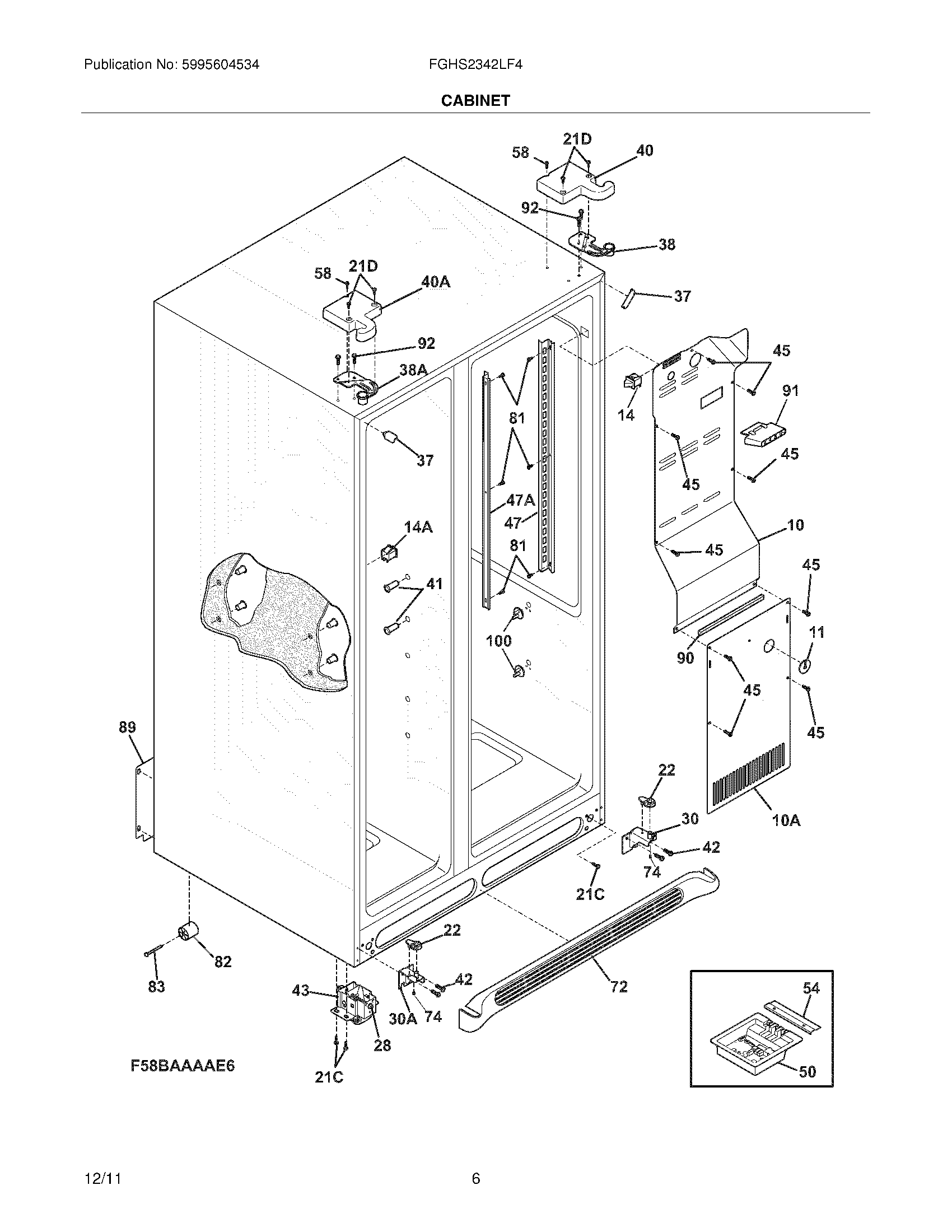

FGHS2342LF4 07 – CABINET

FGHS2342LF4 07 – CABINET

Written by

in

FGHS2342LF4 07 – CABINET

Products

PositionProduct
NI241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10A241719710 Frigidaire Refrigerator Cover-Evaporator
10240435911 Frigidaire Refrigerator Cover
115303208309 Frigidaire Refrigerator Plug Hole
14A242060201 Frigidaire Refrigerator Switch-Light/Lamp
14240505801 Frigidaire Light Switch
21C218252201 Frigidaire Refrigerator Screw
21D218781101 Frigidaire Handle Screw
22241917801 Frigidaire Refrigerator Closer Plate
30A241918002 Frigidaire Refrigerator Lower Hinge
30241918001 Frigidaire Lower Door Hinge
37242161206 Frigidaire Refrigerator Cabinet Corner Trim
38241761301 Frigidaire Upper Bracket Hinge
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40241946719 Frigidaire Refrigerator Upper Hinge Cover
40A241946720 Frigidaire Refrigerator Upper Hinge Cover
41241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
47AWCI 242001901
47WCI 242001902
505303918525 Frigidaire Refrigerator Switch Board
54241532401 Frigidaire Refrigerator Channel
58241548003 Frigidaire Refrigerator Screw
72241972905 Frigidaire Refrigerator Kickplate Grille Assembly
74218755402 Frigidaire Refrigerator Set Screw
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89WCI 241733901
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
100241993001 Frigidaire Refrigerator Left Crisper Cover Support
100CRISPER COVER SUPPORT
