FGHS2369KP2 07 – CABINET

FGHS2369KP2 07 – CABINET

Written by

in

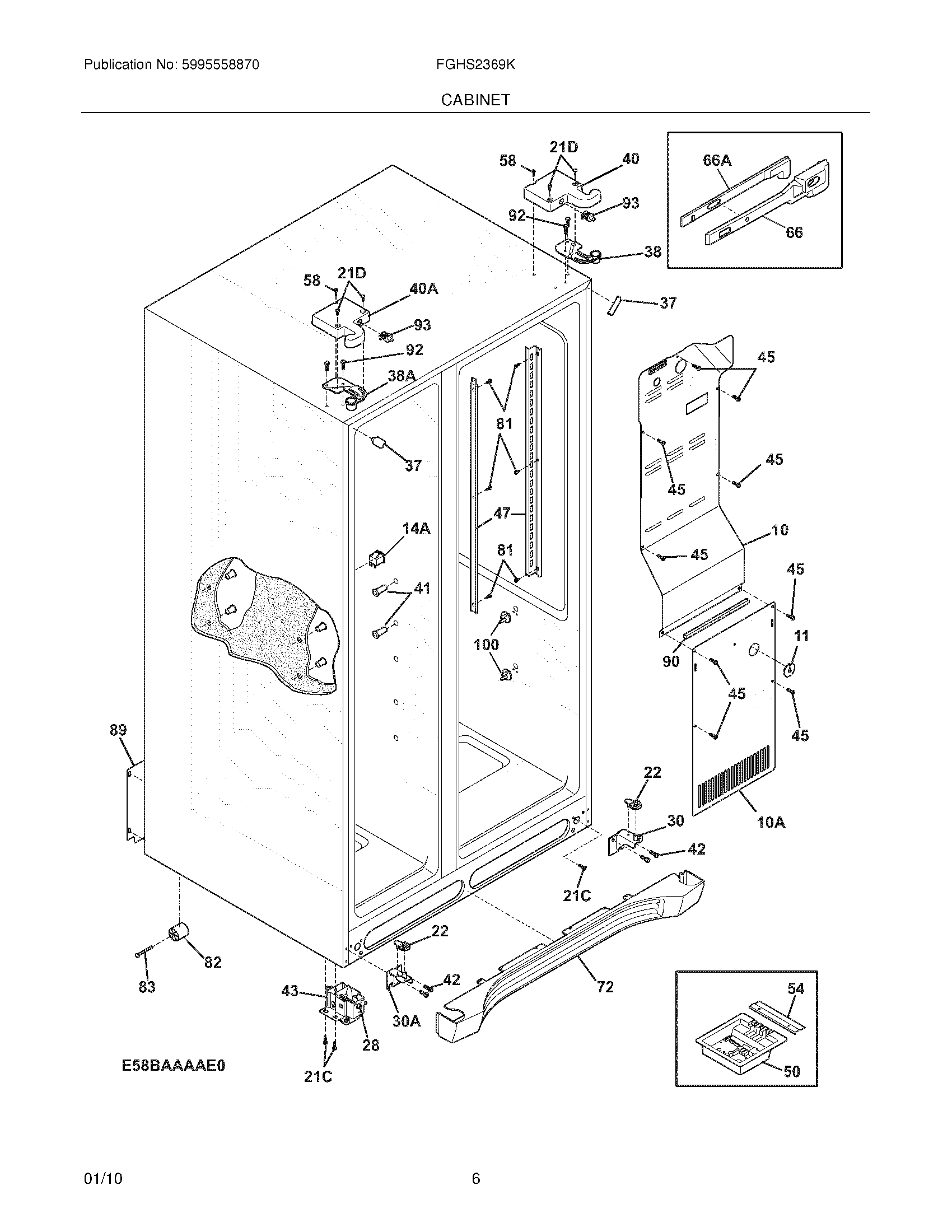

FGHS2369KP2 07 – CABINET

Products

Position	Product
NI	241835801 Frigidaire Refrigerator Wiring Harness
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	241852501 Frigidaire Refrigerator Clip
NI	241781601 Frigidaire Refrigerator Air Return Seal
NI	WCI 241867901
NI	241868101 Frigidaire Air Guide
NI	218755402 Frigidaire Refrigerator Set Screw
NI	241512807 Frigidaire Refrigerator Seal
NI	240396801 Frigidaire Refrigerator Tube Clamp
10	WCI 240435913
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
21D	241548003 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918002 Frigidaire Refrigerator Lower Hinge
30	241918001 Frigidaire Lower Door Hinge
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	WCI 241946702
40A	241891901 Frigidaire Refrigerator Wiring Harness
40	WCI 241946701
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	5303918498 Frigidaire Refrigerator Main Power Control Board
54	241532401 Frigidaire Refrigerator Channel
58	218781101 Frigidaire Handle Screw
66A	241756901 Frigidaire Refrigerator Housing-Damper
66	241756801 Frigidaire Refrigerator Damper-Meat Keeper
72	WCI 241972901
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 241733904
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911703 Frigidaire Refrigerator Switch
100	CRISPER COVER SUPPORT
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
