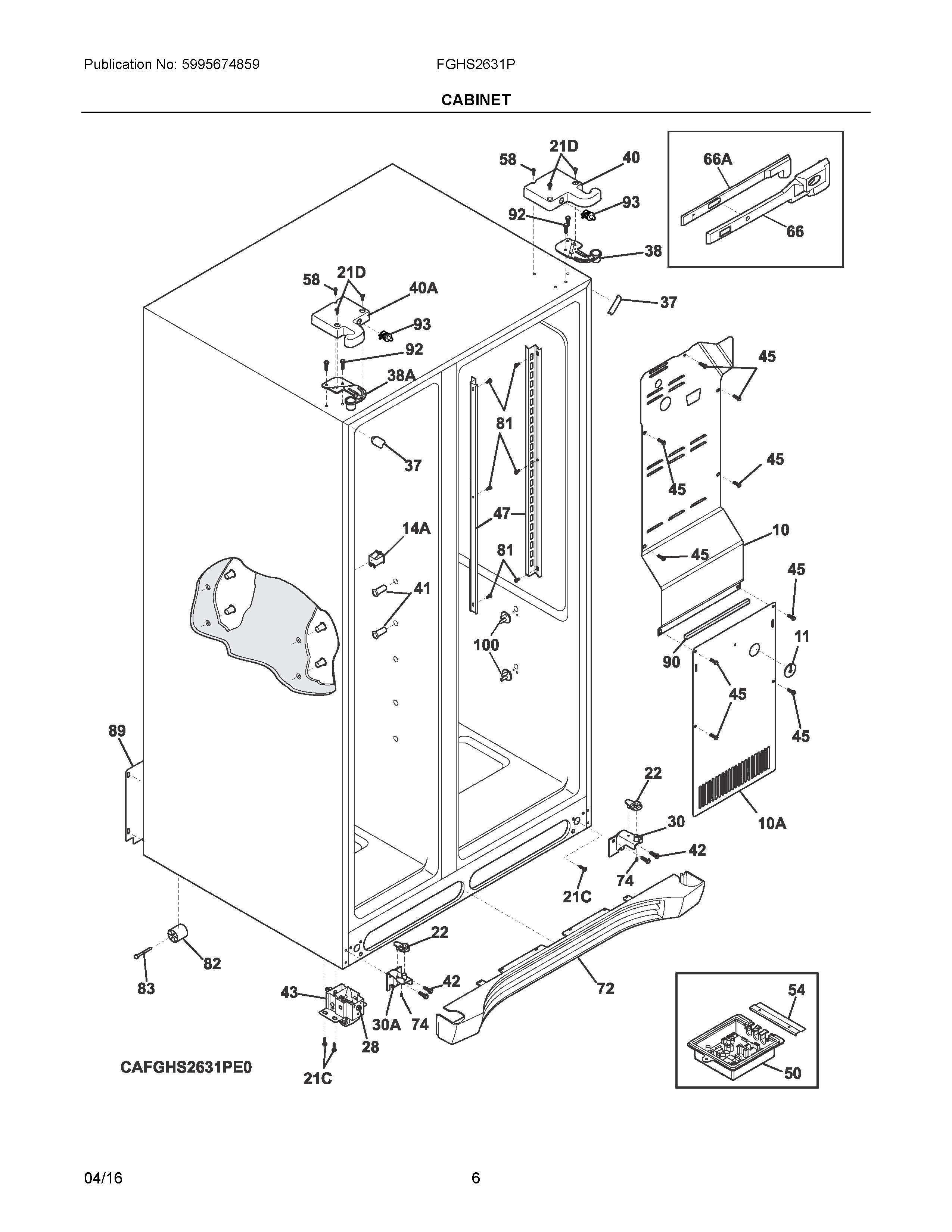

FGHS2631PP4A 04 – CABINET

FGHS2631PP4A 04 – CABINET

Written by

in

FGHS2631PP4A 04 – CABINET

Products

Position	Product
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	241891901 Frigidaire Refrigerator Wiring Harness
NI	241835801 Frigidaire Refrigerator Wiring Harness
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NI	241890601 Frigidaire Refrigerator Louver Assembly
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	241852502 Frigidaire Refrigerator Clip
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241868101 Frigidaire Air Guide
NIA	241512807 Frigidaire Refrigerator Seal
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
10	WCI 240435914
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918004 Frigidaire Lower Hinge Bracket
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40	WCI 241946701
40A	WCI 241946702
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513001 Frigidaire Refrigerator Shelf Mounting Channel
50	5304497976 Frigidaire Main Power Board Refrigerator
54	241532401 Frigidaire Refrigerator Channel
58	241548003 Frigidaire Refrigerator Screw
66	241756801 Frigidaire Refrigerator Damper-Meat Keeper
66A	241756901 Frigidaire Refrigerator Housing-Damper
72	WCI 241969401
74	218755402 Frigidaire Refrigerator Set Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911703 Frigidaire Refrigerator Switch
100	CRISPER COVER SUPPORT
