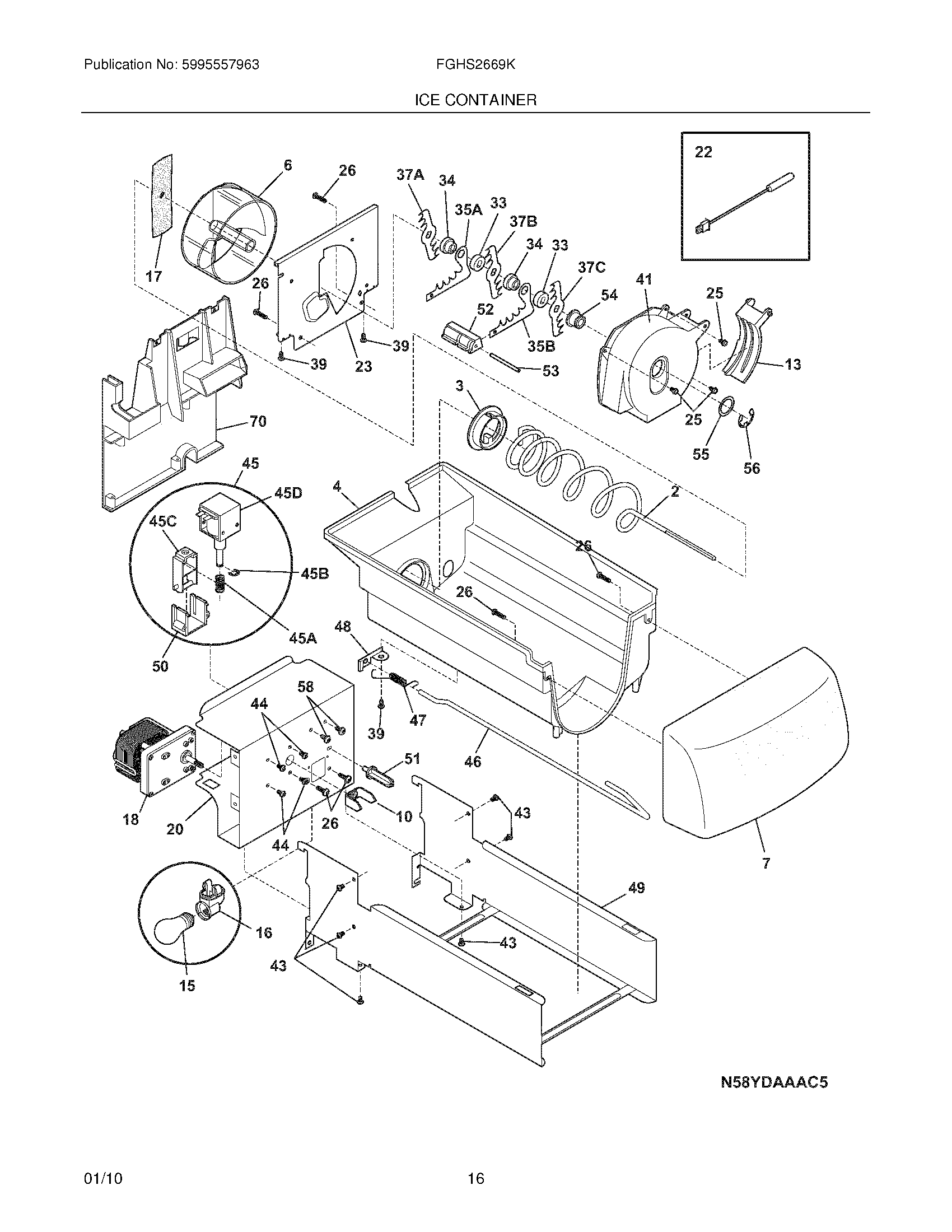

FGHS2669KP1 17 – ICE CONTAINER

FGHS2669KP1 17 – ICE CONTAINER

Written by

in

FGHS2669KP1 17 – ICE CONTAINER

Products

Position	Product
NI	WCI 241551602
NI	241522901 Frigidaire Refrigerator Electrical Harness
NI	WCI 241716801
NI	WCI 218817300
NI	241860810 Frigidaire Refrigerator Ice Container Assembly
2	241716101 Frigidaire Refrigerator Ice Auger
3	241685201 Frigidaire Refrigerator Drive Cam
4	241561302 Frigidaire Refrigerator Container
6	241685101 Frigidaire Refrigerator Ice Dispenser Drum
7	241561402 Frigidaire Refrigerator Front Ice Container
10	241726501 Frigidaire Refrigerator Drive Bar
13	241885001 Frigidaire Refrigerator Ice Crusher Housing
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	241684503 Frigidaire Ice Crusher Blade
18	242221501 Frigidaire Refrigerator Auger Motor
20	241675502 Frigidaire Refrigerator Motor Cover
22	240597220 Frigidaire Sensor
23	241684001 Frigidaire Refrigerator Plate-Front
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	241690602 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
35B	241684203 Frigidaire Refrigerator Fixed Blade
35A	241684303 Frigidaire Refrigerator Fixed Blade
37C	241684109 Frigidaire Ice Crusher Blade
37A	241684107 Frigidaire Refrigerator Ice Crusher Blade
37B	241684108 Frigidaire Washer Poly V-Belt
39	241690501 Frigidaire Refrigerator Screw
43	215005101 Frigidaire Refrigerator Screw
44	218359202 Frigidaire Refrigerator Screw
45B	241676001 Frigidaire Refrigerator E-Ring Solenoid
45	241675704 Frigidaire Refrigerator Solenoid Assembly
45C	241676101 Frigidaire Refrigerator Solenoid-Actuator
45D	241675803 Frigidaire Refrigerator Freezer Ice Dispenser Solenoid
45A	241675902 Frigidaire Refrigerator Solenoid Spring
46	241716002 Frigidaire Refrigerator Control Rod
47	241731801 Frigidaire Refrigerator Spring-Control Rod
48	241684602 Frigidaire Refrigerator Control Rod Bracket
49	241734501 Frigidaire Refrigerator Rail
50	241675601 Frigidaire Refrigerator Solenoid Guide
51	WCI 241676301
52	241684901 Frigidaire Refrigerator Spacer-Fixed Blades
53	241690402 Frigidaire Refrigerator Pin-Spiral
54	241685001 Frigidaire Auger Nut
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
70	WCI 241561502
