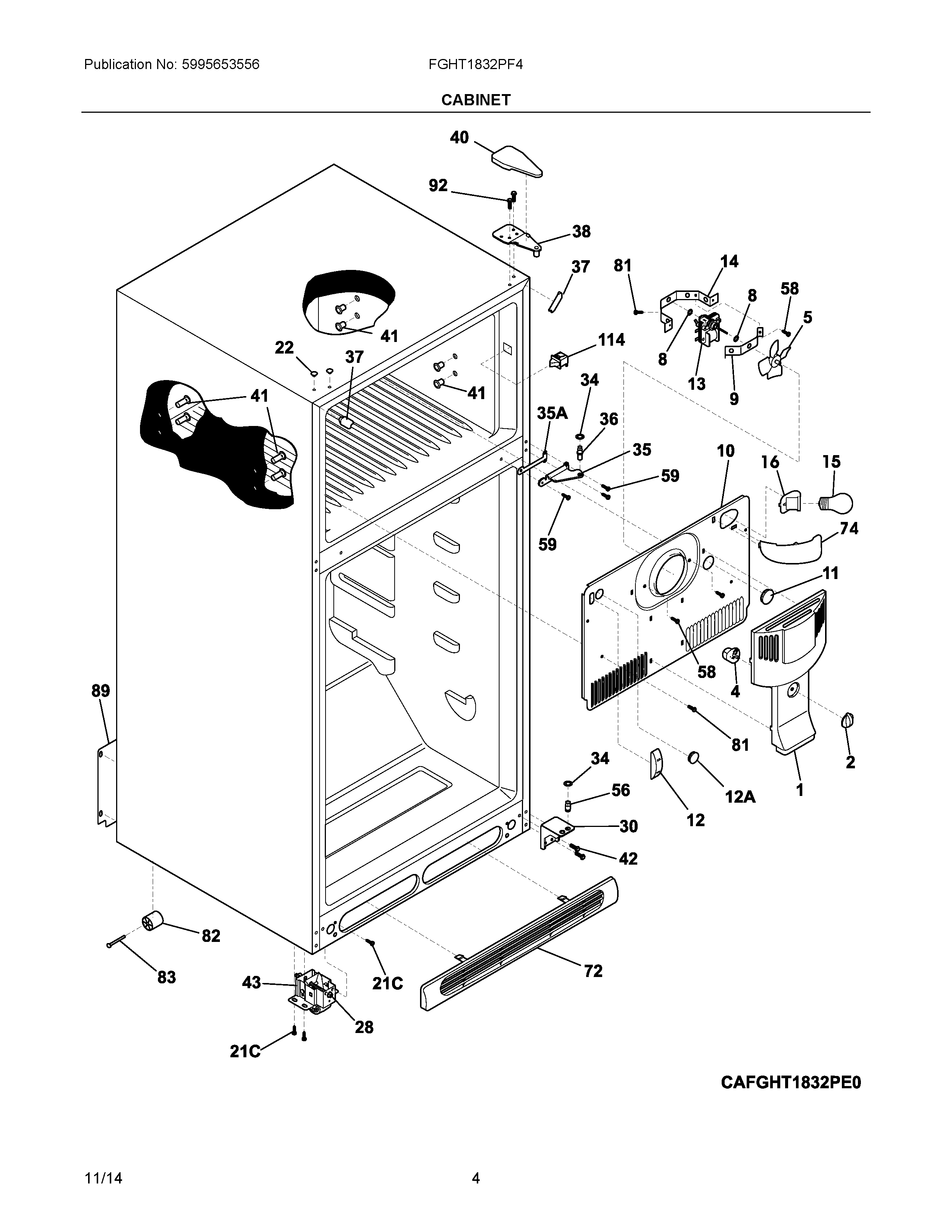

FGHT1832PF4 03 – CABINET

Products

Position	Product
NIB	218515401 Frigidaire Refrigerator Clip
NIA	241500305 Frigidaire Refrigerator Screw
NIA	5304434189 Frigidaire Refrigerator Seal Kit
NIAA	241586701 Frigidaire Refrigerator Plug
NI	218990901 Frigidaire Clip
NIA	215474201 Frigidaire Refrigerator Washer
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	WCI 241652216
11	5303208309 Frigidaire Refrigerator Plug Hole
12	242193602 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
13	242077705 Frigidaire Refrigerator Fan Motor
15	5304511738 Frigidaire Refrigerator Light Bulb
16	218906802 Frigidaire Light Lamp Socket
21C	218252201 Frigidaire Refrigerator Screw
22	215774922 Frigidaire Refrigerator Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240313806
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	COVER-UPPER HINGE, GRAY
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	241839414 Frigidaire Refrigerator Grille/Kickplate
74	WCI 240354303
81	5304455650 Frigidaire Refrigerator Screw
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	241554901 Frigidaire Refrigerator Light/Lamp Switch
