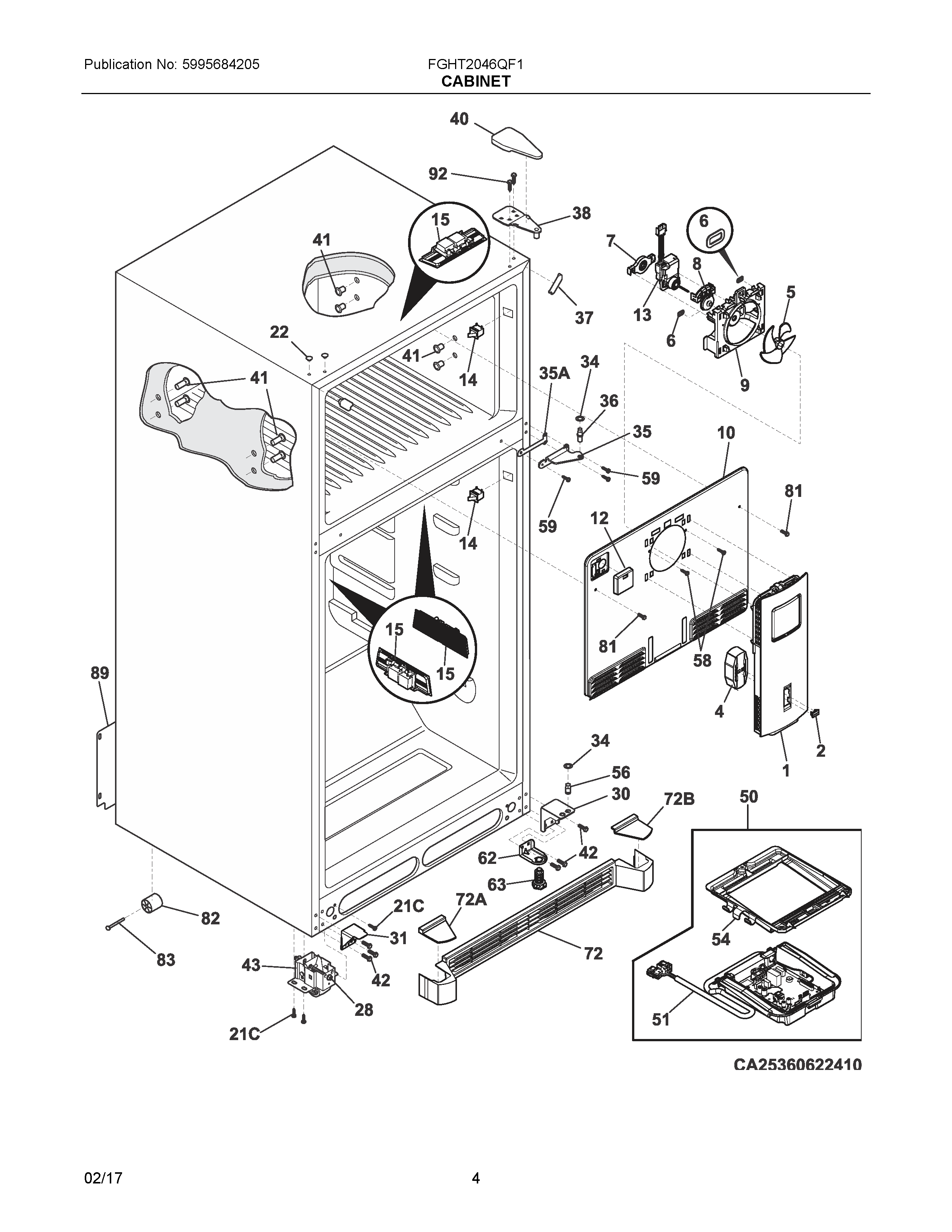

FGHT2046QF1 03 – CABINET

FGHT2046QF1 03 – CABINET

Written by

in

FGHT2046QF1 03 – CABINET

Products

Position	Product
NI	218990901 Frigidaire Clip
NIA	241586701 Frigidaire Refrigerator Plug
NIA	240568606 Frigidaire Refrigerator Coil Cover Seal
NIB	5304453707 Frigidaire Oven Screw
NIA	WCI 5304498949
NIC	5304521789 Frigidaire Refrigerator Harness
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	241500303 Frigidaire Refrigerator Screw
NIA	218515401 Frigidaire Refrigerator Clip
NI	240494001 Frigidaire Refrigerator Plug Button
1	5303918833 Frigidaire Refrigerator Cover Assembly Kit
2	242229401 Frigidaire Refrigerator Knob
4	242294704 Frigidaire Refrigerator Fan Cover & Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8	242237301 Frigidaire Grommet
9	242229301 Frigidaire Refrigerator Shroud Bracket
10	242239404 Frigidaire Refrigerator Cover
12	242249201 Frigidaire Refrigerator Cover
13	242077705 Frigidaire Refrigerator Fan Motor
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
15	LIGHT ASSEMBLY, LED, W/LENS & BOARD
21C	218252201 Frigidaire Refrigerator Screw
22	215774922 Frigidaire Refrigerator Plug
28	5304499445 Frigidaire Refrigerator Roller Assembly
30	240314014 Frigidaire Refrigerator Lower Hinge Bracket
31	SUPPORT, COVER, TOE GRILLE
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	BRACKET-CTR HINGE, GRAY
35A	240336804 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	COVER-UPPER HINGE, GRAY
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578907 Frigidaire Screw
50	5303918679 Frigidaire Refrigerator Control and Housing
51	809170801 Frigidaire Refrigerator Harness
54	807854301 Frigidaire Refrigerator Support
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	240433204 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
62	BRACKET, ANTI TIP, BLACK
63	5304498951 Frigidaire Refrigerator Screw
72B	5304498923 Frigidaire Refrigerator Cover
72	5304498916 Frigidaire Refrigerator Toe Grille
72A	5304498922 Frigidaire Refrigerator Cover Assembly
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
