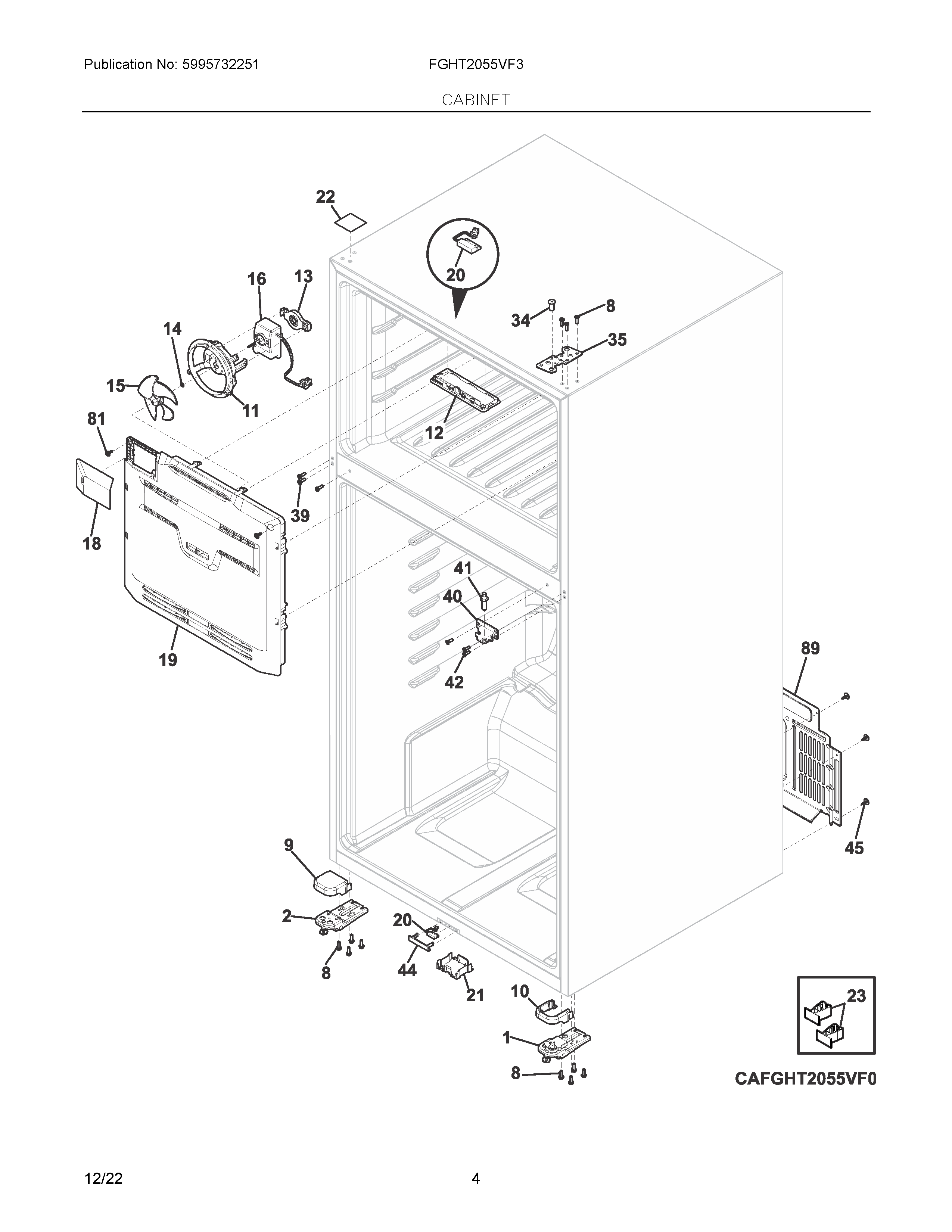

FGHT2055VF3 03 – CABINET

Products

Position	Product
NIA	5304524219 Frigidaire Refrigerator Spacer
NI	WCI 30534600
1	5304528866 Frigidaire Refrigerator Assembly-Hinge
2	5304519776 Frigidaire Hinge Assembly
9	5304522221 Frigidaire Refrigerator Cover
10	5304522246 Frigidaire Refrigerator Cover
11	5304519752 Frigidaire Refrigerator Shroud
12	LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN
13	242287501 Frigidaire Refrigerator Grommet
14	215474201 Frigidaire Refrigerator Washer
15	242219302 Frigidaire Refrigerator Evaporator Fan Blade
16	242219206 Frigidaire Refrigerator Motor
18	5304519662 Frigidaire Refrigerator Cover
19	5304519654 Frigidaire Refrigerator Cover Assembly
20	5304527992 Frigidaire Freezer Wire Harness with Reed Switch
21	5304523792 Frigidaire Refrigerator Cover
22	5304524036 Frigidaire Label
23	CLIP
34	5304528871 Frigidaire Pin
35	5304528870 Frigidaire Hinge
39	5304522253 Frigidaire Screw
40	5304522100 Frigidaire Refrigerator Hinge
41	5304519642 Frigidaire Refrigerator Pin
42	5304522279 Frigidaire Screw
44	5304524130 Frigidaire Cover Assembly
45	241500305 Frigidaire Refrigerator Screw
81	5304519765 Frigidaire Refrigerator Screw
89	5304522114 Frigidaire Refrigerator Access Cover
