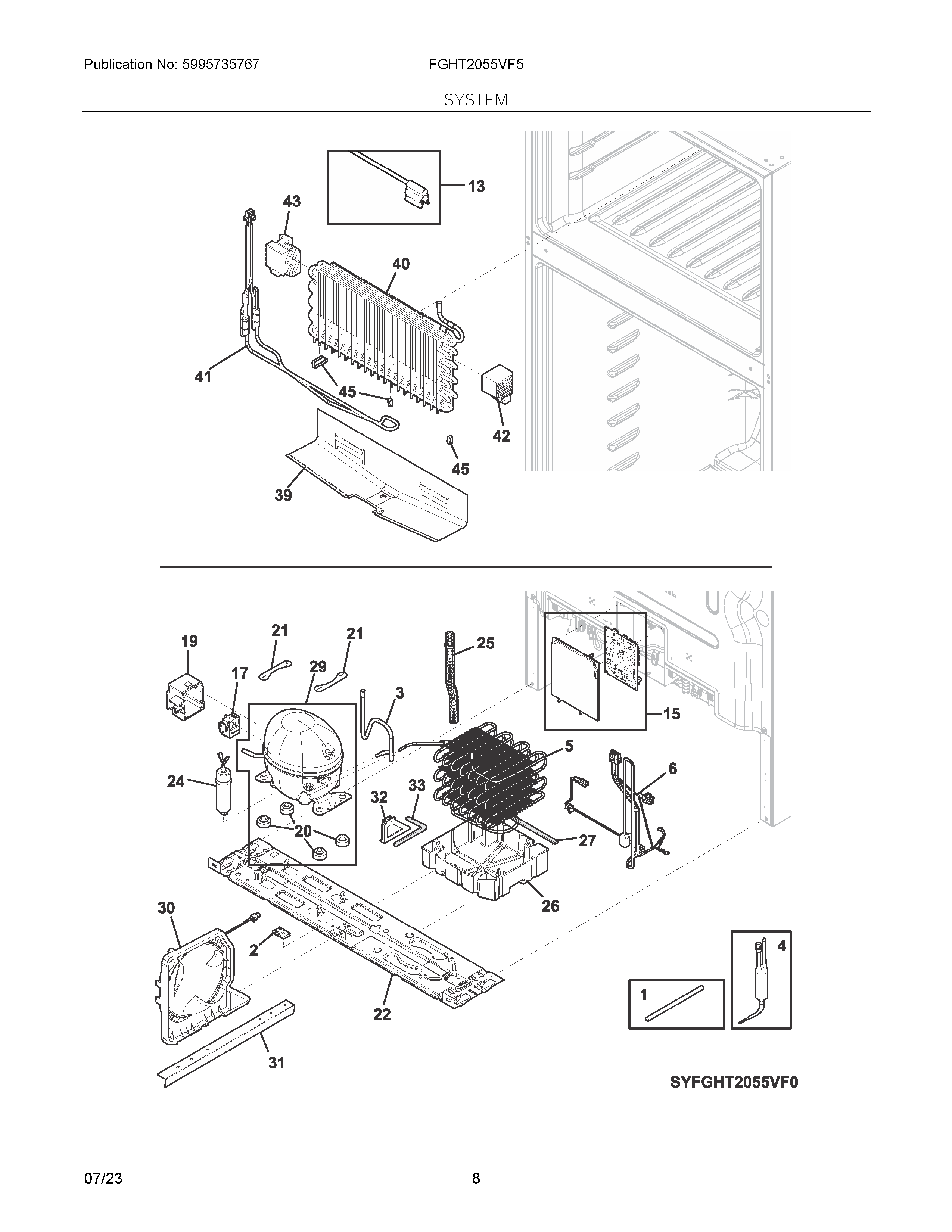

FGHT2055VF5 05 – SYSTEM

Products

PositionProduct
NI240433204 Frigidaire Refrigerator Screw
NI241500305 Frigidaire Refrigerator Screw
NIA5304519765 Frigidaire Refrigerator Screw
15304522289 Frigidaire Refrigerator Tube
25304456288 Frigidaire Refrigerator Clamp
35304531532 Frigidaire Refrigerator Tube
4A19676501 Frigidaire Refrigerator Drier Filter
55304530007 Frigidaire Refrigerator Condenser
65304519649 Frigidaire Refrigerator Harness
135303918645 Frigidaire Refrigerator Thermistor Kit
155304528864 Frigidaire Refrigerator PC Board Assembly
17STARTER
195304528888 Frigidaire Refrigerator Cover
205304522323 Frigidaire Refrigerator Grommet
215304524607 Frigidaire Clamp
225304519667 Frigidaire Refrigerator Base Assembly
245304528894 Frigidaire Capacitor
255304519743 Frigidaire Refrigerator Tube
265304519674 Frigidaire Refrigerator Pan
275304519750 Frigidaire Seal
295303918884 Frigidaire Refrigerator Compressor Kit with Electricals
305304522173 Frigidaire Refrigerator Fan Assembly
31BAFFLE, DIVIDER, HIGH SIDE
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
395304519679 Frigidaire Refrigerator Trough
405304522324 Frigidaire Refrigerator Evaporator
415304522325 Frigidaire Refrigerator Heater
425304522326 Frigidaire Refrigerator Support
435304522327 Frigidaire Refrigerator Support
455308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
