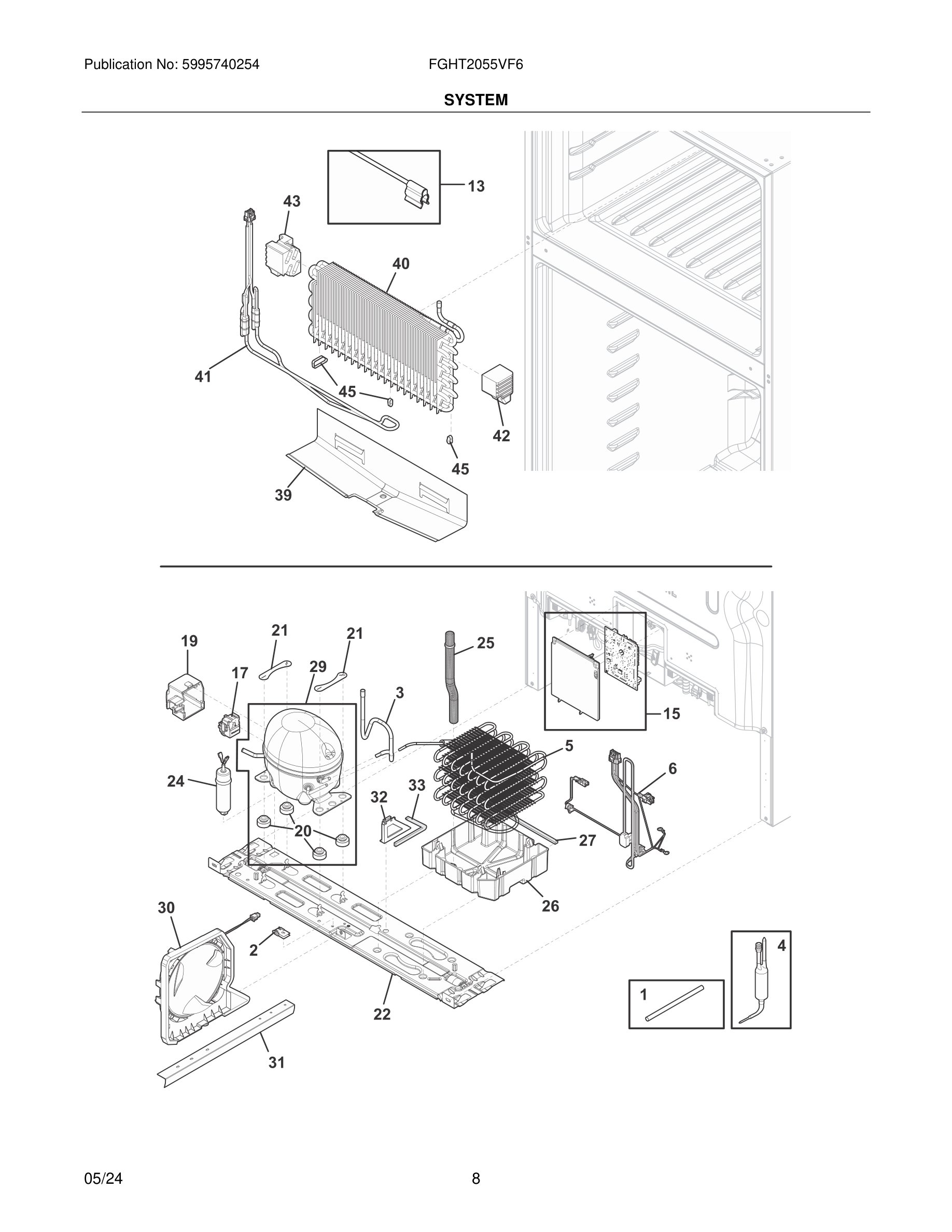

FGHT2055VF6 09 – SYSTEM

Products

PositionProduct
*240433204 Frigidaire Refrigerator Screw
*241500305 Frigidaire Refrigerator Screw
1#5304522289 Frigidaire Refrigerator Tube
25304456288 Frigidaire Refrigerator Clamp
3#5304531532 Frigidaire Refrigerator Tube
4#A19676501 Frigidaire Refrigerator Drier Filter
5#5304530007 Frigidaire Refrigerator Condenser
6#5304519649 Frigidaire Refrigerator Harness
13#5303918645 Frigidaire Refrigerator Thermistor Kit
15#S/A-MAINBOARD & HOU
15*5304519765 Frigidaire Refrigerator Screw
17#5304529285 Frigidaire Refrigerator Starter
195304528888 Frigidaire Refrigerator Cover
205304522323 Frigidaire Refrigerator Grommet
215304524607 Frigidaire Clamp
225304519667 Frigidaire Refrigerator Base Assembly
24#5304528894 Frigidaire Capacitor
255304519743 Frigidaire Refrigerator Tube
265304519674 Frigidaire Refrigerator Pan
275304519750 Frigidaire Seal
29#5303918884 Frigidaire Refrigerator Compressor Kit with Electricals
30#5304522173 Frigidaire Refrigerator Fan Assembly
31BAFFLE, DIVIDER, HIGH SIDE
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
395304519679 Frigidaire Refrigerator Trough
40#5304522324 Frigidaire Refrigerator Evaporator
41#5304522325 Frigidaire Refrigerator Heater
425304522326 Frigidaire Refrigerator Support
435304522327 Frigidaire Refrigerator Support
455308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
